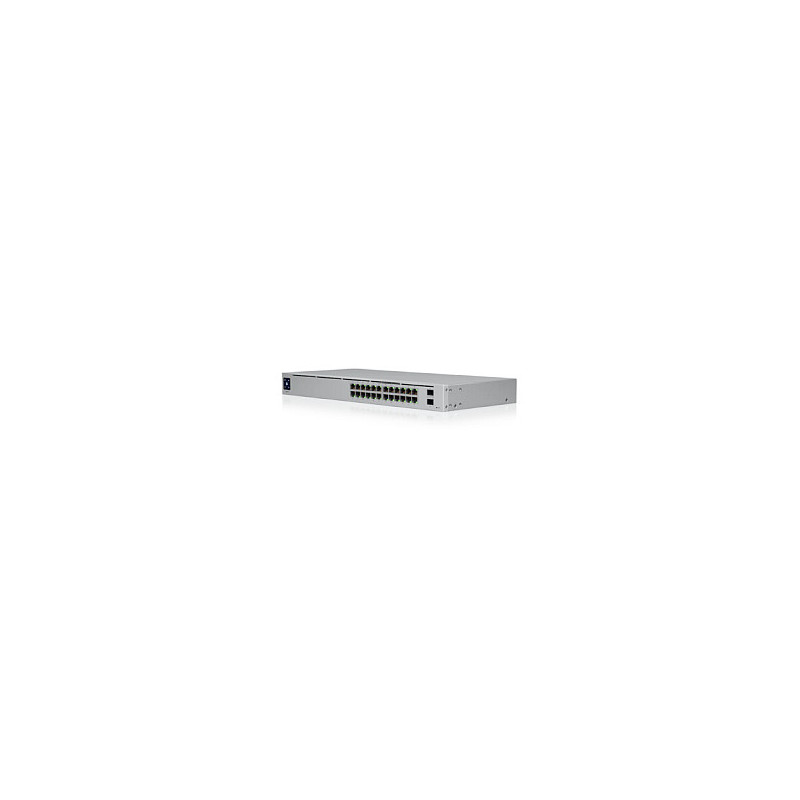

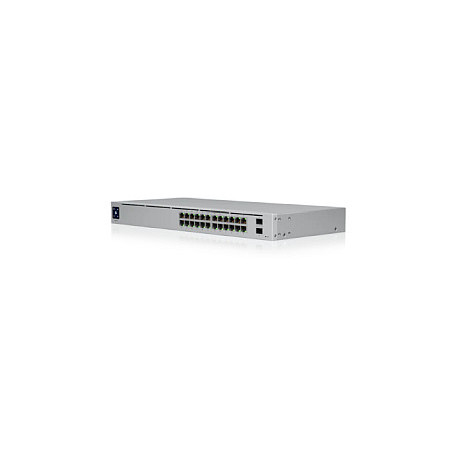

Ubiquiti UniFi Managed 24-port Gigabit Switch, 16-port PoE+, 2×SFP, Rackmount, 95W (USW-24-PoE Gen2)

- Expand and power your network with the UniFi PoE Switch, part of the Ubiquiti UniFi Enterprise System
- The Switch 24 PoE (USW 24 PoE) is a fully managed switch with (24) GbE RJ45 ports, including (16) GbE, PoE+ ports, and (2) 1G SFP ports
- The versatile USW 24 PoE provides Gigabit PoE links to Ethernet devices while also supplying Gigabit fiber uplink options fit for an enterprise network
- The switch also offers an extensive suite of Layer 2 switching protocols, including port-specific operation modes (switching, mirroring, or aggregate), and features a 1.3" LCM color touchscreen that concisely displays key system and connection insights

FIBER CONNECTIVITY
- SFP ports enable network uplinks of up to 1 Gbps

FANLESS, SILENT COOLING
- The UniFi PoE Switch features fanless, silent thermal cooling*, so it can be deployed in areas where fan noise would be distracting
* Fanless switches must not be stacked

SWITCHING PERFORMANCE
- The UniFi PoE Switch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss

802.3af/at PoE
- PoE support simplifies your network infrastructure and cabling
- PoE ports offer 802.3af/at to power your PoE devices, such as UniFi APs and cameras

Features
- 1.3" LCM color touchscreen with AR switch management
- 16× GbE, PoE+ RJ45 ports
- 8× GbE RJ45 ports
- 2× 1G SFP ports
- 95W total PoE supply
- Fanless, silent cooling

Specifications
- Interfaces:
* Networking:
24× 10/100/1000 RJ45 Ports
2× 1G SFP Ethernet Ports
* Management: Ethernet In-Band
- Total Non-Blocking Throughput: 26 Gbps
- Switching Capacity: 52 Gbps
- Forwarding Rate: 38.69 Mpps
- Power Method: 100-240VAC, 50/60 Hz, Universal Input
- Power Supply: AC/DC, Internal, 120W
- Voltage Range: 100 to 240VAC
- Max Power Consumption (Excluding PoE Output): 25W
- LEDs:
* RJ45 Data Ports: PoE; Speed/Link/Activity
* SFP Data Ports: Link/Activity
- ESD/EMP Protection: Air: +/-16 kV, Contact: +/-12 kV
- Shock and Vibration: ETSI300-019-1.4 Standard
- Operating Temperature: -5C to 40C (23F to 104F)
- Operating Humidity: 10% - 90% Noncondensing
- Certifications: CE, FCC, IC
- Dimensions: 442.4×200×43.7 mm
- Weight: 3.00 kg (3.09 kg with brackets)

PoE
- Total Available PoE: 95W
- PoE Interfaces Ports 1-16: PoE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-)
- Max. PoE Wattage per Port by PSE 802.3at: 32W
- Voltage Range:
* 802.3af Mode: 44-57V
* 802.3at Mode: 50-57V
