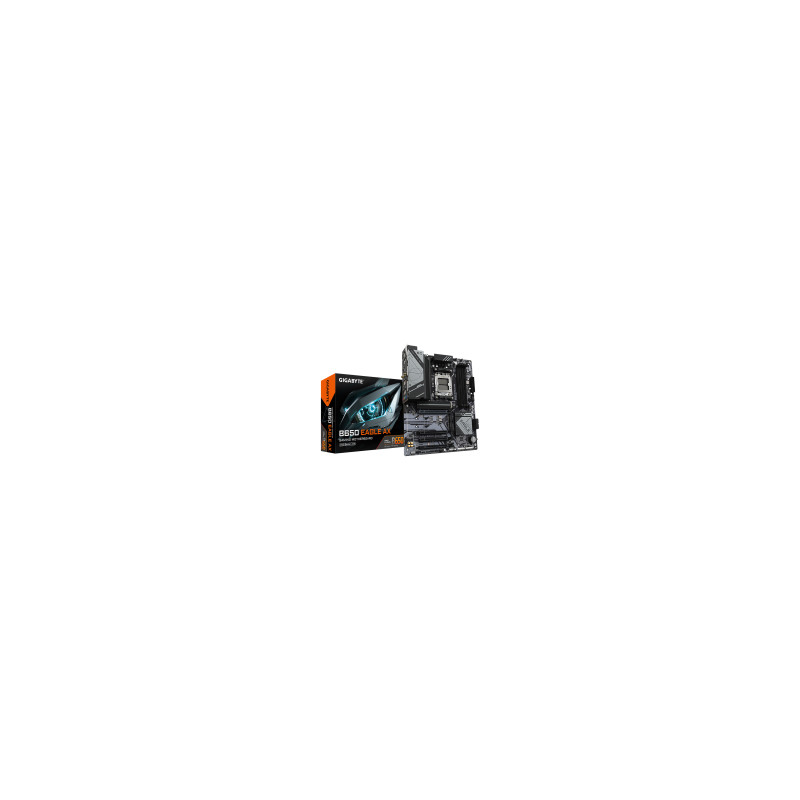

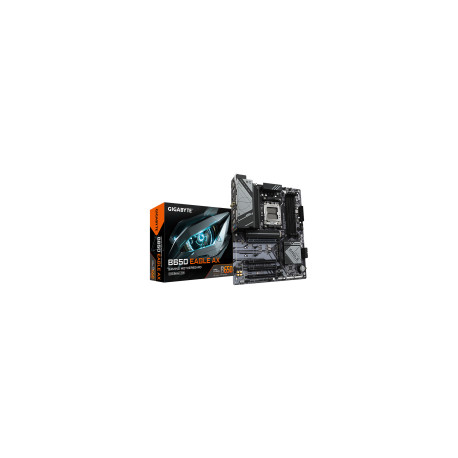

GIGABYTE B650 EAGLE AX

Specifikacije

HDMI

1 (HDMI (Type A))

Bluetooth

Bluetooth 5.3

Wi-Fi

IEEE 802.11ax Wi-Fi 6E

Brzina memorije

7600MHz

Audio izlaz

7.1 Channel Surround, 3 (3.5-mm minijack)

Vrsta memorije

DDR5 SDRAM

Količina u pakiranju

1

Format memorije

DIMM 288-pin

CPU podnožje

Socket AM5

Chipset

AMD B650

LAN

1 (RJ-45)

USB 2.0

6 (USB 2.0 (type A))

PS/2

1

Mainboard Features

Fan Speed Control

DisplayPort

1

Antenna

2

Plug-in-card

Wi-Fi Controller: 1 x M.2 (Key E)

USB 3.2 Gen 1

1 (USB 3.2 (type C))

USB 3.2 Gen 2

2 (USB 3.2 (type A))

Format

ATX

Vrsta

Integriran

Podržani operativni sustavi

Microsoft Windows 10 64-bit, Microsoft Windows 11 64-bit

PCI Express x16

4

BIOS

Gigabyte Q-Flash, WfM 2.0 Support, PnP 1.0a Support, UEFI, SMBIOS 2.7 Support, DMI 2.7 Support, ACPI 5.0 Support, 256 Mb Flash ROM

Širina (mm)

305 mm

Visina (mm)

244 mm

CPU Max. količina

1

Max. kapacitet memorije

192 GB

Količina utora

4

Značajke memorije

Unbuffered, Dual Rank, Single Rank, XMP, AMD EXPO

Audio standard

HD audio

Podržana brzina

Gigabit Ethernet/Fast Ethernet/Ethernet

Jamstvo u Hrvatskoj

Da

Jamstveni rok (mjeseci)

36 mjeseci(a)

Validacija jamstva

Serijski broj

Bruto težina (kg)

1.969 kg

Neto težina (kg)

1.5 kg

Bruto težina kutije (kg)

2 kg

Količina u kutiji

1

Vrsta pakiranja

Maloprodajno

EAN kod

4719331860158

CPU podrška

AMD Ryzen 7000 Series, AMD Ryzen 8000 Series

Provjera pogrešaka

non-ECC

Integrirani audio

Da

Integrirani LAN

Da

BIOS vrsta

AMI

Težina kartona

0.3 kg

Težina plastike

0.2 kg

Integriran

Storage Controller: Supports: Level 0, Level 1, Level 10, PCI Express 5.0 x4 (2 x M.2 (Key M)), Storage Controller: Supports: Level 0, Level 1, Level 10, PCI Express 4.0 x2 (2 x M.2 (Key M))

Nadzor

CPU Temperature, CPU Voltage, System Temperature, System Voltage

Gospodarski subjekt u EU / autorizirani predstavnik

Giga-Byte Technology BV

Adresa

Steenoven 24, 5626 DK Eindhoven, Netherlands

Email adresa

[email protected]

IntegriranIntegriran

Storage ControllerStorage Controller: Supports: Level 0, Level 0, Level 1, Level 1, Level 10, Level 10, SATA III-600SATA III-600 (4)
