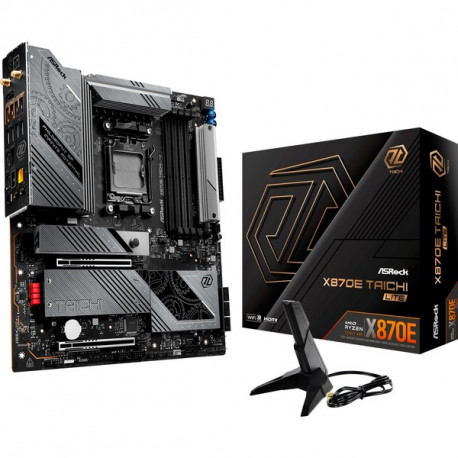

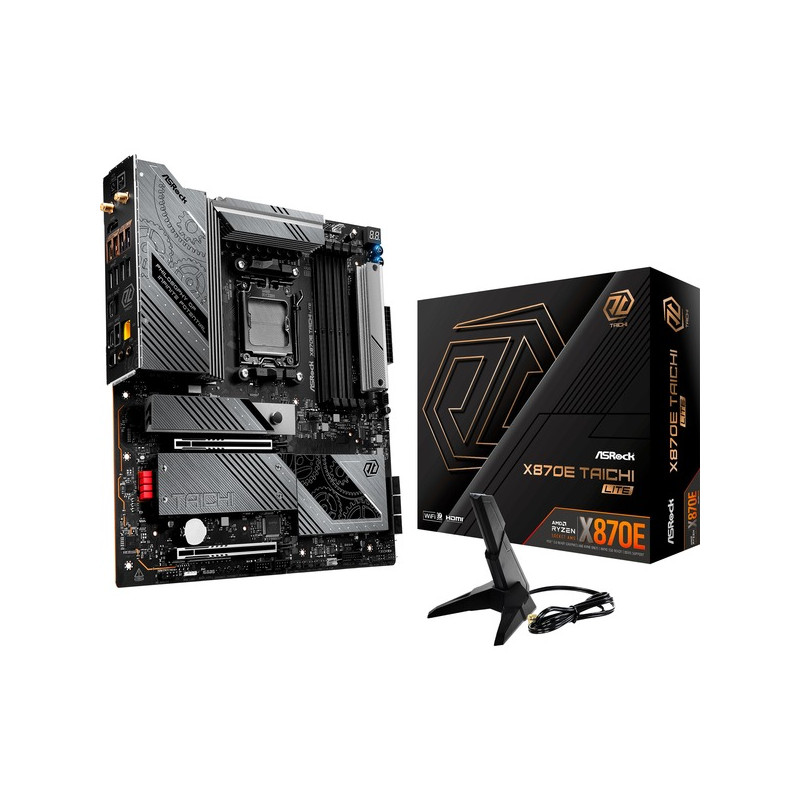

ASRock X870E Taichi Lite
90-MXBPA0-A0UAYZ
Novi proizvod
10 - 12 radnih dana
The ASRock X870E Taichi is based on the AMD-X870E chipset and supports AMD processors for the AM5 socket. It has four DDR5 slots for up to 256 GB of memory
Količina: 7 raspoloživa (kod dobavljača)
- Odstrani ovaj proizvod iz najdražih proizvoda
- Dodaj ovaj proizvod u najdraže proizvode
- Ispis
Više informacija
Details
| Type | Mainboard | ||
| EAN | 4710483947445 | ||
| Manufacturer no. | 90-MXBPA0-A0UAYZ | ||
| Base | AM5 | ||
| Max. supported CPUs | 1 | ||
| Operating system | Support | Windows 10 ready, Windows 11 ready | |
| Processor | Supported models | Ryzen 5 7xxx (Raphael), Ryzen 5 7xxxX (Raphael), Ryzen 5 7xxxF (Raphael), Ryzen 5 8xxxG (Phoenix), Ryzen 5 9xxxX (Granite Ridge), Ryzen 7 7xxx (Raphael), Ryzen 7 7xxxX (Raphael), Ryzen 7 7xxxX3D (Raphael), Ryzen 7xxxX3D (Raphael), Ryzen 7xxxX3D (Raphael), Ryzen 7xxxX3D (Raphael), Ryzen 7xxxX3D (Raphael), Ryzen 7xxxX3D (Raphael), Ryzen 7xxxX3D (Raphael), Ryzen 7xxxX (Raphael), Ryzen 7 7xxxX3D (Raphael), Ryzen 7xxxX (Raphel), Ryzen 7xxxX (Raphael), Ryzen 7xxxX3D (Raphael), Ryzen 7 7xxxX3D (Raphael), Ryzen 7xxxxxxxX (Granite Ridge), Ryzen 9 7xxxx (Raphael), Ryzen 9 7xxxxX (Raphael), Ryzen 9 7xxxxX3D (Raphael), Ryzen 9xxxX (Granite Ridge) | |
| Chipset | AMD X870E | ||
| Slots | PCIe x16 | 2x (thereof: 1x PCIe x16, 1x PCIe x8) | |
| BIOS | 256Mb Flash ROM UEFI AMI BIOS | ||
| Form factor | E-ATX | ||
| Power supply | ATX12V (24-pin + 2x 8-pin) | ||
| Memory | maximum | 256 GB | |
| Number of plinths | 4x DDR5 | ||
| Supported standards | DDR5 8200 / 5200 / 4800 / 4400 | ||
| Channels | 2 | ||
| Maximum memory storage space | 8 | ||
| Connections (external) | USB-A 3.2 Gen 2 (10 Gbit/s) | 5 5 | |
| USB-A 3.2 Gen 1 (5 Gbit/s) | 3 | ||
| USB4 | 2 | ||
| USB-A 2.0 | 2 | ||
| HDMI | 1 | ||
| Microphone | 1 | ||
| Line-out | 1 | ||
| S/PDIF-Out (optical) | 1 | ||
| RJ-45 | 1 | ||
| Bluetooth | Yes | ||
| Wi-Fi | Yes | ||
| Connections (internal) | SATA | 6 6 | |
| M.2 | 4 | ||
| M.2 Module Key | M | ||
| M.2 interface | PCIe | ||
| M.2 length | 80 - 80 mm | ||
| RGB LED Header | 1 | ||
| addressable RGB LED Header | 3 | ||
| USB-C 3.2 Gen 2x2 (20 Gbit/s) | 1 | ||
| 4-pole PWM fan | 9 9 | ||
| Connections (optional) | USB 3.2 Gen 1 (5 Gbit/s) | 4 | |
| USB 2.0 | 4 | ||
| RGB standard | RGB LED | ||
| SATA controller | AMD X870E | ||
| directly usable RAID level | 0, 1, 10 | ||
| USB controller | AMD X870E | ||
| Onboard graphics | The graphic connections of the motherboard can only be used when using a CPU with an integrated graphic chip. | ||
| LAN | Realtek 5Gb Ethernet | ||
| Wi-Fi 7 + Bluetooth 5.4 | |||
| Features | 2x USB4 DisplayPort Video outputs | Support for DisplayPort 1.4 and HDR. | ||
| Further information | To support the latest processor cores, a BIOS update may be required. | ||
| Accessories | available | 4 x SATA data cable, 1 x ASRock WiFi 2.4/5/6 GHz antenna, 3 x thermal cable | |
| Dimensions | Width: 267 mm x height: 305 mm | ||
