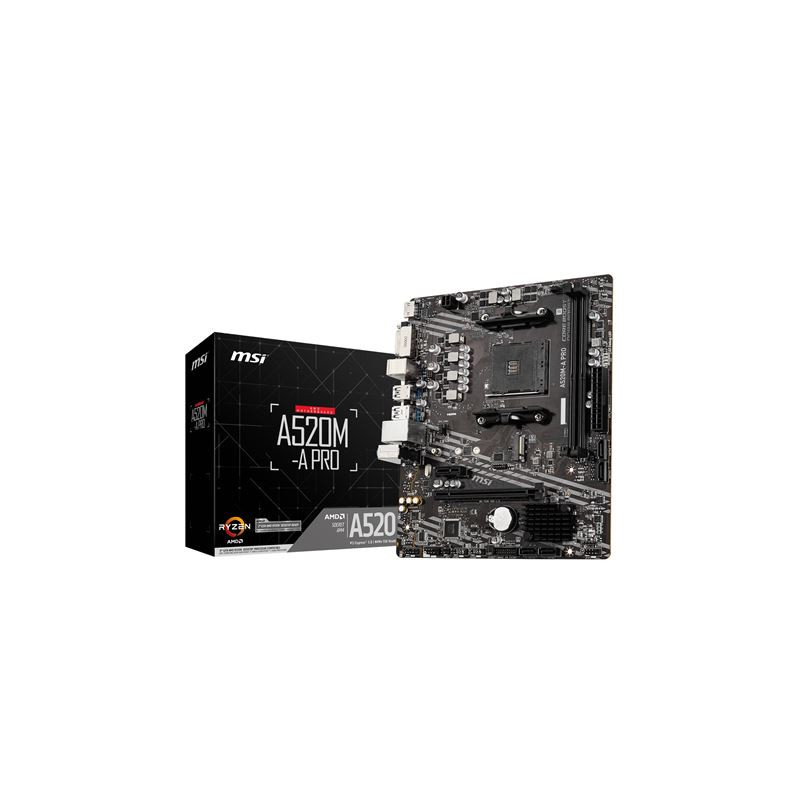

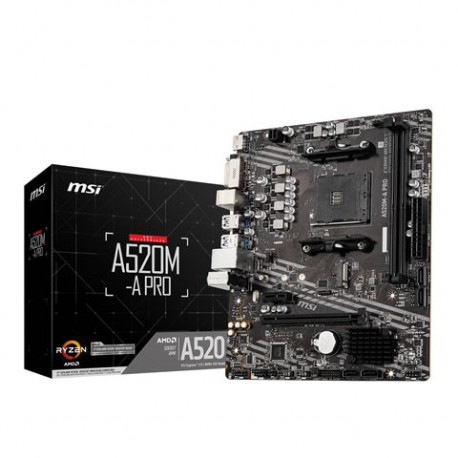

MBO AM4 MSI A520M-A PRO

Specifikacije

Format matične ploče

mATX

Vrsta memorije

DDR4

HDMI

1

Broj utora

2

CPU

AMD Ryzen 3, AMD Ryzen 5, AMD Ryzen 7

Socket

AM4

USB 2.0

2

DVI

1

USB 3.0

2

PCI

n/a

Serial

n/a

Parallel

n/a

Audio

8-kanalni audio

SATA II

n/a

M.2

1

Mreža

1x 10/100/1000 Ethernet

USB 3.1

1

RAID

0, 1

Display Port

n/a

Takt memorije [MHz]

2933, 3200, 3466, 3600

RJ45

1

Chipset (N)

AMD A520

BUS[MHz]

1600

Max. memorije [GB]

64

AGP 4x/8x

n/a

PCIe 3.0 x16

1

PCIe x16

n/a

PCIe x8

n/a

PCIe x4

n/a

PCIe x1

1

PCI-X

n/a

PATA

n/a

SATA3

4

PS/2 mouse

1

PS/2 keyboard

1

D-sub

n/a

S/PDIF Out

n/a

4-pin ATX 12V Power

1

8-pin ATX 12V Power

n/a

20-pin ATX Power

Y

24-pin ATX Power

Y

Front panel audio

n/a

Chasis Intrusion

n/a

CD Audio In

n/a

Chasis Fan Power

1

CPU Fan Power

1

WLAN connector

n/a

Podrška za integrirani grafičk

Y

SATA Express

n/a

U.2

n/a

USB 3.2

4

PCIe 5.0 x16

0
