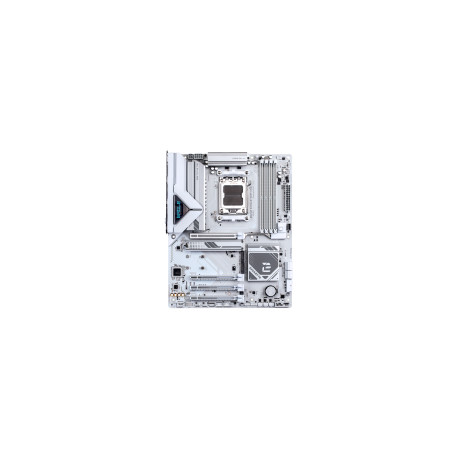

GIGABYTE Mainboard Desktop B850 EAGLE WF7 ICE (AM5, 4x DDR5 256GB, 1x PCI-E 5.0 x16x16, 1x PCI-E 4.0

Specifikacije

HDMI

1 (HDMI (Type A))

Bluetooth

Bluetooth 5.4

Wi-Fi

IEEE 802.11be Wi-Fi 7

Brzina memorije

5200MHz(PC5-41600)

Audio izlaz

3 (3.5-mm mini jack)

Vrsta memorije

DDR5 SDRAM

Količina u pakiranju

1

Format memorije

DIMM 288-pin

CPU podnožje

Socket AM5

Chipset

AMD B850

LAN

1 (RJ-45)

USB 2.0

4 (USB 2.0 (type A))

PS/2

1

Power Connectors Type

24+8+4 pin

Mainboard Features

Fan Speed Control

DisplayPort

1

Antenna

2

Plug-in-card

Wi-Fi Controller:Realtek RTL8922AE

PCI Express 3.0 x1

2

USB 3.2 Gen 1

1 (USB 3.2 (type C)) 2 (USB 3.2 (type A))

USB 3.2 Gen 2

2 (USB 3.2 (type A))

Format

ATX

Vrsta

Integriran

Podržani operativni sustavi

Microsoft Windows 11 64-bit

BIOS

Gigabyte Q-Flash WfM 2.0 Support PnP 1.0a Support UEFI SMBIOS 2.7 Support DMI 2.7 Support ACPI 5.0 Support 256 Mb Flash ROM

PCI Express 5.0 x16

1

PCI Express 4.0 x4

1

Širina (mm)

270 mm

Visina (mm)

80 mm

CPU Max. količina

1

Max. kapacitet memorije

256 GB

Količina utora

4

Značajke memorije

Unbuffered Dual Rank Single Rank XMP AMD EXPO

Audio standard

HD audio

Podržana brzina

2.5 Gbps

Jamstvo u Hrvatskoj

Da

Jamstveni rok (mjeseci)

36 mjeseci(a)

Validacija jamstva

Serijski broj

Dužina (mm)

335 mm

Bruto težina (kg)

1.89 kg

Neto težina (kg)

1.69 kg

Bruto težina kutije (kg)

16 kg

Količina u kutiji

8

Vrsta pakiranja

Maloprodajno

EAN kod

4719331871239

CPU podrška

AMD Ryzen 7000 Series AMD Ryzen 8000 Series AMD Ryzen 9000 Series

Provjera pogrešaka

Non-ECC

Integrirani audio

Da

Integrirani LAN

Da

BIOS vrsta

AMI

Integriran

Storage Controller:PCI Express 5.0 x4 (1 x M.2 (Key M))Storage Controller:PCI Express 4.0 x4 (1 x M.2 (Key M))Storage Controller:PCI Express 4.0 x2 (1 x M.2 (Key M))Storage Controller:SATA III-600 (4)

Nadzor

CPU Temperature CPU Voltage System Temperature System Voltage
