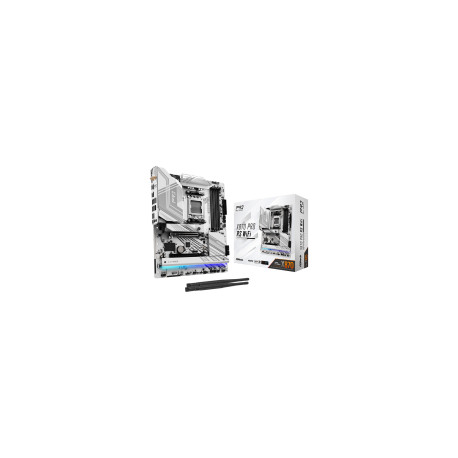

ASROCK X870 Pro RS Wifi ATX AM5 DDR5

Specifikacije

HDMI

1 (HDMI (Type A))

Bluetooth

Bluetooth 5.4

Wi-Fi

IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n Wi-Fi 4, IEEE 802.11ac Wi-Fi 5, IEEE 802.11ax Wi-Fi 6, IEEE 802.11ax Wi-Fi 6E, IEEE 802.11be Wi-Fi 7

Brzina memorije

8000MHz

Audio izlaz

7.1 Channel Surround

Vrsta memorije

DDR5 SDRAM

Količina u pakiranju

1

Format memorije

DIMM 288-pin

CPU podnožje

Socket AM5

Chipset

AMD X870, Realtek ALC1220

LAN

1 (RJ-45)

USB 2.0

6 (USB 2.0 (type A))

Power Connectors Type

24+8 pin

LAN Chipset

Realtek Dragon RTL8125BG

Mainboard Features

15u Gold contact, AMD CrossFire technology, RGB LED

Antenna

2

Audio Line-Out

1 (3.5-mm minijack)

Plug-in-card

Wi-Fi Controller:

USB 3.2 Gen 1

4 (USB 3.2 (type A))

PCI Express 4.0 x16

1

Standardi

FCC, CE, ErP/EuP ready (ErP/EuP ready power supply is required)

Format

ATX

Vrsta

Vanjski

Podržani operativni sustavi

Microsoft Windows 10 64-bit, Microsoft Windows 11 64-bit

BIOS

256Mb AMI UEFI Legal BIOS with GUI support

Dodaci

WiFi antenna x 2

USB 4.0

2 (USB 4.0 (type C))

PCI Express 5.0 x16

1

Širina (mm)

305 mm, 281 mm

Visina (mm)

244 mm, 75 mm

CPU Max. količina

1

Max. kapacitet memorije

256 GB

Količina utora

4

Značajke memorije

Two DDR Channels, Unbuffered, XMP, AMD EXPO

Audio standard

HD audio

Podržana brzina

2.5 Gbps

Jamstvo u Hrvatskoj

Da

Jamstveni rok (mjeseci)

36 mjeseci(a)

Validacija jamstva

Serijski broj

Dužina (mm)

346 mm

Bruto težina (kg)

2.015 kg

Neto težina (kg)

1.305 kg

Bruto težina kutije (kg)

11.24 kg

Količina u kutiji

5

Vrsta pakiranja

Maloprodajno

CPU podrška

AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series

Provjera pogrešaka

ECC/non-ECC

Integrirani video kontroler

Da

Integrirani audio

Da

Integrirani LAN

Da

Težina kartona

0.5 kg

Težina plastike

0.5 kg

Kabeli

2 x SATA Data Cables

Integriran

Storage Controller: Supports: Level 0, Level 1, Level 10, PCI Express 5.0 x4 (1 x M.2 (Key M)), Storage Controller: Supports: Level 0, Level 1, Level 10, PCI Express 4.0 x4 (1 x M.2 (Key M)), Storage Controller: Supports: Level 0, Level 1, Level 10, PCIe 3.0 x4/SATA (1 x M.2 (Key M)), Storage Controller: Supports: Level 0, Level 1, SATA III-600 (4)

Mikrofon ulaz

1 (3.5-mm minijack)
