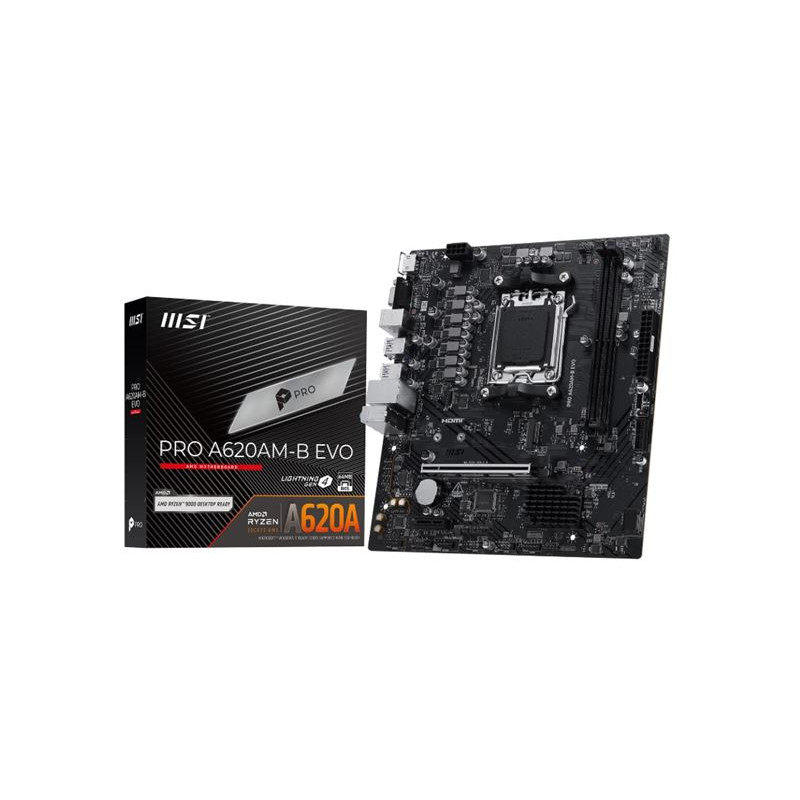

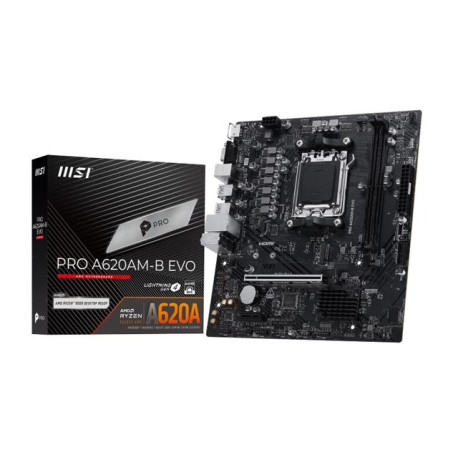

MBO AM5 MSI PRO A620AM-B EVO

Specifikacije

Format matične ploče

mATX

Vrsta memorije

DDR5

HDMI

1

Broj utora

2

Esata

0

CPU

AMD Ryzen 5, AMD Ryzen 7, AMD Ryzen 9

Socket

AM5

USB 2.0

2

DVI

n/a

USB 3.0

0

PCI

n/a

Serial

n/a

Parallel

n/a

Audio

8-kanalni audio

SATA II

n/a

M.2

1

Mreža

1x 2.5Gb Ethernet

USB 3.1

2

Wireless

Nema

RAID

0, 1

Display Port

n/a

Takt memorije [MHz]

4800, 5000, 5200, 5400, 5600, 5800, 6000, 6200, 6400+

RJ45

1

Chipset (N)

AMD A620

BUS[MHz]

1000

Max. memorije [GB]

128

AGP 4x/8x

n/a

PCIe 3.0 x16

0

PCIe x16

n/a

PCIe x8

n/a

PCIe x4

n/a

PCIe x1

1

PCI-X

n/a

PATA

n/a

SATA3

2

PS/2 mouse

1

PS/2 keyboard

1

D-sub

1

S/PDIF Out

n/a

FireWire

0

4-pin ATX 12V Power

n/a

8-pin ATX 12V Power

Y

20-pin ATX Power

n/a

24-pin ATX Power

Y

Front panel audio

Y

Chasis Intrusion

n/a

CD Audio In

n/a

Chasis Fan Power

2

CPU Fan Power

1

WLAN connector

n/a

Podrška za integrirani grafičk

Y

SATA Express

n/a

U.2

n/a

USB 3.2

4

PCIe 4.0 x16

1

PCIe 5.0 x16

0
