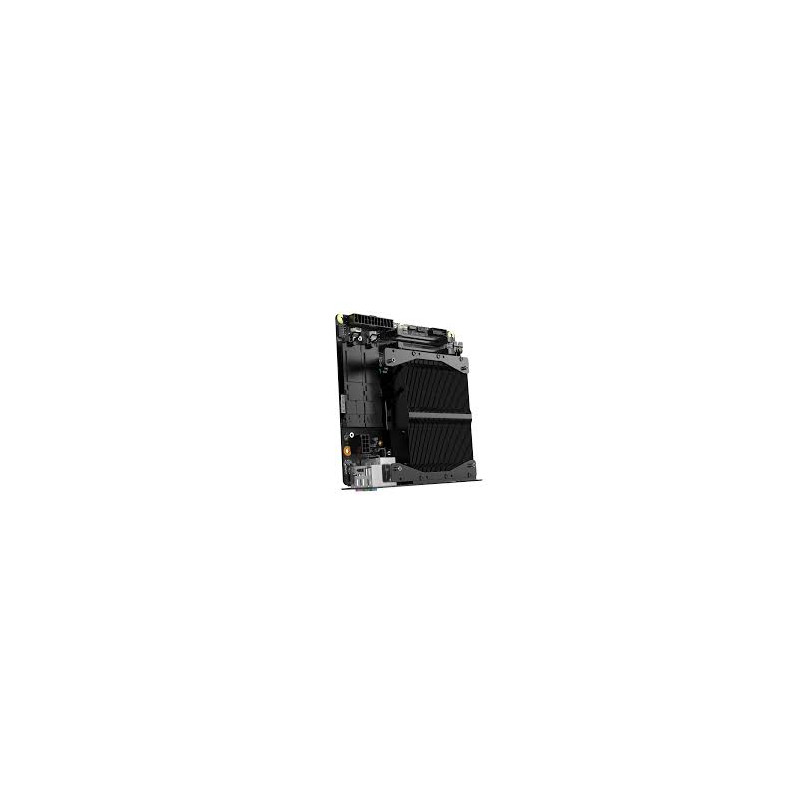

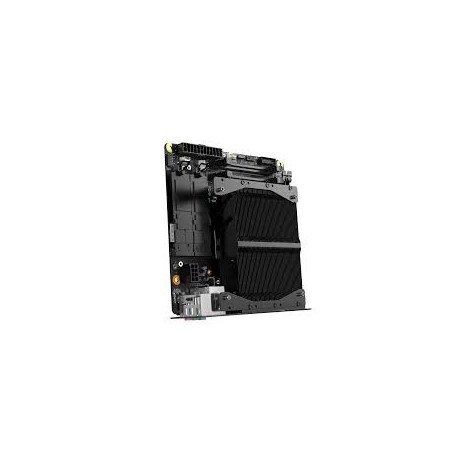

MinisForum matična ploča BD795i SE

The MINISFORUM BD795i SE is a high-performance Mini-ITX motherboard featuring an integrated AMD Ryzen 9 7945HX processor with 16 cores and 32 threads. It supports up to 96 GB of DDR5 memory, two M.2 PCIe 4.0 NVMe SSDs and a graphics card through its PCIe 5.0 ×16 expansion slot. Its powerful processor and extensive upgrade options make it suitable for compact gaming systems, multimedia production, software development and other demanding workloads.

Specifications:

Model: MINISFORUM BD795i SE
Type: Mini-ITX MoDT motherboard with integrated processor
Processor: AMD Ryzen 9 7945HX
Cores and threads: 16 cores and 32 threads
Maximum processor frequency: Up to 5.4 GHz
Processor cache: 64 MB
Integrated graphics: AMD Radeon 610M
Form factor: Mini-ITX
Dimensions: 170 × 170 × 1.6 mm

Memory:

2 × DDR5 SO-DIMM slots
Supported speed: Up to 5200 MT/s
Maximum capacity: 96 GB
Memory is not included

Storage:

2 × M.2 2280 PCIe 4.0 ×4 NVMe SSD slots
Up to 4 TB supported per slot
SSDs are not included

Expansion:

1 × PCIe 5.0 ×16 slot for a graphics card or another compatible expansion card
1 × M.2 2230 slot for a Wi-Fi module
Wi-Fi module is not included

Video outputs:

HDMI
DisplayPort
USB Type-C with video output support

Operating system: Not included
Processor: Integrated into the motherboard
Internal reference: MSBD795iSE
EAN: 4897118833141

Package contents:

1 × MINISFORUM BD795i SE motherboard
1 × mounting screw set
1 × user manual


Warranty: 24 months
