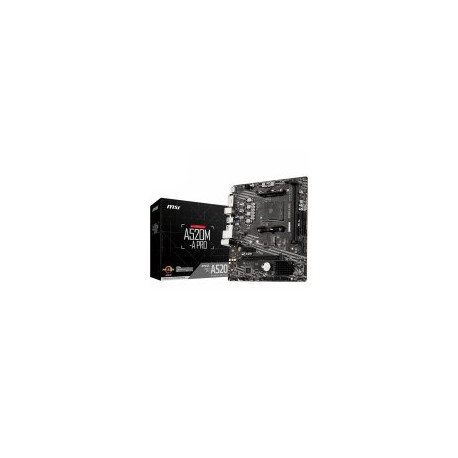

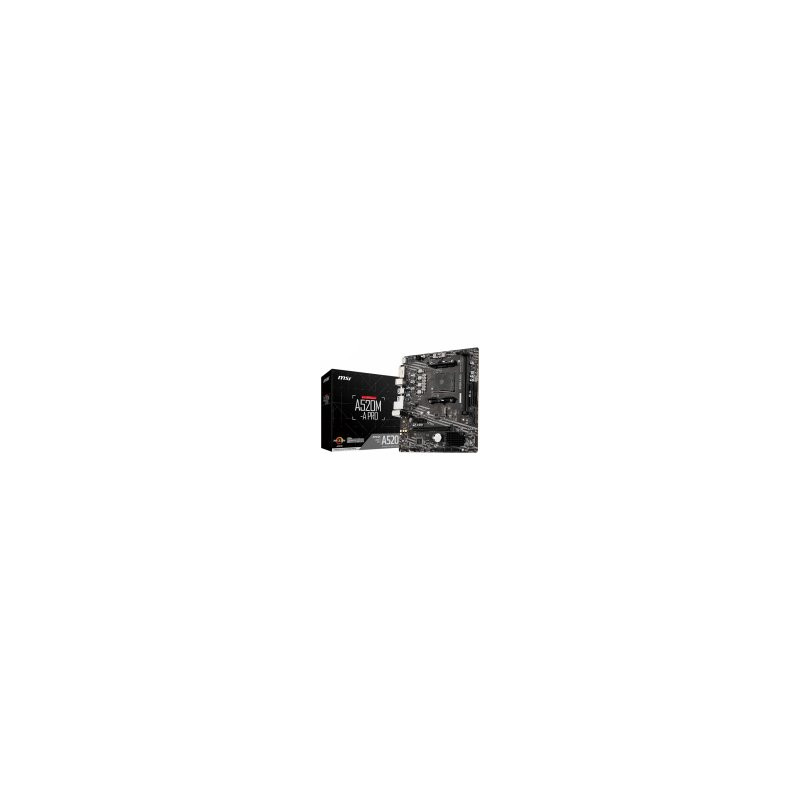

MSI A520M-A PRO, m-ATX, AMD AM4 Socket, 1x PCI-E 3.0 x16 slot, HDMI, DVI-D, 2 DIMMs, Dual Channel DD

Specifikacije

HDMI

1 (HDMI (Type A))

Vrsta memorije

DDR4 SDRAM

Memory form factor

DIMM 288-pin

Package Type

Retail

Warranty Products returnable

Yes

Warranty Term (month)

36 month(s)

Warranty validation Criteria

Serial Number

Pack Weight Brutto (kg)

0.1 kg

Pieces in pack

1

Box Weight Brutto (kg)

0.1 kg

Packs in Box

1

Form Factor

Micro ATX

Included Accessories

I/O Shield Screws User Guide

Height (mm)

200 mm

Width (mm)

236 mm

Device Location

Integrated

Retail Packaging Net Weight Carton

0.1 kg

Retail Packaging Net Weight Plastic

0.1 kg

CPU podnožje

Socket AM4

Chipset

AMD A520

Audio Output Mode

7.1 Channel Surround

Compliant Audio Standards

High Definition Audio

LAN

1 (RJ-45)

Cable Included

2 x SATA 6Gb/s Cables

Pack Weight Netto (kg)

0.1 kg

Audio Interface

3 (3.5-mm minijack)

Provides Error Checking Method

ECC

Memory Speed

2133MHz(PC4-17000) 2400MHz(PC4-19200) 2666MHz(PC4-21300) 2800MHz(PC4-22400) 3000MHz(PC4-24000) 3200MHz(PC4-25600)

Memory Features

Two DDR Channels Unbuffered

Memory Slot Total Quantity

2

Audio Chipset

Realtek ALC892/ALC897

Audio Data Width

24-bit

Data Link Protocol Supports

Gigabit Ethernet/Fast Ethernet/Ethernet

USB 2.0

2 (USB 2.0 (type A))

Supports Central Processor Unit

AMD Ryzen Series

CPU Maximum Quantity Supports

1

Maximum Installable System Memory Storage Capacity

128 GB

Integrated

Storage Controller:PCIe 3.0 x4/SATA (1 x M.2 (Key M))Storage Controller:Supports: Level 0, Level 1, Level 10SATA III-600 (4)

Audio Integrated

yes

LAN Integrated

yes

PCI Express 3.0 x16

1

PS/2

1

BIOS Type

AMI

BIOS Features

ASUS CrashFree BIOS 3 UEFI PXE boot ASUS EZ Flash 3 256 Mb Flash ROM

Power Connectors Type

24+8 pin

LAN Chipset

Realtek RTL8111H

PCI Express 3.0 x1

1

Wake up/Sleep

Wake on LAN

USB 3.2 Gen 1

4 (USB 3.2 (type A))
