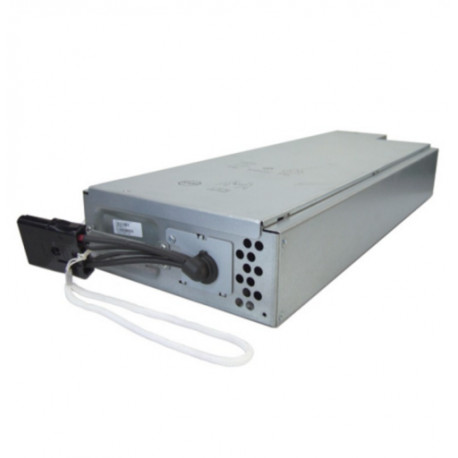

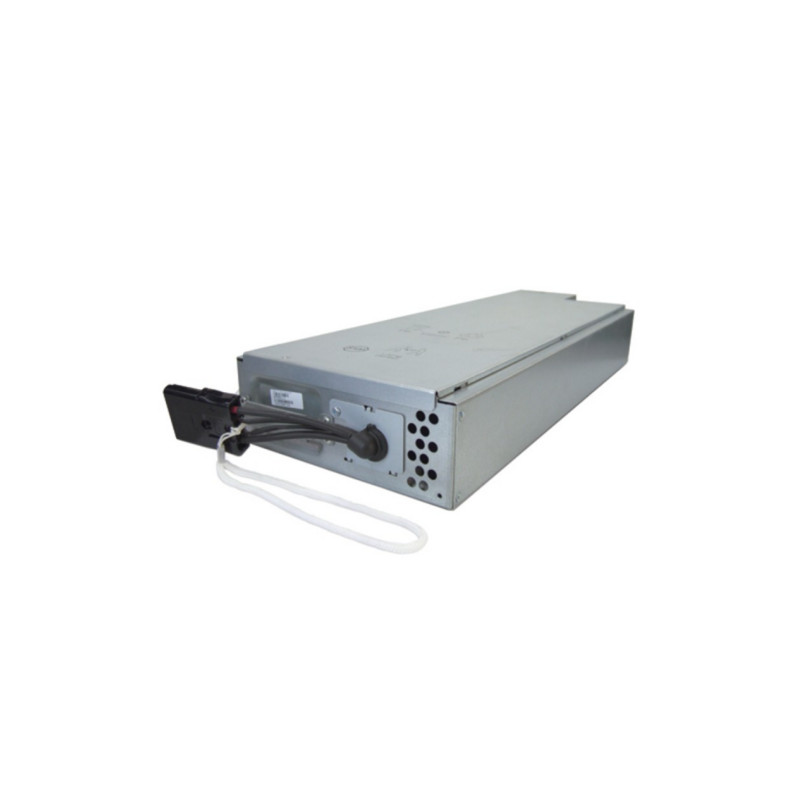

APC Replacement Battery Cartridge 117

Battery Type
Maintenance-free sealed lead-acid battery with thickened electrolyte : leak protection

Expected battery life (years)
3-5 years old

Number of battery packs per chain
10

RBC™ quantity
1

Battery installation
Closed battery cartridge

Battery output voltage
120

Form factor
Rack-mounted Rackmount (Installation in the cabinet)

Maximum height
76mm , 7.6cm

Maximum width
203mm , 20.3cm

Maximum depth
584mm , 58.4cm

Net weight, kg
22.27

Gross weight, kg
25.18

Transport package height
228mm , 22.8cm

The depth of the transport package
is 761mm , 76.1cm

The width of the transport package
is 393mm , 39.3cm

Devices on a pallet
12

Operating temperature
0 - 40 °C

Operating range of relative humidity
0 - 95 %

Operating range of altitude above sea level
0-3000meters

Storage temperature
-15 - 45 °C

Relative humidity of storage
0 - 95 %

Storage altitude above sea level
0-15000meters
