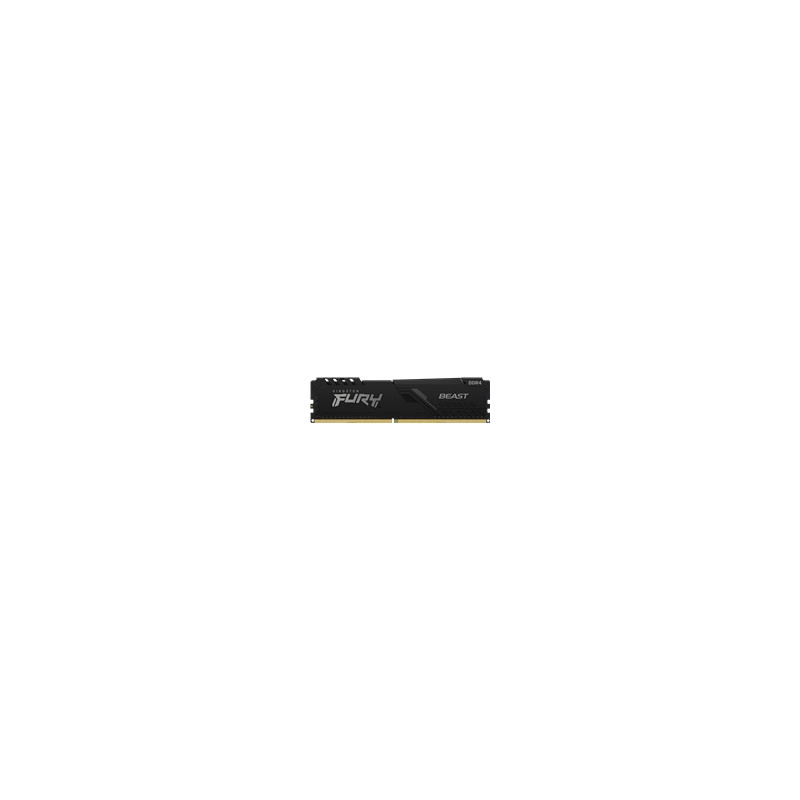

Kingston DIMM 16GB DDR5 6000MHz FURY Beast Black (KF560C30BBE-16)

DESCRIPTION
- Kingston FURY KF560C30BBE-16 is a 2G x 64-bit (16GB) DDR5-6000 CL30 SDRAM (Synchronous DRAM) 1Rx8, memory module, based on eight 2G x 8-bit FBGA components per module
- The module supports AMD EXPO v1.1 and Intel Extreme Memory Profiles (Intel® XMP) 3.0. Each module has been tested to run at DDR5-6000 at a low latency timing of 30-36-36 at 1.4V
- The SPDs are programmed to JEDEC standard latency DDR5-4800 timing of 40-39-39 at 1.1V. Each 288-pin DIMM uses gold contact fingers

FEATURES
- Power Supply: VDD = 1.1V Typical
- VDDQ = 1.1V Typical
- VPP = 1.8V Typical
- VDDSPD = 1.8V to 2.0V
- On-Die ECC
- Height 1.37” (34.9mm), w/heatsink

SPECIFICATION
- CL(IDD): 40 cycles
- Row Cycle Time (tRCmin): 48ns(min.)
- Refresh to Active/Refresh Command Time (tRFCmin): 295ns(min.)
- Row Active Time (tRASmin): 32ns(min.)
- UL Rating: 94 V - 0
- Operating Temperature: 0C to +85C
- Storage Temperature: -55C to +100C

FACTORY TIMING PARAMETERS
- Default (JEDEC): DDR5-4800 CL40-39-39 @1.1V
- EXPO Profile #0: DDR5-6000 CL30-36-36 @1.4V
- EXPO Profile #1: DDR5-5600 CL40-40-40 @1.25V
- XMP Profile #1: DDR5-6000 CL30-36-36 @1.4V
- XMP Profile #2: DDR5-5600 CL40-40-40 @1.25V
