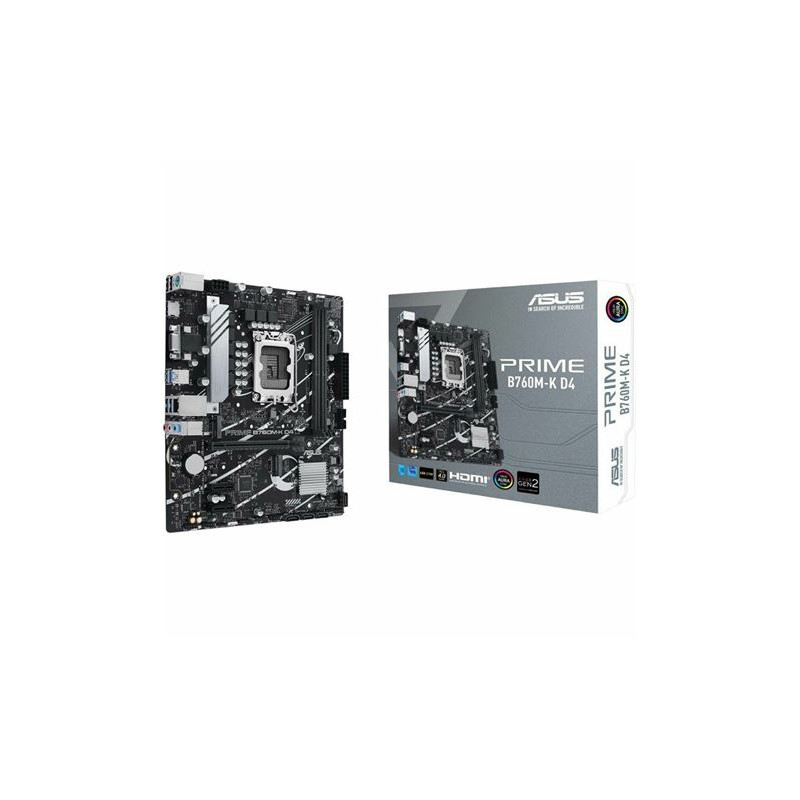

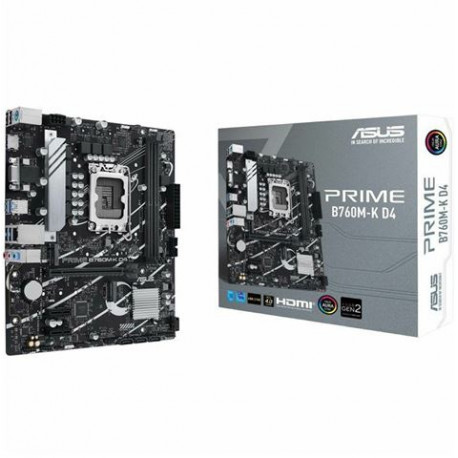

Asus PRIME B760M-K D4

Specifikacije

Format matične ploče

mATX

Vrsta memorije

DDR4

HDMI

1

Broj utora

2

CPU

Intel Celeron, Intel Core i3, Intel Core i5, Intel Core i7, Intel Core i9, Intel Pentium

Socket

LGA1700

USB 2.0

2

DVI

n/a

USB 3.0

0

PCI

n/a

Serial

n/a

Parallel

n/a

Audio

8-kanalni audio

SATA II

n/a

M.2

2

Mreža

1x 2.5Gb Ethernet

USB 3.1

2

RAID

0, 1, 5

Display Port

n/a

Takt memorije [MHz]

2133, 2400, 2666, 2933, 3200, 3333, 3466, 3600, 3733, 4000, 4400, 4600, 4800, 5000, 5066, 5333

RJ45

1

Chipset (N)

B760

BUS[MHz]

1000

Max. memorije [GB]

64

AGP 4x/8x

n/a

PCIe 3.0 x16

0

PCIe x16

n/a

PCIe x8

n/a

PCIe x4

n/a

PCIe x1

2

PCI-X

n/a

PATA

n/a

SATA3

4

PS/2 mouse

n/a

PS/2 keyboard

1

D-sub

1

S/PDIF Out

n/a

4-pin ATX 12V Power

n/a

8-pin ATX 12V Power

Y

20-pin ATX Power

n/a

24-pin ATX Power

Y

Front panel audio

Y

Chasis Intrusion

n/a

CD Audio In

n/a

Chasis Fan Power

1

CPU Fan Power

1

WLAN connector

n/a

Podrška za integrirani grafičk

Y

SATA Express

n/a

U.2

n/a

USB 3.2

4

PCIe 4.0 x16

1

PCIe 5.0 x16

0
