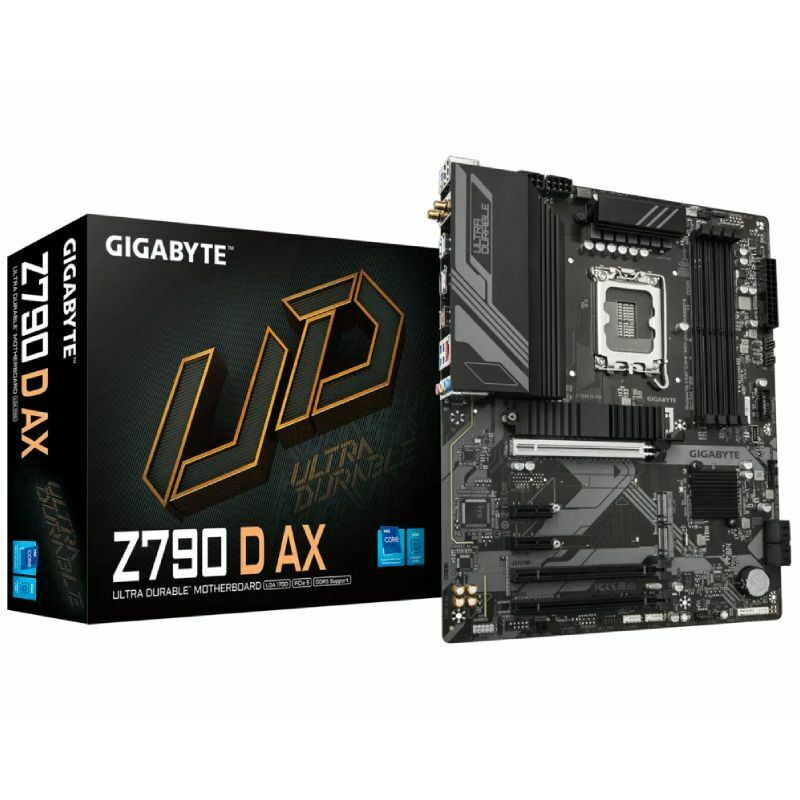

Gigabyte Z790 D AX

Specifikacije

Vrsta memorije

Support for DDR5, 4 x DDR5 DIMM sockets supporting up to 256 GB

Model

Z790 D AX

Chipset

Z790 D AX

LAN

Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Audio

Realtek® Audio CODEC, High Definition Audio

I/O konektori

1 x 24-pin ATX main power connector, 2 x 8-pin ATX 12V power connectors, 1 x CPU fan header, 1 x CPU fan/water cooling pump header, 3 x system fan headers, 1 x system fan/water cooling pump header, 2 x addressable LED strip headers, 3 x M.2 Socket 3 connectors, 4 x SATA 6Gb/s connectors, 1 x front panel header, 1 x front panel audio header, 1 x S/PDIF Out header, 1 x USB Type-C® header, with USB 3.2 Gen 1 support, 1 x USB 3.2 Gen 1 header, 2 x USB 2.0/1.1 headers, 2 x Thunderbolt™ add-in card connectors, 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only), 1 x reset button, 1 x Q-Flash Plus button, 1 x reset jumper, 1 x Clear CMOS jumper,
