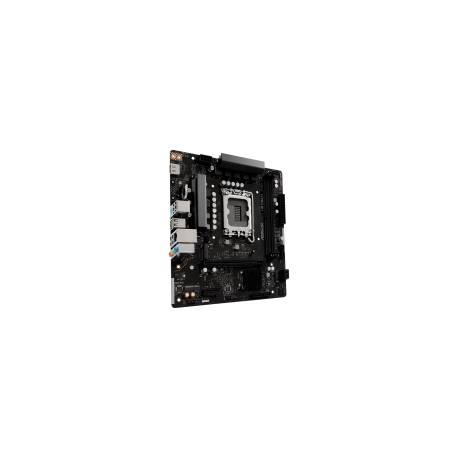

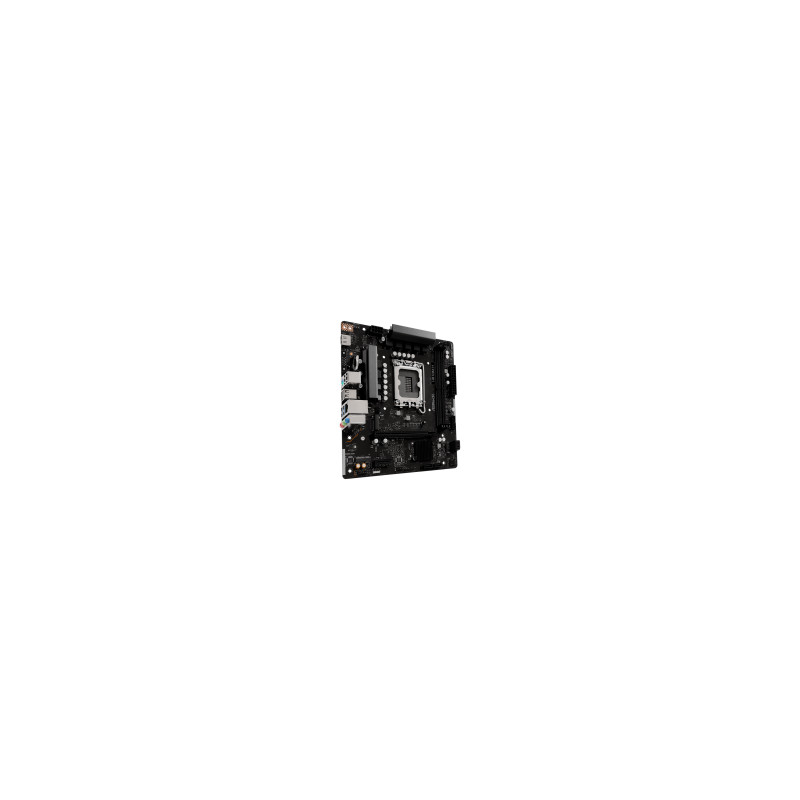

ASROCK H810M-H mATX LGA1851 DDR5

Specifikacije

HDMI

1 (HDMI (Type A))

Audio izlaz

7.1 Channel Surround, 3 (3.5-mm minijack)

Vrsta memorije

DDR5 SDRAM

Količina u pakiranju

1

Model

Intel Xe LPG Graphics

Format memorije

DIMM 288-pin

CPU podnožje

Socket 1851

Chipset

Intel H810, Realtek ALC897

LAN

1 (RJ-45)

USB 2.0

4 (USB Type-A)

PS/2

1 (6-pin)

Power Connectors Type

24 pin8 pin2x4 pin

LAN Chipset

Realtek RTL8111H

Mainboard Features

RGB Polychrome, ASRock Intel 4-Layer Memory POOL Technology

Antenna

2

Support

Wi-Fi Controller: 1 x M.2 (Key E)

Architecture Features

Intel Turbo Boost Technology 3.0, Intel Hybrid Technology, Intel Thermal Velocity Boost, Intel Adaptive Boost Technology

Mainboard Cooling System

CPU Active Heatsink

USB 3.2 Gen 1

2 (USB Type-A)

PCI Express 4.0 x16

1

Standardi

FCC, CE, ErP/EuP Ready

Format

Micro ATX

Vrsta

Integriran

Podržani operativni sustavi

Microsoft Windows 11 64-bit

BIOS

ASRock Instant Flash, 256Mb AMI UEFI Legal BIOS with GUI support

Dodaci

I/O Shield, Screw

PCI Express 4.0 x1

1

Širina (mm)

220 mm, 1 mm

Visina (mm)

1 mm

Max. kapacitet memorije

128 GB

Količina utora

2

Značajke memorije

Two DDR Channels, Unbuffered, XMP 3.0

Audio standard

HD audio

Podržana brzina

1 Gbps

Dubina (mm)

193 mm

Jamstvo u Hrvatskoj

Da

Jamstveni rok (mjeseci)

36 mjeseci(a)

Validacija jamstva

Serijski broj

Dužina (mm)

1 mm

Bruto težina (kg)

1 kg

Neto težina (kg)

1 kg

Bruto težina kutije (kg)

1 kg

Količina u kutiji

20

Vrsta pakiranja

Maloprodajno

EAN kod

4711581490833

CPU podrška

Intel Core Ultra Processors (Series 2)

Provjera pogrešaka

non-ECC

Integrirani video kontroler

Da

Integrirani audio

Da

Integrirani LAN

Da

BIOS vrsta

AMI

Kabeli

2 x SATA Data Cables

Integriran

Storage Controller: SATA III-600 (4), Storage Controller: PCIe NVMe 4.0 x4 (1 x M.2 22x80 (Key M))
