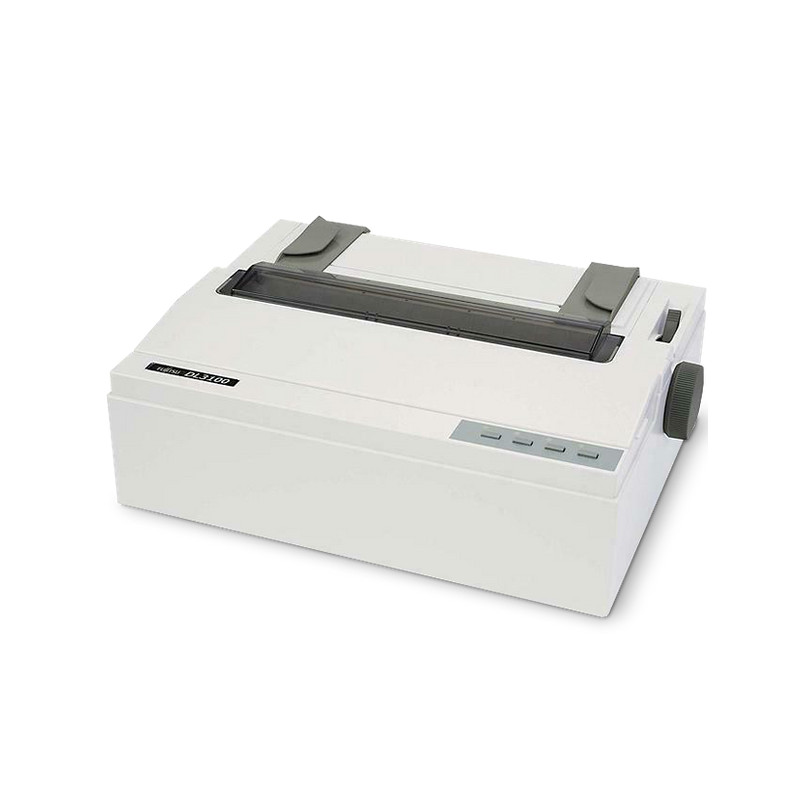

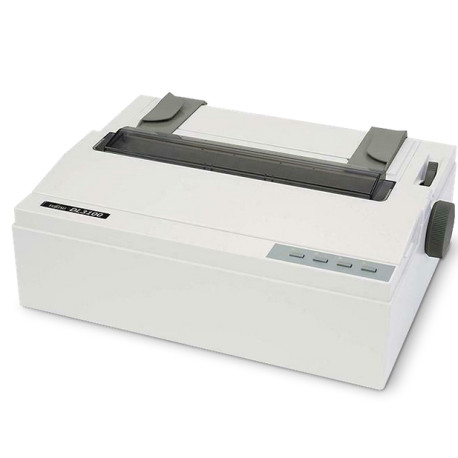

Fujitsu DL3100 A4, 24-Pin Dot Matrix Printer, USB and LAN, KA02100-B711

The Fujitsu DL3100 is a compact and reliable 24-pin dot matrix printer designed for forms, invoices, delivery notes and multipart documents. It provides print speeds of up to 450 characters per second and can produce an original with up to six additional copies. This version features USB 2.0 and Ethernet LAN connectivity for standalone or network use.

Specifications

Printer type: serial dot matrix printer
Print technology: 24-pin impact dot matrix
Printing method: bi-directional printing with logical seeking
Print columns: 80 at 10 cpi
High Draft speed: up to 450 characters/s at 10 cpi
Draft speed: up to 300 characters/s at 10 cpi
Letter Quality speed: up to 120 characters/s at 10 cpi
Maximum resolution: 360 × 360 dpi
Multipart printing: original plus up to 6 carbonless copies
Maximum paper thickness: 0.52 mm
Paper width: 95–267 mm
Interfaces: USB 2.0 Type-B and Ethernet LAN
Network connection: 10BASE-T / 100BASE-TX
Network protocol: TCP/IP
Emulations: Epson ESC/P2 and IBM ProPrinter
Input buffer: up to 256 KB
Printhead life: 400 million strokes per wire
Ribbon capacity: approximately 7 million characters
Operating power consumption: approximately 34 W
Standby power consumption: up to 1.4 W
Noise level: approximately 54 dBA / 52 dBA in low-noise mode
Dimensions: 369 × 283 × 146 mm
Weight: approximately 5.5 kg

Consumables

Ribbon: Fujitsu DL3100 Ribbon Cartridge
Ribbon PN: KA02100-0201

Package contents

Fujitsu DL3100 printer
Ribbon cartridge
Single-sheet feeder
Power cable
User documentation

PN: KA02100-B711

Warranty: 12 months
