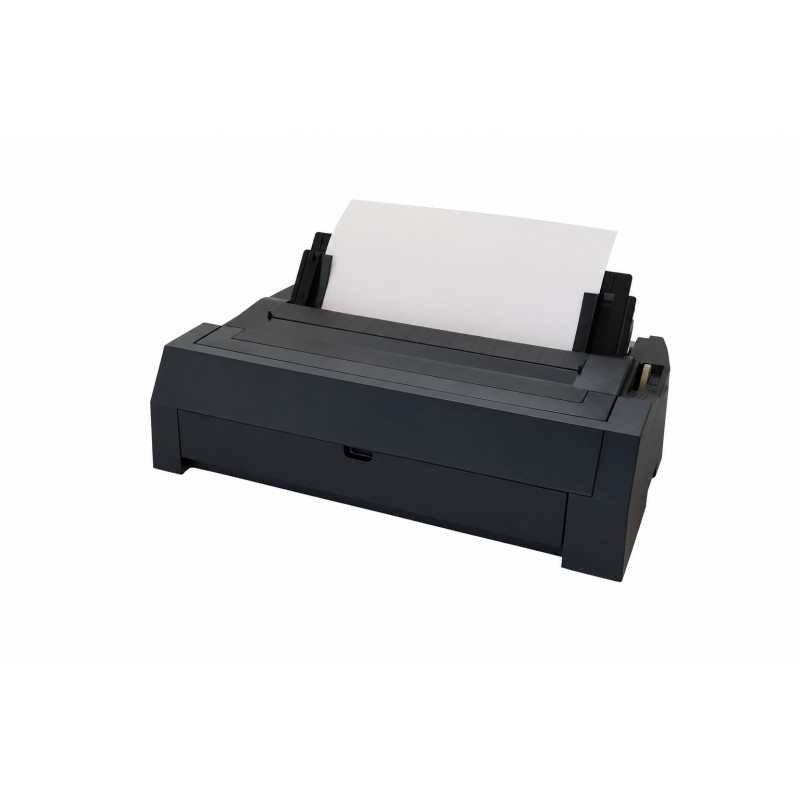

Fujitsu DL4850+ A3 24-Pin Dot Matrix Printer, USB, Parallel and RS-232C Interfaces, KA02110-B210

The Fujitsu DL4850+ is a professional wide-format 24-pin dot matrix printer designed for multipart forms, invoices, delivery notes and logistics documents. It provides print speeds of up to 900 characters per second at 15 cpi and supports an original with up to six additional copies. This version features USB 2.0, parallel and RS-232C serial interfaces for easy integration into existing business systems.

Specifications

Printer type: serial dot matrix printer
Print technology: 24-pin impact dot matrix
Wire diameter: 0.2 mm
Printing method: bi-directional printing with logical seeking
Print columns: 136 at 10 cpi / 166 at 12 cpi / 244 at 15 cpi
Letter Quality speed: 120 / 144 / 180 characters/s
Near Letter Quality speed: 240 / 288 / 360 characters/s
Draft speed: 360 / 432 / 540 characters/s
High Speed Draft speed: 480 / 576 / 720 characters/s
Super High Speed Draft speed: 600 / 720 / 900 characters/s
Speeds are stated for 10 / 12 / 15 cpi
Maximum resolution: 360 × 360 dpi
Multipart printing: original plus up to 6 copies
Maximum paper thickness: 0.38 mm
Guaranteed print thickness: up to 0.32 mm
Continuous paper: 102–406 mm wide and at least 102 mm long
Cut sheets: 120–420 mm wide and 76–420 mm long
Interfaces: USB 2.0, parallel and RS-232C
Emulations: Epson ESC/P2, IBM ProPrinter, PPDS, XL24E and OKI Barcode ESC DLE
Input buffer: up to 150 KB
Noise level: approximately 58 dBA
MTBF: 25,000 hours at a 25% duty cycle
Printhead life: 500 million strokes
Ribbon capacity: approximately 17 million characters
Standby power consumption: up to 2.5 W
Dimensions: 629 × 398 × 173 mm
Weight: approximately 11.5 kg

Consumables

Black ribbon cartridge: KA02110-0201
Capacity: approximately 17 million characters

Package contents

Fujitsu DL4850+ printer
Black ribbon cartridge
Power cable
User documentation

Note: computer interface cables are not included.

PN: KA02110-B210

Warranty: 12 months
