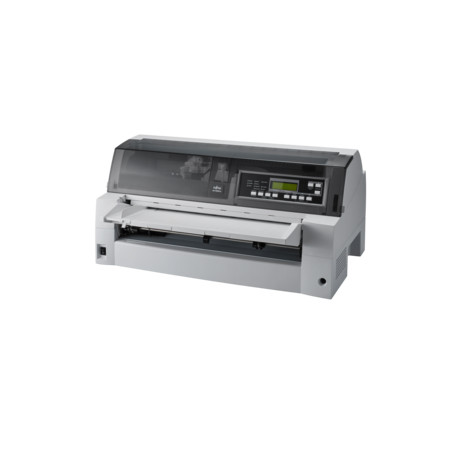

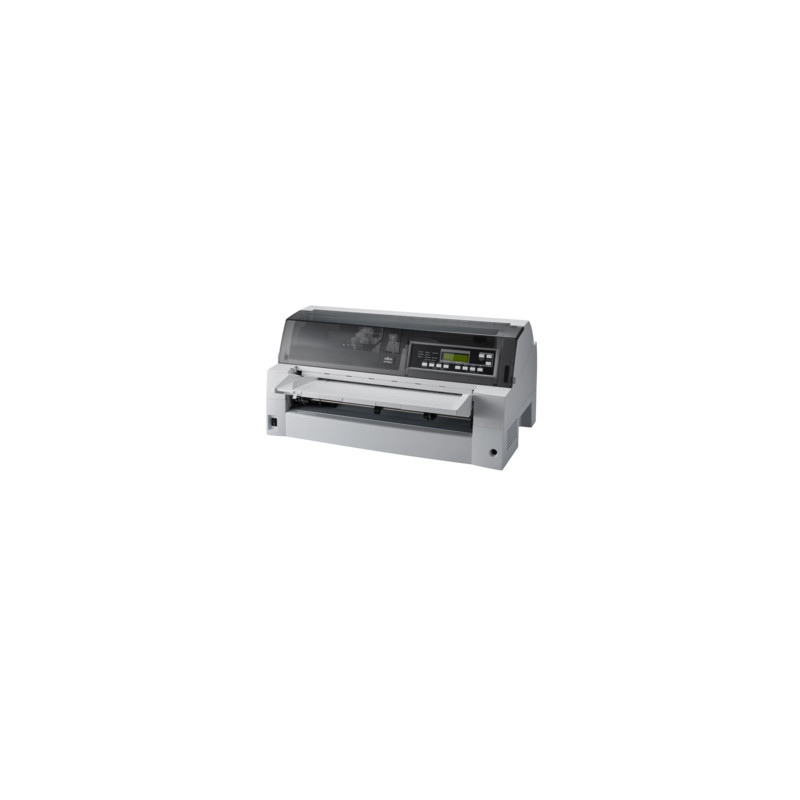

Fujitsu DL7400 Pro A3 24-Pin Dot Matrix Printer, Parallel and USB Interfaces, KA02086-B110

The Fujitsu DL7400 Pro is a professional wide-format 24-pin dot matrix printer designed for demanding multipart forms, invoices and business documents. It provides print speeds of up to 600 characters per second and can produce an original with up to seven additional copies in High Copy mode. Its straight paper path, automatic paper thickness adjustment and parallel and USB interfaces ensure reliable operation in demanding business environments.

Specifications

Printer type: serial dot matrix printer
Print technology: 24-pin impact dot matrix
Printing method: bi-directional printing with logical seeking
Print columns: 136 at 10 cpi / 163 at 12 cpi
Letter Quality speed: 120 characters/s at 10 cpi / 144 characters/s at 12 cpi
Report Quality speed: 240 characters/s at 10 cpi / 288 characters/s at 12 cpi
Draft speed: 360 characters/s at 10 cpi / 432 characters/s at 12 cpi
High Draft speed: 505 characters/s at 10 cpi / 606 characters/s at 12 cpi
Super High Draft speed: up to 600 characters/s at 10 cpi
Maximum resolution: 360 × 360 dpi
Standard multipart printing: original plus 4 copies
High Copy mode: original plus up to 7 copies
Maximum paper thickness: 0.57 mm
Cut sheets: 55–420 mm wide
Continuous paper: 102–420 mm wide
Form feed speed: 6 inches/s
Paper thickness adjustment: automatic or manual
Interfaces: IEEE 1284 parallel and USB 1.1 Type-B
Optional connectivity: Ethernet LAN card
Emulations: Fujitsu DPL24C PLUS, Epson ESC/P2 and IBM XL24E
Barcode printing: supported
QR code printing: supported
Input buffer: up to 128 KB
MTBF: 20,000 hours at a 25% duty cycle
Printhead life: 400 million strokes per wire
Standard ribbon capacity: approximately 5 million characters
Average operating power consumption: up to 120 W
Maximum power consumption: up to 225 W
Dimensions: 600 × 350 × 290 mm
Weight: approximately 17 kg
Noise level: approximately 59 dBA

Consumables

Black ribbon cartridge: KA02086-C802
Capacity: approximately 5 million characters

Package contents

Fujitsu DL7400 Pro printer
Black ribbon cartridge
Power cable
Driver and documentation CD

Note: the USB or parallel interface cable is not included.

PN: KA02086-B110
EAN: 4057185513470
