MinisForum UM890 Pro (AMD Ryzen 9 8945HS), barebone

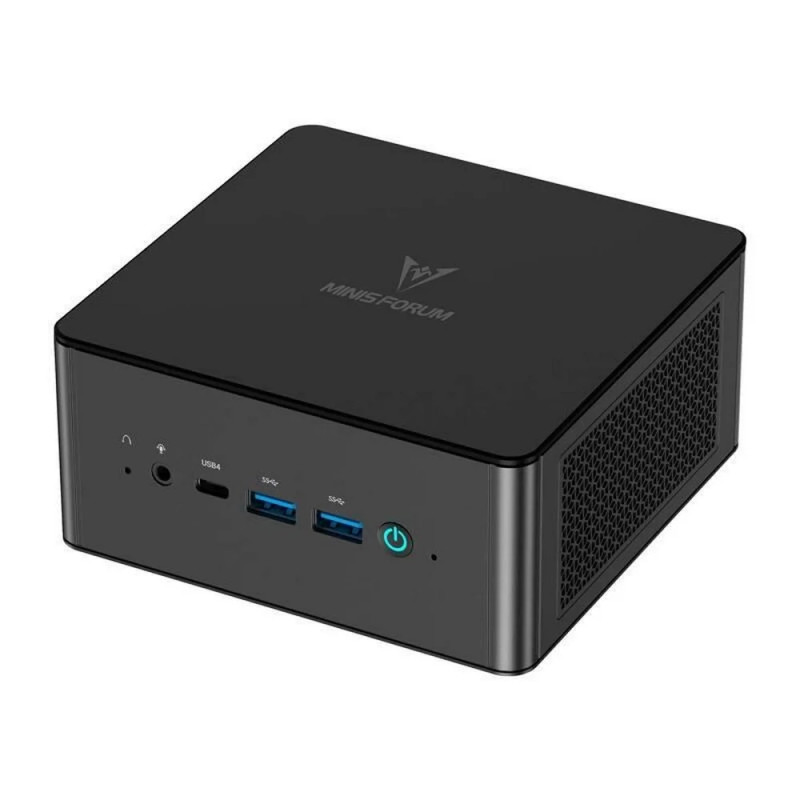

The MINISFORUM UM890 Pro is a powerful barebone mini PC equipped with an AMD Ryzen 9 8945HS processor and integrated AMD Radeon 780M graphics. Two DDR5 SO-DIMM slots and two M.2 PCIe 4.0 slots provide flexible upgrade options, while OCuLink enables connection to an external graphics card. With dual USB4 ports, HDMI and DisplayPort outputs and two 2.5 Gigabit Ethernet ports, it is well suited for demanding workloads, multimedia and multi-display configurations.

Specifications:

Model: MINISFORUM UM890 Pro
Type: Barebone mini PC
Processor: AMD Ryzen 9 8945HS, 8 cores and 16 threads, up to 5.2 GHz
Processor cache: 24 MB total cache
Graphics: Integrated AMD Radeon 780M
Memory: 2 × DDR5 SO-DIMM slots, up to 5600 MHz, maximum capacity of 96 GB
Storage: 2 × M.2 2280 PCIe 4.0 NVMe SSD slots
External graphics support: OCuLink
Wired network: 2 × 2.5 GbE LAN
Wireless connectivity: Wi-Fi 6E and Bluetooth
Video outputs: HDMI 2.1, DisplayPort 1.4 and 2 × USB4
Display support: Up to four displays simultaneously
Cooling: MINISFORUM Cold Wave 2.2 with active cooling for the processor, memory and SSDs

Ports:

2 × USB4
4 × USB 3.2 Gen 2 Type-A
1 × HDMI 2.1
1 × DisplayPort 1.4
2 × RJ45 2.5 GbE
1 × OCuLink
1 × 3.5 mm audio jack
1 × built-in digital microphone
1 × Clear CMOS hole

Power supply: 120 W, 19 V / 6.32 A
Supported operating system: Windows 11
Operating system: Not included
Memory and SSD: Not included
Dimensions: 130 × 127 × 66.6 mm
Weight: Approximately 707.5 g
Internal reference: MSUM890PB
EAN: 4897118832694

Package contents:

MINISFORUM UM890 Pro barebone mini PC
120 W power adapter

Warranty: 24 months
