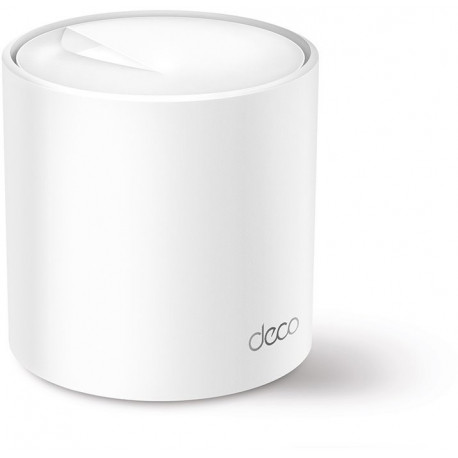

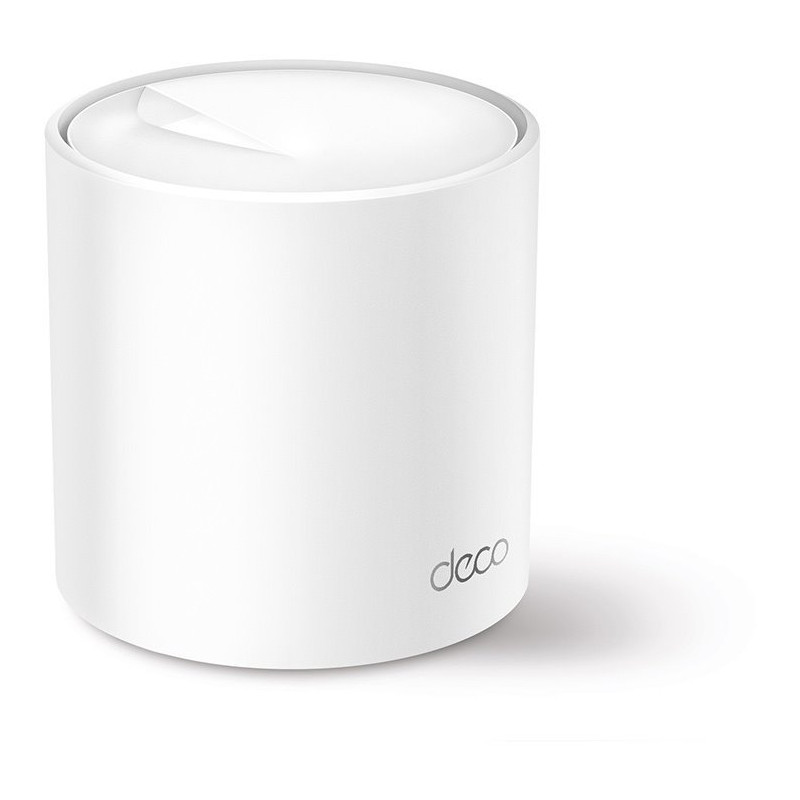

AX3000 Whole Home Mesh Wi-Fi 6 UnitSPEED: 574 Mbps at 2.4 GHz + 2402 Mbps at 5 GHzSPEC: 2× Internal

Specifikacije

External Color

White

Package Type

Retail

Warranty Products returnable

Yes

Warranty Term (month)

36 month(s)

Warranty validation Criteria

Serial Number

Pack Length (mm)

220 mm

Pack Width (mm)

194 mm

Pack Height (mm)

125 mm

Pack Weight Brutto (kg)

0.91 kg

Pieces in pack

1

Box Length (mm)

460 mm

Box Width (mm)

410 mm

Box Height (mm)

395 mm

Box Weight Brutto (kg)

13.48 kg

Packs in Box

12

Included Accessories

Power AdapterQuick Start guide

Depth (mm)

110 mm

Height (mm)

114 mm

Width (mm)

110 mm

Device Location

External

Retail Packaging Net Weight Carton

0.45 kg

Retail Packaging Net Weight Plastic

0.45 kg

CPU Core Quantity

2

Internal Clock Rate

1 GHz

LAN

3 x Gigabit Ethernet (10Base-T/100Base-TX/1000Base-T, up to 1 Gbps)

Built-in Devices

Reset Button

Cable Included

LAN Cable

Power Device Location

External

Pack Weight Netto (kg)

0.46 kg

Certifications

CE, FCC, RoHS, RCM

Maximum Operating Ambient Temperature

40 °C

Minimum Operating Ambient Temperature

0 °C

Maximum Operating Humidity

90 %

Minimum Operating Humidity

10 %

Requires Operating System

Apple iOS 9 or Later Android 4.4 or Later

Encryption Algorithm

WPA WPA2 WPA3

Antenna

Internal

Network Device Type

Router/Range Extender/Access Point

Data Link Protocol Supports (New)

Wi-Fi + LAN

External Connection Type

3 x WAN (up to 1 Gbps)

Router Features

IPTV Support Dual Band Intrusion Detection and Prevent MU-MIMO Beamforming Technology Wi-Fi Multimedia (WMM) DHCP Server Auto-sensing Access Control

Wireless LAN Antenna Quantity

2

Line Modulation Type

OFDMA

Wireless Networking

IEEE 802.11ax/ac/n/a 5 GHz, up to 2402 MbpsIEEE 802.11ax/n/b/g 2.4 GHz, up to 574 Mbps

Protocols (OSI Model)

PPPoEIPv4IPv6IGMPL2TPPPTPQoS

Application Layer

DHCP DDNS UPnP

Firewall Functions and Protocols

SPI (Stateful Packet Inspection) NAT Support DoS Attack Protection

LAN/WAN

3 (RJ-45)
