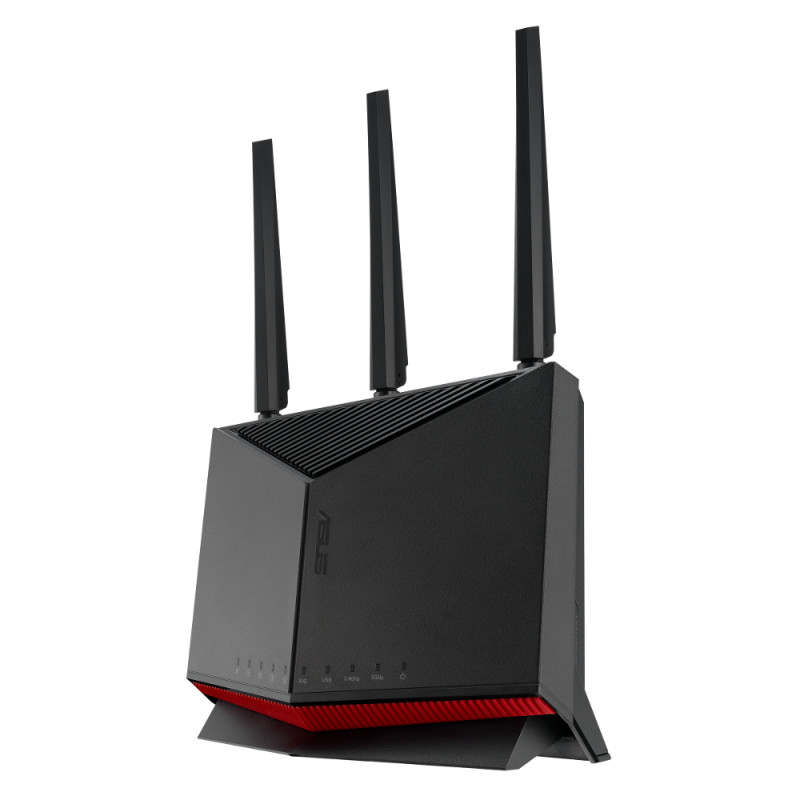

Asus RT-BE86U, BE6800, Dual Band WiFi 7 Router

Specifikacije

LED indikatori

WAN x1, 10G Port x1, LAN x4, USB x1, 2.4GHz x1, 5GHz x1, Power x1

Sigurnost

AiProtection, VPN, WPA3 Personal, WPA2 Personal, WPA Personal, WPA Enterprise, WPA2 Enterprise, WPA3 Enterprise, Open System i OWE, WPS, Let's Encrypt, DNS-over-TLS, SSH, Security Scan, Firewall, • Maximum Firewall Keyword Filter : 64, • Maximum Firewall Network Service Filter : 32, • Maximum Firewall URL Filter : 64,

Napajanje

AC Input : 110V~240V(50~60Hz), DC Output : 12 V with max. 5 A current ； 19.5 V with max. 2.31 A current

Model

RT-BE86U

Ostalo

Tipke: WPS Button, Reset Button, Power Switch, LED on/off Button

Antena

Tri vanjske antene, Jedna unutarnja antena

LAN

DHCP Server, IGMP Snooping, IPTV, LAN Link Aggregation, Manually Assign IP Address, • Maximum Manually Assign IP Address Rule : 128, Wake on LAN (WOL),

USB

File System :, • HFS+, • NTFS, • vFAT, • ext2, • ext3, • ext4, Safely Remove Disk, AiCloud, Download Master, AiDisk, Media Server, Time Machine, Samba Server, FTP Server, Shared Folder Privileges,

WAN

Internet Connection Type :, • PPPoE, • PPTP, • L2TP, • Automatic IP, • Static IP, • IPSec, Dual WAN, WAN Aggregation, 3G / 4G LTE dongle, Port forwarding, • Maximum Port Forwarding Rule : 64, Port triggering, • Maximum Port Triggering Rule : 32, DMZ, DDNS, NAT Passthrough :, • PPTP Pass-Through, • L2TP Pass-Through, • IPSec Pass-Through, • RTSP Pass-Through, • H.323 Pass-Through, • SIP Pass-Through, • PPPoE Relay,

Priključci

1 x 10G for WAN/LAN, 1 x 2.5G for WAN/LAN, 3 x 2.5G for LAN, USB 3.2 Gen1 x1, USB 2.0 Gen1 x1

Dimenzije i masa

235 x 90 x 316 mm, 854 g

Karakteristike

Procesor: 2.6GHz quad-core processor, Memorija: 256 MB Flash, 1 GB RAM

Radna frekvencija

2.4 GHz, 5 GHz

Protokol

IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, WiFi 4 (802.11n), WiFi 5 (802.11ac), WiFi 6 (802.11ax), WiFi 7 (802.11be), IPv4, IPv6,

Mod rada

Wireless Router Mode, AiMesh Node Mode, Access Point Mode, Media Bridge Mode, Repeater Mode

Prijenos podataka

WiFi 7 (802.11be) (2.4GHz): up to 1032 Mbps, WiFi 7 (802.11be) (5GHz): up to 5764 Mbps

Podešavanje i upravljanje

WEB: ASUSWRT, APP: ASUS Router APP

Wireless karakteristike

MU-MIMO, UTF-8 SSID, WiFi MAC Address Filter, • Maximum MAC Filters : 64, Wireless Scheduler, Airtime Fairness, RADIUS Client, Universal Beamforming, Explicit Beamforming,

VPN

Instant Guard, VPN Client L2TP, VPN Client Open VPN, VPN Client PPTP, VPN Client WireGuard, VPN Server IPSec, VPN Server Open VPN, VPN Server PPTP, VPN Server WireGuard, VPN Fusion, Support Surfshark,
