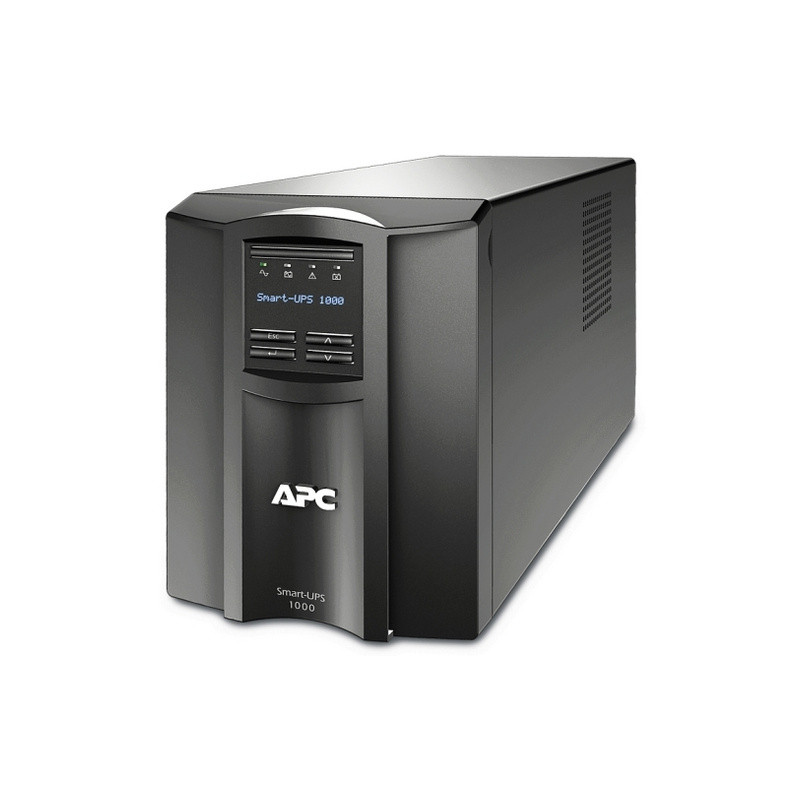

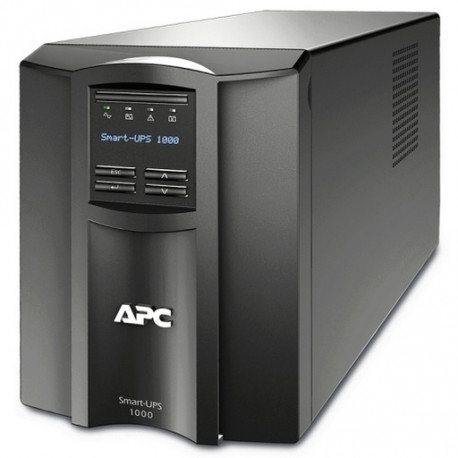

APC Smart-UPS 1000VA LCD 230V with SmartConnect

Specifikacije

Width

17.10 cm

Height

21.90 cm

Depth

43.90 cm

Battery Recharge Time

3 h

Battery Life

3...5 year(s)

Battery type

Lead-acid battery

Type of execution

Tower

Main Input Voltage

230 V

Main Output Voltage

230 V

Rated power in W

700 W

Rated power in VA

1000 VA

Product or component type

Uninterruptible power supply (UPS)

Input Connection Type

IEC 320 C14

Output Connection Type

8 IEC 320 C13, 2 IEC Jumpers

Provided equipment

USB cable

Redundant

No

net. Weight

19.40 kg

Mounting preference

No preference

Mounting mode

Not rack-mountable

USB compatible

No

Network frequency

50/60 Hz +/- 3 Hz auto-sensing

Input voltage limits

151...302 V adjustable, 160...286 V

Maximum configurable power in VA

1000 VA

Maximum configurable power in W

700 W

Output frequency

50/60 Hz +/- 3 Hz sync to mains

UPS type

Line-Interactive

Wave type

Sine wave

Transfer time

6 ms typical : 10 ms maximum

Product certifications

CE, EAC, RCM, VDE, UK PSTI

Standards

EN/IEC 62040-1:2019/A11:2021, EN/IEC 62040-2:2006/AC:2006, EN/IEC 62040-2:2018

Ambient air temperature for operation

0..40 °C

Relative humidity

0…95 %

Operating altitude

0...10000 ft

Ambient air temperature for storage

-15…45 °C

Storage Relative Humidity

0…95 %

Storage altitude

0.0000000000…15240.0000000000 m

Acoustic level

41 dBA

Alarm

Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

Surge energy rate

459 J

Mounting location

Front

Сontrol panel

Multifunction LCD status and control console

Noise suppression

Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
