APC

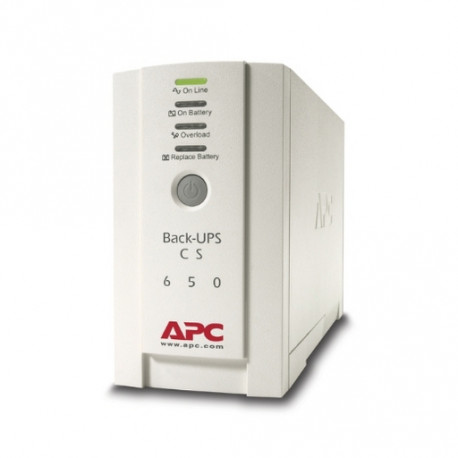

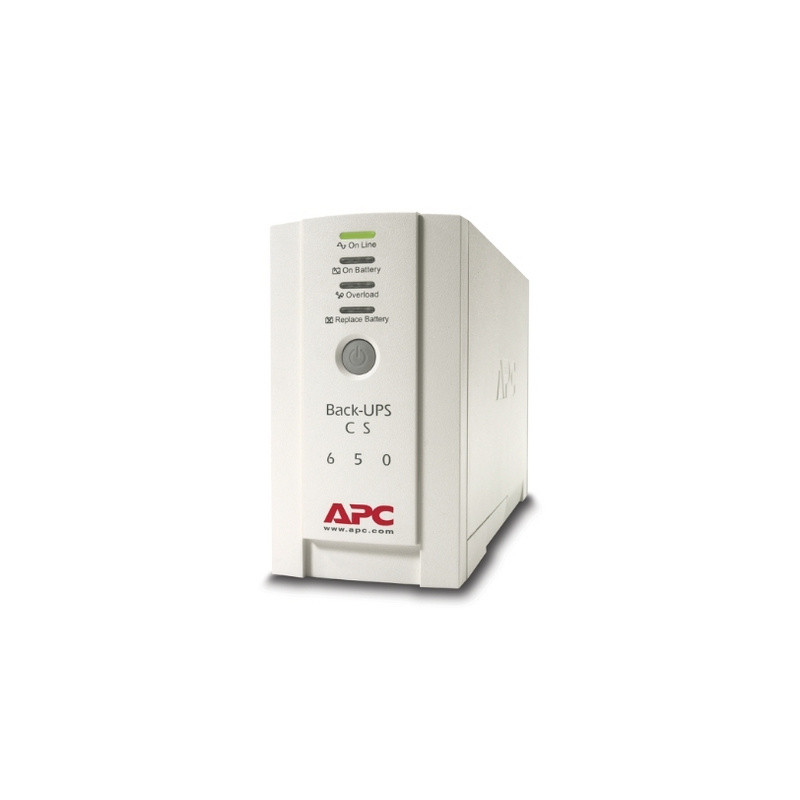

Back UPS CS 650VA
- Jamstvo: 2 god.
Vaša prava iz zakonskog jamstva
- Odstrani ovaj proizvod iz najdražih proizvoda
- Dodaj ovaj proizvod u najdraže proizvode
- Ispis
Specifikacije
- Width
- 9.10 cm
- Height
- 16.50 cm
- Depth
- 28.40 cm
- Battery Recharge Time
- 8 h
- Battery capacity
- 9.0 Ah
- Battery Life
- 4...6 year(s)
- Battery type
- Lead-acid battery
- Type of execution
- Tower
- Main Input Voltage
- 230 V
- Main Output Voltage
- 230 V
- Rated power in W
- 400 W
- Rated power in VA
- 650 VA
- Product or component type
- Uninterruptible power supply (UPS)
- Input Connection Type
- IEC 60320 C14
- Output Connection Type
- 3 IEC 60320 C13, 1 IEC 60320 C13 surge, 2 IEC Jumpers surge
- Number of cables
- 2
- Provided equipment
- USB cable
- Battery voltage
- 12 V
- Redundant
- No
- net. Weight
- 6.03 kg
- Mounting preference
- No preference
- Mounting mode
- Not rack-mountable
- USB compatible
- Yes
- Network frequency
- 47...63 Hz, 50/60 Hz +/- 3 Hz auto-sensing
- Input voltage limits
- 160...286 V adjustable, 180...266 V
- Maximum configurable power in VA
- 650 VA
- Maximum configurable power in W
- 400 W
- Output frequency
- 47...63 Hz sync to mains, 50/60 Hz +/- 1 Hz unsynchronised
- UPS type
- Standby
- Wave type
- Stepped approximation to a sinewave
- Transfer time
- 6 ms typical : 10 ms maximum
- Product certifications
- A-Tick, C-Tick, CE, GOST, NEMKO
- Standards
- EN/IEC 62040-1:2019/A11:2021, EN/IEC 62040-2:2006/AC:2006, EN/IEC 62040-2:2018
- Ambient air temperature for operation
- 0..40 °C
- Relative humidity
- 5…95 %
- Operating altitude
- 0...10000 ft
- Ambient air temperature for storage
- -15…45 °C
- Storage Relative Humidity
- 5…95 %
- Storage altitude
- 0.0000000000…15240.0000000000 m
- Acoustic level
- 45 dBA
- Alarm
- Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
- Surge energy rate
- 310 J
- Battery charger power
- 12 W nominal
- Mounting location
- Front
- Сontrol panel
- LED status display with on line : on battery : replace battery and overload indicators
- Switching current capacity
- 7 A
- Max. input current
- 7 A
- Battery power in VAH
- 111 VAh capacity, 111 VAh operating time
- Fiscalization 2.0 Article
- G46.50.22
Opis
Main Features^
- The main input voltage is 230 B
- The main output voltage is 230 V
- Rated power [W] 400 W
- Rated power 650 VA
- Input Connection Type IEC 60320 C14
- Output connection type 3 IEC 60320 C13
- 1 IEC 60320 C13 splash
- 2 IEC Jumpers splash
- Number of cables 2
- Battery type Lead acid battery
- Hardware included Software CD^
- Documentation CD-ROM
- Removable IEC C13 to IEC C14 2 power cords
- USB cable
Physical parameters:
- The Color is Beige
- Height 16.5 cm
- Width 9.1 cm
- Depth 28.4 cm
- Net weight 6.03 kg
- Front mounting location
- Type of fastener No preference
- Non-stationary mounting design
- Double-support mount 0
- USB-compatible Yes
Entrance:
- Network frequency 47-63 Hz 50/60 Hz +/- 3 Hz auto detection
- Input voltage limits 160...286 V adjustable 180...266 V
- The maximum input current is 7 A
- Current switching capacity of 7 A
Output:
- Maximum set power (W) 400 W
- Output frequency 47-63 Hz synchronized with the power grid 50/60 Hz +/- 1 Hz not synchronized
- UPS type Standby mode
- Type of voltage form Stepwise approximation of a sine wave
- Maximum set power (VA) 650 VA
- Switching time The typical time is 6 ms, the maximum is 10 ms
Accordance:
- A-Tick
- C-Tick certificates
- CE
- GOST
- NEMKO
- Standards EN/IEC 62040-1:2019/A11:2021
- EN/IEC 62040-2:2006/AC:2006
- EN/IEC 62040-2:2018
Environmental parameters:
- Operating ambient temperature 0...40 °C
- Relative humidity 5...95 %
- Altitude above sea level 0...10000 ft
- Ambient temperature during storage -15...45 °C
- Relative humidity of storage is 5...95 %
- Storage height 0.00...15240.00 m
- Acoustic level 45 dBA
Equipment warranty:
2 years warranty for repair or replacement.
- The main input voltage is 230 B
- The main output voltage is 230 V
- Rated power [W] 400 W
- Rated power 650 VA
- Input Connection Type IEC 60320 C14
- Output connection type 3 IEC 60320 C13
- 1 IEC 60320 C13 splash
- 2 IEC Jumpers splash
- Number of cables 2
- Battery type Lead acid battery
- Hardware included Software CD^
- Documentation CD-ROM
- Removable IEC C13 to IEC C14 2 power cords
- USB cable
Physical parameters:
- The Color is Beige
- Height 16.5 cm
- Width 9.1 cm
- Depth 28.4 cm
- Net weight 6.03 kg
- Front mounting location
- Type of fastener No preference
- Non-stationary mounting design
- Double-support mount 0
- USB-compatible Yes
Entrance:
- Network frequency 47-63 Hz 50/60 Hz +/- 3 Hz auto detection
- Input voltage limits 160...286 V adjustable 180...266 V
- The maximum input current is 7 A
- Current switching capacity of 7 A
Output:
- Maximum set power (W) 400 W
- Output frequency 47-63 Hz synchronized with the power grid 50/60 Hz +/- 1 Hz not synchronized
- UPS type Standby mode
- Type of voltage form Stepwise approximation of a sine wave
- Maximum set power (VA) 650 VA
- Switching time The typical time is 6 ms, the maximum is 10 ms
Accordance:
- A-Tick
- C-Tick certificates
- CE
- GOST
- NEMKO
- Standards EN/IEC 62040-1:2019/A11:2021
- EN/IEC 62040-2:2006/AC:2006
- EN/IEC 62040-2:2018
Environmental parameters:
- Operating ambient temperature 0...40 °C
- Relative humidity 5...95 %
- Altitude above sea level 0...10000 ft
- Ambient temperature during storage -15...45 °C
- Relative humidity of storage is 5...95 %
- Storage height 0.00...15240.00 m
- Acoustic level 45 dBA
Equipment warranty:
2 years warranty for repair or replacement.
