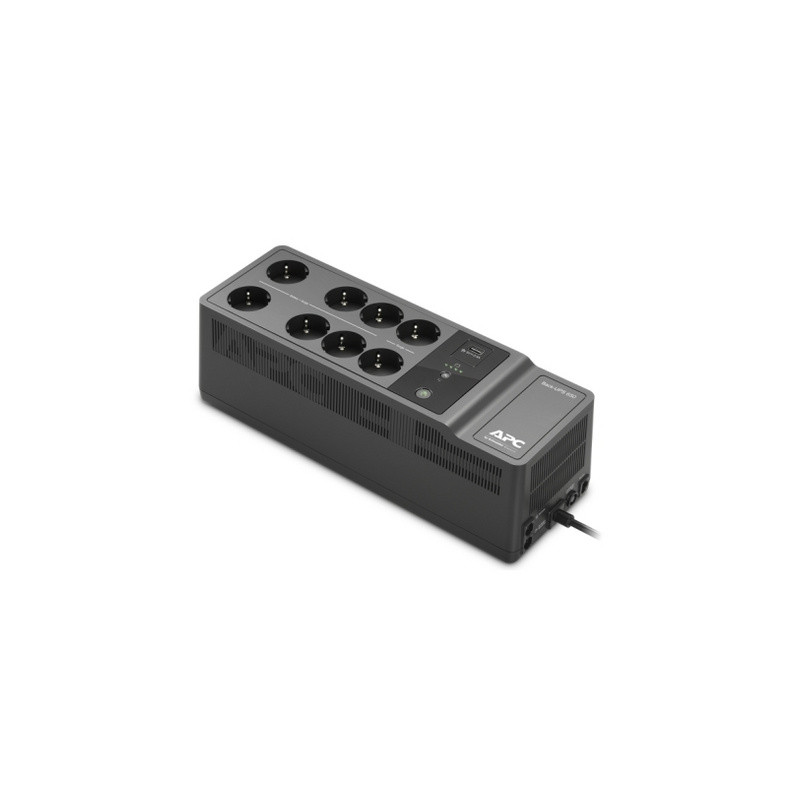

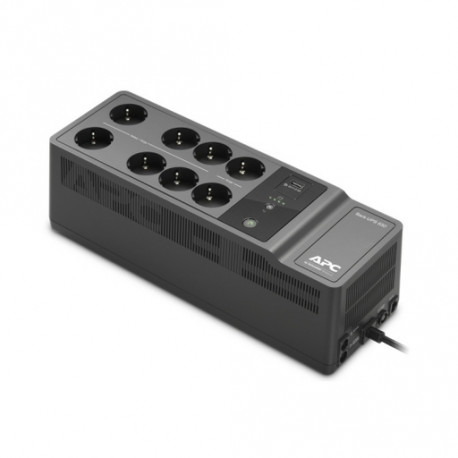

APC Back-UPS 650VA, 230V, USB charging ports

Specifikacije

Width

13.00 cm

Height

12.00 cm

Depth

36.50 cm

Battery capacity

7.0 Ah

Cable Length

1.80 m

Battery Life

2...5 year(s)

Battery type

Lead-acid battery

Type of execution

Tower

Main Input Voltage

230 V

Main Output Voltage

230 V

Rated power in W

400 W

Rated power in VA

650 VA

Product or component type

Uninterruptible power supply (UPS)

Input Connection Type

Schuko CEE 7/7P

Output Connection Type

6 Schuko CEE 7, 2 Schuko CEE 7 surge

Number of cables

1

Provided equipment

User manual

Battery voltage

12 V

Redundant

No

net. Weight

4.00 kg

Mounting preference

No preference

Mounting mode

Not rack-mountable

USB compatible

Yes

Network frequency

47...63 Hz

Input voltage limits

180...266 V

Maximum configurable power in VA

650 VA

Maximum configurable power in W

400 W

Output frequency

47...63 Hz sync to mains, 50/60 Hz +/- 1 Hz unsynchronised

UPS type

Standby

Wave type

Stepped approximation to a sinewave

Transfer time

6 ms typical : 10 ms maximum

Product certifications

CE, EAC

Standards

EN/IEC 62040-1:2019/A11:2021, EN/IEC 62040-2:2006/AC:2006, EN/IEC 62040-2:2018

Ambient air temperature for operation

0..40 °C

Relative humidity

0…90 %

Operating altitude

0...3000 ft

Ambient air temperature for storage

-15…45 °C

Storage Relative Humidity

0…95 %

Storage altitude

0.0000000000…4572.0000000000 m

Acoustic level

45 dBA

Alarm

Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

Surge energy rate

310 J

Number of battery replacement quantity

1

Number of power module free slots

0

Number of battery filled slots

0

Сontrol panel

LED status display with load and battery bar-graphs and on line : on battery : replace battery : and overload indicators

Switching current capacity

10 A

Max. input current

6 A

Battery power in VAH

75 VAh runtime

Number of battery free slots

0

Fiscalization 2.0 Article

G46.50.22

Number of power module filled slots

0
