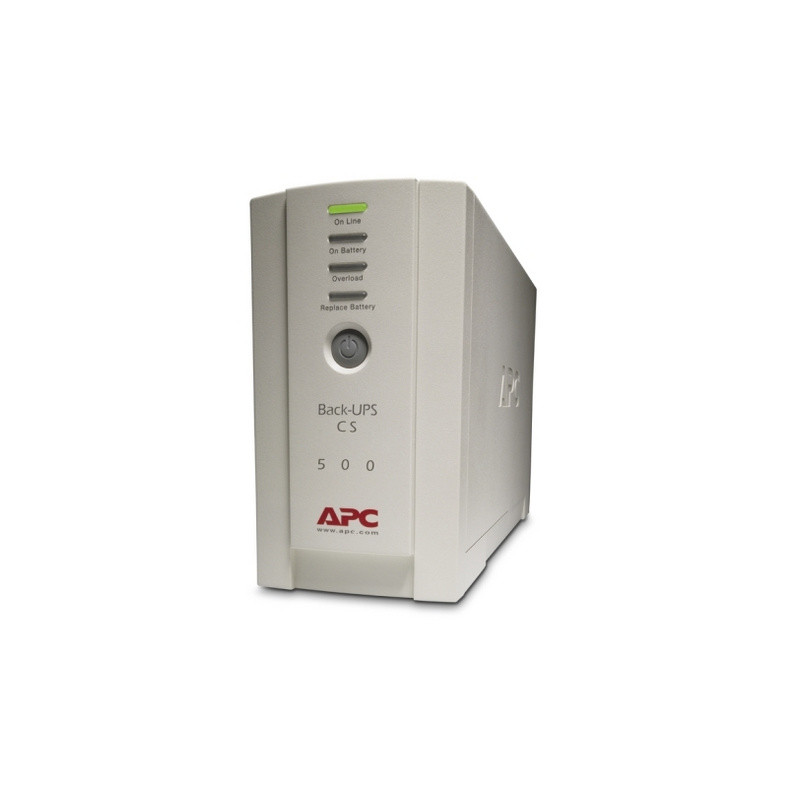

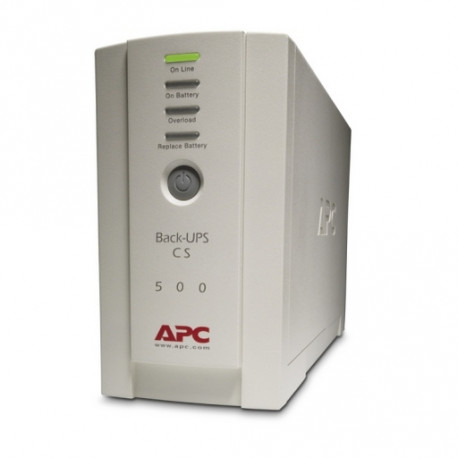

APC Back-UPS CS 500

Specifikacije

Width

9.10 cm

Height

16.50 cm

Depth

28.40 cm

Battery Recharge Time

8 h

Battery capacity

7.0 Ah

Battery Life

4...6 year(s)

Battery type

Lead-acid battery

Type of execution

Tower

Main Input Voltage

230 V

Main Output Voltage

230 V

Rated power in W

300 W

Rated power in VA

500 VA

Product or component type

Uninterruptible power supply (UPS)

Input Connection Type

IEC 60320 C14

Output Connection Type

3 IEC 60320 C13, 1 IEC 60320 C13 surge, 2 IEC Jumpers surge

Number of cables

2

Provided equipment

USB cable

Battery voltage

12 V

Redundant

No

net. Weight

6.32 kg

Mounting preference

No preference

Mounting mode

Not rack-mountable

USB compatible

No

Network frequency

47...63 Hz, 50/60 Hz +/- 3 Hz auto-sensing

Input voltage limits

160...300 V adjustable, 180...266 V

Maximum configurable power in VA

500 VA

Maximum configurable power in W

300 W

Output frequency

47...63 Hz sync to mains, 50/60 Hz +/- 1 Hz unsynchronised

UPS type

Standby

Wave type

Stepped approximation to a sinewave

Transfer time

6 ms typical : 10 ms maximum

Product certifications

C-Tick, CE, GOST, VDE

Standards

EN/IEC 62040-1:2019/A11:2021, EN/IEC 62040-2:2006/AC:2006, EN/IEC 62040-2:2018

Ambient air temperature for operation

0..40 °C

Relative humidity

0…95 %

Operating altitude

0...10000 ft

Ambient air temperature for storage

-15…45 °C

Storage Relative Humidity

0…95 %

Storage altitude

0.00…15240.00 m

Acoustic level

40 dBA

Alarm

Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

Surge energy rate

310 J

Battery charger power

10 W rated

Mounting location

Front

Number of battery replacement quantity

1

Number of power module free slots

0

Number of battery filled slots

0

Сontrol panel

LED status display with on line : on battery : replace battery and overload indicators

Noise suppression

Full time multi-pole noise filtering : 5% IEEE surge let-through : zero clamping response time : meets UL 1449

Switching current capacity

7 A

Max. input current

7 A

Battery power in VAH

83 VAh capacity, 84 VAh runtime

Number of battery free slots

0

Fiscalization 2.0 Article

G46.50.22

Number of power module filled slots

0
