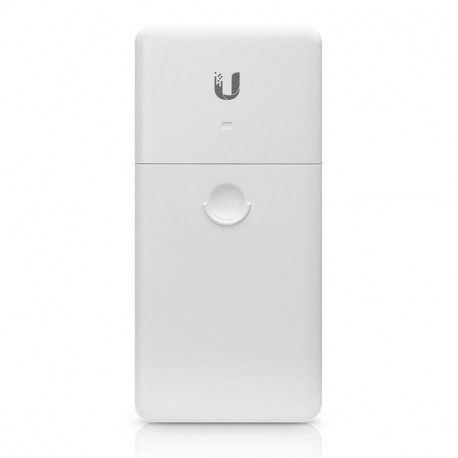

Ubiquiti NanoSwitch, outdoor 4-port Gigabit switch, PoE passthrough (N-SW)

POWER STRIP SIMPLICITY FOR 24V DEVICES
- Simply providing 24V 2-pair input makes NanoSwitch an outdoor 4-port unmanaged switch with "always on" 24V 2-pair output on three ports

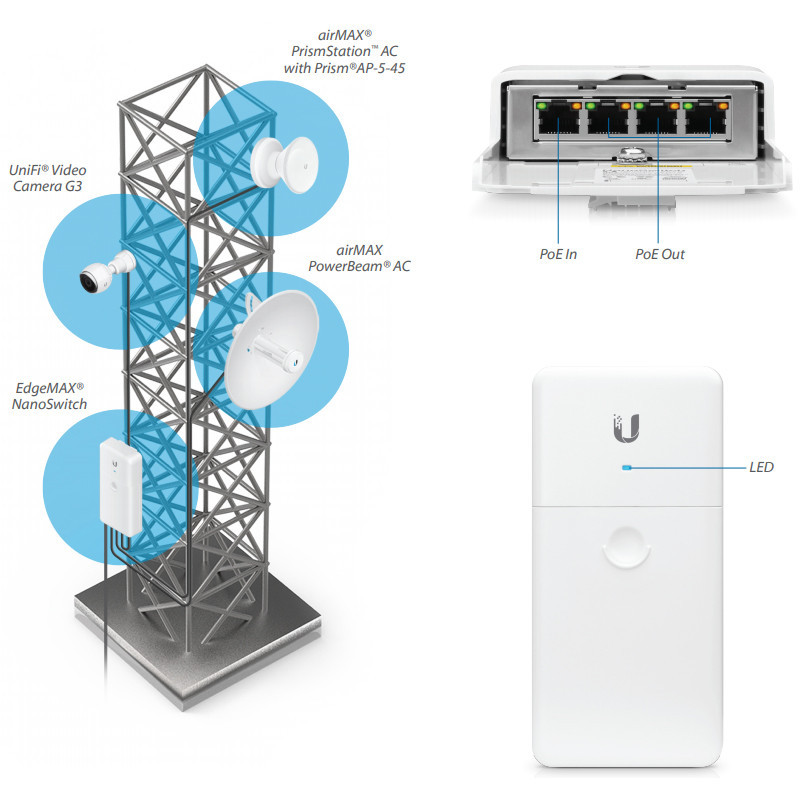

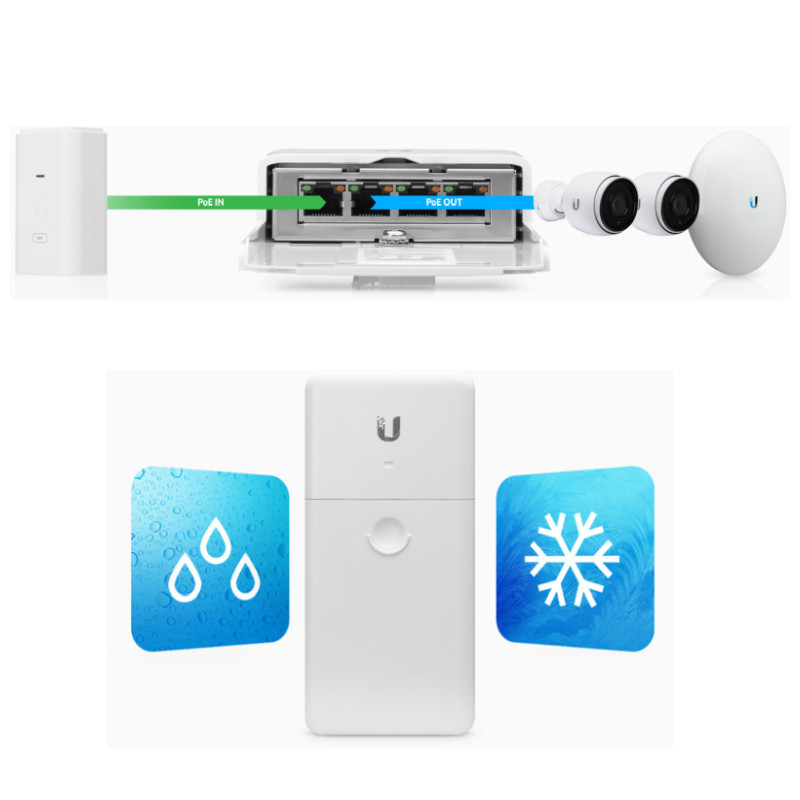

PoE PASSTHROUGH
- PoE In - RJ45 port supports 10/100/1000 Ethernet connections, and supports passive 24V, 2-pair PoE to power the switch
- PoE Out - RJ45 ports support 10/100/1000 Ethernet connections, and the three passive 24V, 2-pair PoE ports provide up to 24W PoE output

DESIGNED FOr OUTDOOR DURABILITY
- The NanoSwitch features an outdoor weatherproof form factor
- Operating Temperature: -30C to 70C (-22F to 158F)

Specifications
- Enclosure Characteristics: White Polycarbonate
- Total Non-Blocking Line Rate: 4 Gbps
- Typical Power Consumption: 1.5W
- Passive PoE Max. Wattage per Port: 24V, 2-Pair, 1A per Port (24W)
- Total Passive PoE Max. Wattage: 24V, 2-Pair, 1A for 3 Ports (24W)
- Power Method: Passive 24V, 2-Pair PoE In
- Power Supply: POE-24-24W PoE Adapter (Not Included)
- Passive PoE Voltage Range: 21.6 - 26.4V
- LEDs: Speed/Link/Activity (All Ports)
- Networking Interfaces: (4) 10/100/1000 Mbps RJ45 Ports
- PoE Interfaces: Passive 24V, 2-Pair PoE In
- ESD/EMP Protection: Air: +/-24 kV, Contact: +/-24 kV
- Operating Temperature: -30C to 70C (-22F to 158F)
- Operating Humidity: 5% to 95% Noncondensing
- Shock and Vibration: ETSI300-019-1.4 Standard
- Certifications: CE, FCC, IC
- Dimensions: 196.4×93.5×32.4 mm
- Weight: 271 g
