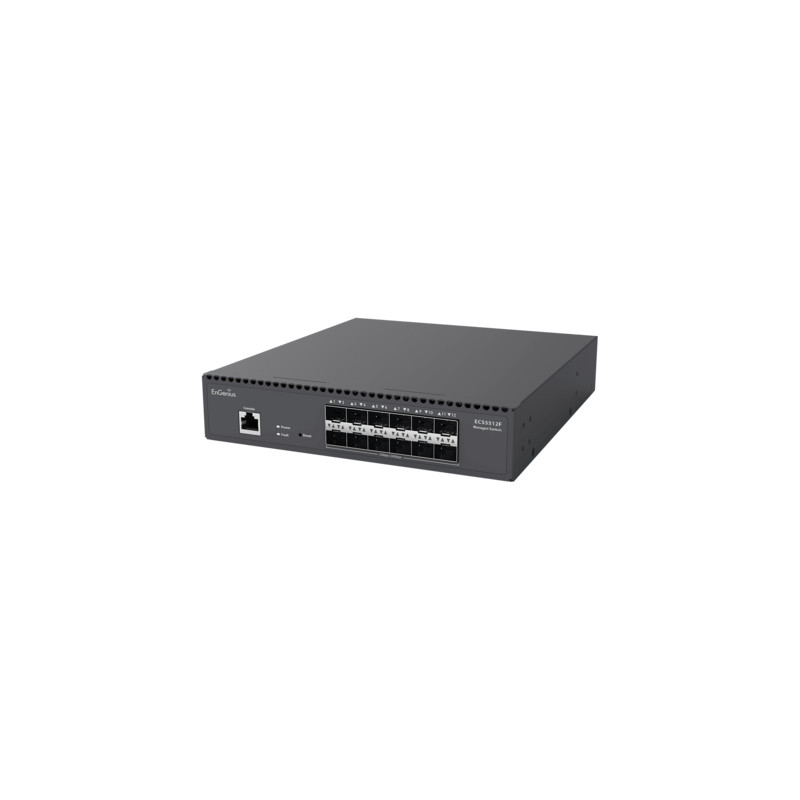

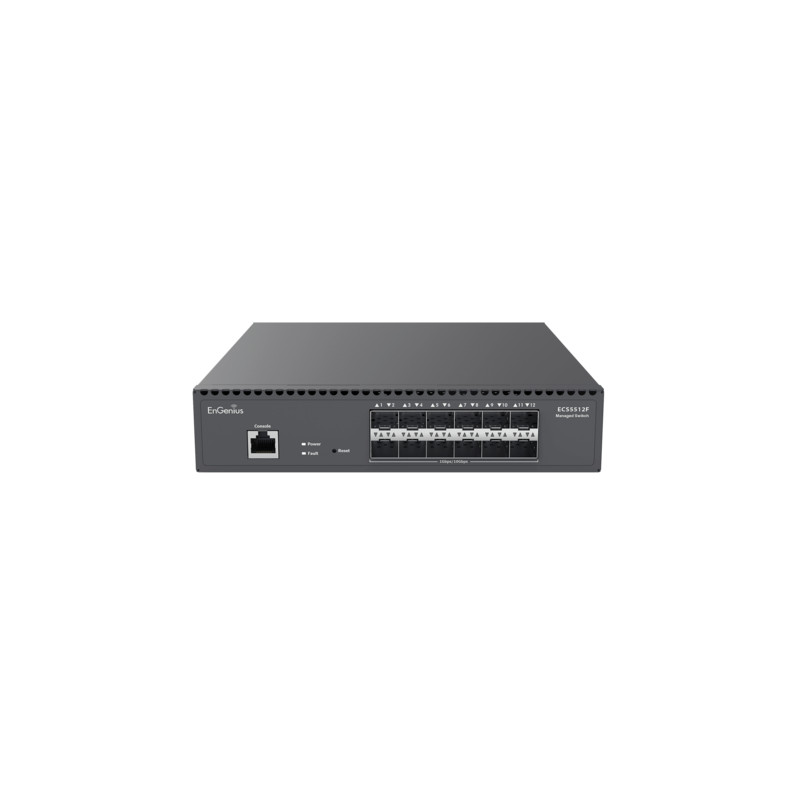

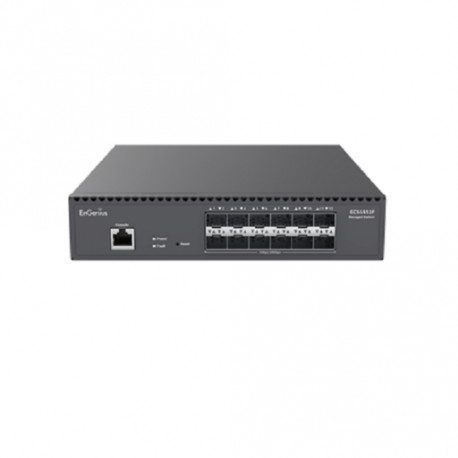

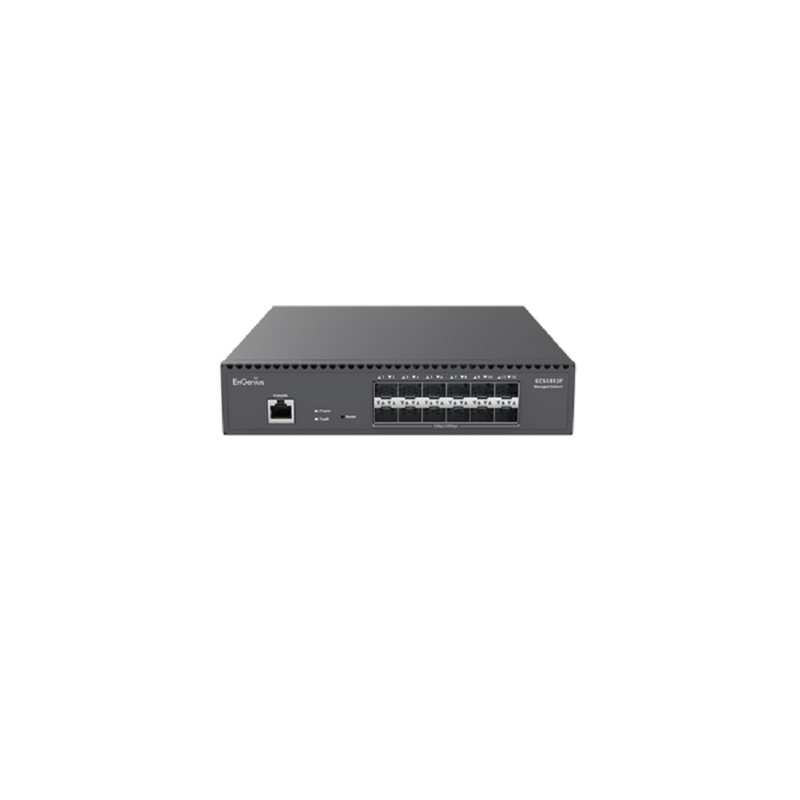

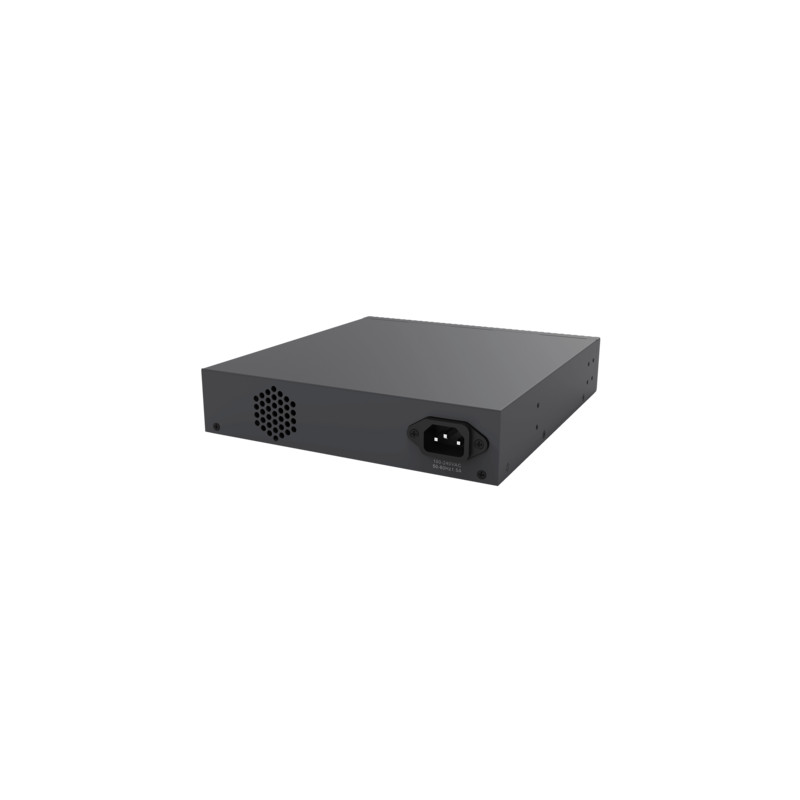

Cloud Managed Switch 12xSFP+ L2+ 19" 1/2 rack 1U

Specifikacije

Flash memory

128 MB

Power Source

100 ~ 240VAC, 50-60Hz

Port Standards

802.3u 100Base-TX Ethernet, 802.3ab 1000Base-T Ethernet, 802.3bz 2.5G/5GBase-T Ethernet, 802.3x Full-Duplex Flow Control

Network Ports

12xSFP+

Switching Capacity

240 Gbps

SDRAM

512 MB

System Indicators

Power LED, Fault LED

Port Indicators

Link/Activity/Speed (per SFP slot)

Network Management

EnGenius Cloud, Local Web GUI

MAC Address Table

32K

Jumbo frame size

10K

Multicast Group

Max 256 groups

MLD Snooping

MLD Snooping: v1

QoS Trust Mode

Cos/802.1p, DSCP, CoS/802.1p-DSCP

Scheduling Mechanism

Strict / WRR/ Strict + WRR

Bandwidth Control

Port-based bandwidth control (Ingress/Egress)

Port Security

Max. 256 Entries

Access Control List

MAC Based ACL, IPv4/IPv6 Based ACL, ACL Binding, Time base ACL

Web Graphical User Interface (GUI)

HTTP IPv4 / IPv6, HTTPS IPv4 / IPv6

SNMP

v1, v2c, v3

RMON

RMON 1,2,3,9

System Time

Time Setting/Daylight saving

Common L2 Features

802.1D Spanning Tree, 802.1w Rapid Spanning Tree, 802.1S Rapid Spanning Tree, Loopback Detection, Multicast Filitering, IGMP Snooping, 802.1Q VLAN tagging, 802.3x flow control, 802.3ad Link Aggregation, IPv4 DHCP Relay, IPv4 DHCP Snooping, IPv4 DHCP Snooping Source MAC Address Check-up, ARP Packet Validation (additional validation checks), Voice VLAN, Port-based VLAN, CoS Mapping, 802. 1X Radius Authentication Protocol, IPv4 Settings/ IPv6 Settings, Command Line Interface (CLI), SSH Server, Telnet Server, TFTP Client, Configuration Upgrade/ Backup, Simple Network Time Protocol (SNTP), SYSLOG, Broadcast/Unknown Multicast/Unknown Unicast Storm Control

Multiple IP Interface

20 IPv6 address

IPv4 Static Route

Max. 63 entries

IPv6 Static Route

Max. 21 entries
