> Ostalo>Mrežna oprema>10/100/1000 switch >24 + port>Cloud Managed Switch 24-port GbE PoE.at 410W 4x10Gb SFP+ L2 19i
Besplatna
dostava Cloud Managed Switch 24-port GbE PoE.at 410W 4x10Gb SFP+ L2 19i Prikaži uvećano
Prije Dalje

Engenius Networks

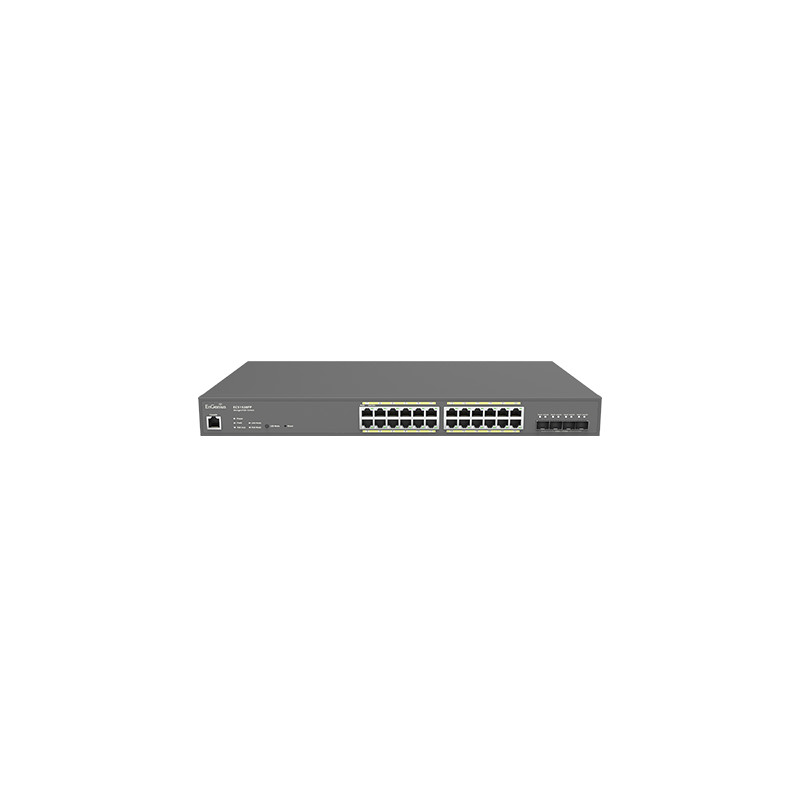

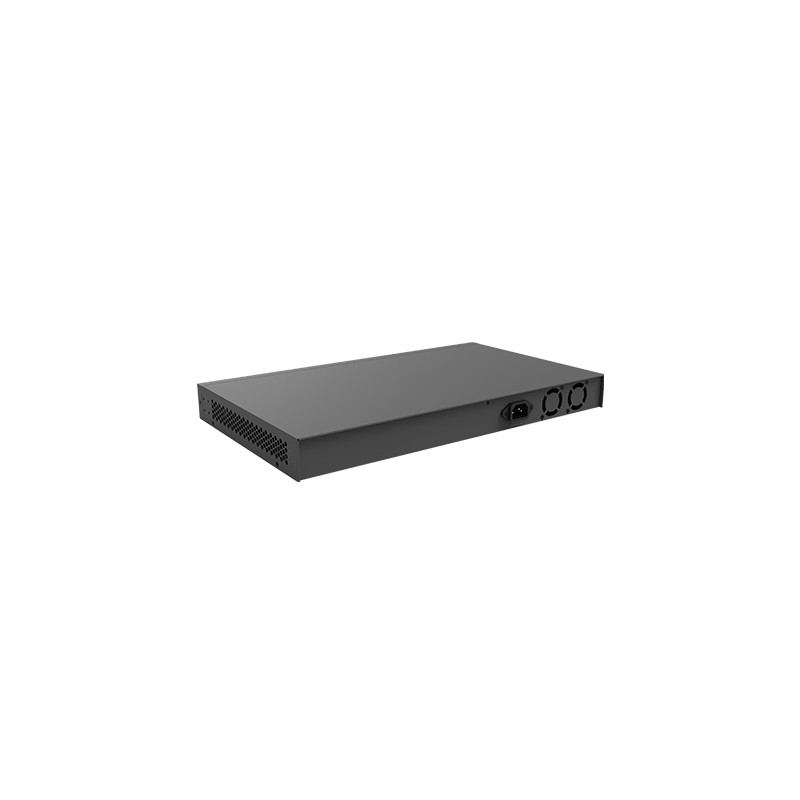

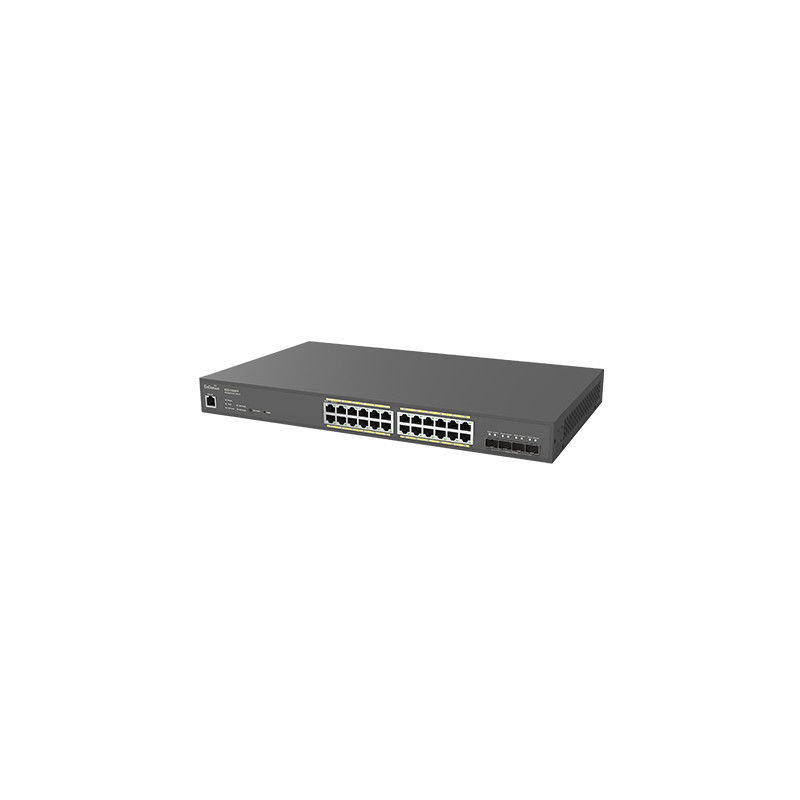

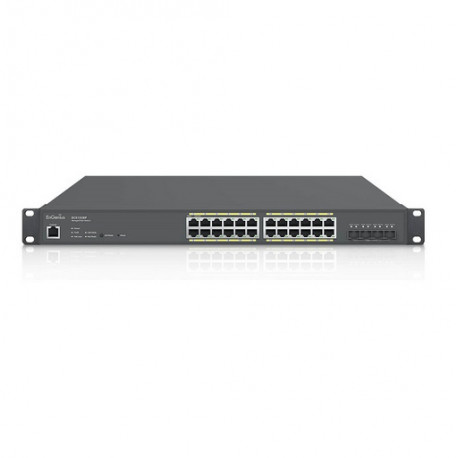

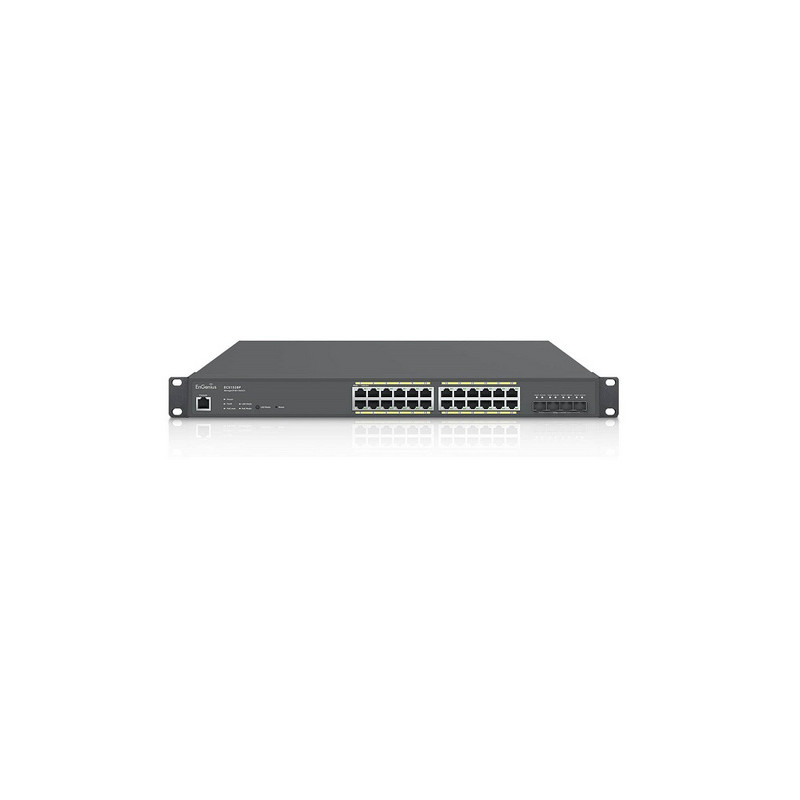

Cloud Managed Switch 24-port GbE PoE.at 410W 4x10Gb SFP+ L2 19i

ECS1528FP

Novi proizvod

Dobavljivo 1 kom kod dobavljača

Isporuka: 3 - 5 radnih dana

  • Jamstvo: 2 god.

Vaša prava iz zakonskog jamstva

Uplata na račun

644,88 €s PDV-omCijena na 10.9.2026.: 644,88 €

Plaćanje karticama

709,37 €

Cijena na 10.9.2026.: 709,37 €
12 × 59,11 € 6 × 118,23 € 3 × 236,46 €

Okvirna cijena po ratama karticama, s PDV-om

Isporuka: 3 - 5 radnih dana · besplatna dostava

Besplatno preuzimanje u Zagrebu: Mail Boxes Etc., Radnička cesta 20

Dodaj u listu želja

  • Diners Club International
  • Discover
  • Dinacard
  • WSPay
  • Google Pay
  • Visa
  • Mastercard
  • Maestro
  • Diners
  • Discover
  • DinaCard
  • KEKS Pay
  • PayPal
  • Google Pay
  • Bitcoin

Specifikacije

Flash memory
128 MB
Power Source
100 ~ 240VAC, 50-60Hz
Port Standards
802.3 10Base-T Ethernet, 802.3u 100Base-TX Ethernet, 802.3ab 1000Base-T Ethernet, 802.3x Full-Duplex Flow Control
Network Ports
24xGE, 4xSFP+
Switching Capacity
128 Gbps
SDRAM
512 MB
PoE Capable Ports
1-24
Total PoE Budget
410 W
System Indicators
Power LED, Fault LED, PoE Max LED, LAN Mode LED, PoE Mode LED
Port Indicators
Link/Activity/Speed (per Ethernet port), Link/Activity/Speed (per SFP slot)
Network Management
EnGenius Cloud, Local Web GUI
MAC Address Table
16K
Jumbo frame size
10K
Multicast Group
Max 256 groups
MLD Snooping
MLD Snooping: v1
QoS Trust Mode
Cos/802.1p, DSCP, CoS/802.1p-DSCP
Scheduling Mechanism
Strict / WRR/ Strict + WRR
Bandwidth Control
Port-based bandwidth control (Ingress/Egress)
Port Security
Max. 256 Entries
Access Control List
MAC Based ACL, IPv4/IPv6 Based ACL, ACL Binding, Time base ACL
Web Graphical User Interface (GUI)
HTTP IPv4 / IPv6, HTTPS IPv4 / IPv6
SNMP
v1, v2c, v3
RMON
RMON 1,2,3,9
System Time
Time Setting/Daylight saving
Common L2 Features
802.1D Spanning Tree, 802.1w Rapid Spanning Tree, 802.1S Rapid Spanning Tree, Loopback Detection, Multicast Filitering, IGMP Snooping, 802.1Q VLAN tagging, 802.3x flow control, 802.3ad Link Aggregation, IPv4 DHCP Relay, IPv4 DHCP Snooping, IPv4 DHCP Snooping Source MAC Address Check-up, ARP Packet Validation (additional validation checks), Voice VLAN, Port-based VLAN, CoS Mapping, 802. 1X Radius Authentication Protocol, IPv4 Settings/ IPv6 Settings, Command Line Interface (CLI), SSH Server, Telnet Server, TFTP Client, Configuration Upgrade/ Backup, Simple Network Time Protocol (SNTP), SYSLOG, Broadcast/Unknown Multicast/Unknown Unicast Storm Control
Multiple IP Interface
20 IPv6 address
IPv4 Static Route
Max. 63 entries
IPv6 Static Route
Max. 21 entries
Fiscalization 2.0 Article
G46.50.21

Opis

Port Standards
802.3 10Base-T Ethernet
802.3u 100Base-TX Ethernet
802.3ab 10000Base-T Ethernet
802.3x Full-Duplex Flow Control

Network Ports
(24)10/100/1000 Mbps Ports

Performance
Switching Capacity: 128Gbps
Forwarding Mode: Store-and-Forward
Flash Memory: 128 MB
SDRAM:512MB
Packet Buffer Memory: 2M
Address Database Size: 16K MAC Addresses

PoE Capability
PoE Standard: Ports 1~8 Support IEEE 802.3af
PoE Capable Ports: All Gigabit Ethernet Ports

PoE Budget
410 W

Power Source
AC Input: 100 ~ 240VAC, 50-60Hz, 1.2A
DC Output: 54V/1.67A

System Indicators
Power LED
Fault LED
PoE Max LED
LAN Mode LED
PoE Mode LED

Port Indicators
Link/Activity/Speed (per Ethernet port)
Link/Activity/Speed (per SFP slot)

Network Management
EnGenius Cloud
Local Web GUI

MAC Address Table
16K

Jumbo frame size
10K

Multicast Group
Max 256 groups

MLD Snooping
MLD Snooping: v1

QoS-number of Priority Queues Supported/
Queue 8
QoS Trust Mode
Cos/802.1p
DSCP
CoS/802.1p-DSCP

Scheduling Mechanism
Strict / WRR/ Strict + WRR

Bandwidth Control
Port-based bandwidth control (Ingress/Egress)

Port Security
Max. 256 Entries

Access Control List (ACL)
MAC Based ACL
IPv4/IPv6 Based ACL
ACL Binding
Web Graphical User Interface (GUI)
HTTP IPv4 / IPv6
HTTPS IPv4 / IPv6

SNMP
SNMP v1/v2c/v3 Support

RMON
RMON 1,2,3,9

System Time
Time Setting/Daylight saving

Common L2 Features
802.1D Spanning Tree
802.1w Rapid Spanning Tree
802.1S Rapid Spanning Tree
Loopback Detection
Multicast Filitering
IGMP Snooping
802.1Q VLAN tagging
802.3x flow control
802.3ad Link Aggregation
IPv4 DHCP Relay
IPv4 DHCP Snooping
IPv4 DHCP Snooping Source MAC Address Check-up
ARP Packet Validation (additional validation checks)
Voice VLAN
Port-based VLAN
CoS Mapping
802. 1X Radius Authentication Protocol
IPv4 Settings/ IPv6 Settings
IEEE 802. 3az Energy Efficeient Ethernet (EEE)
Command Line Interface (CLI)
SSH Server
Telnet Server
TFTP Client
Configuration Upgrade/ Backup
Simple Network Time Protocol (SNTP)
SYSLOG

Multiple IP Interface
20 IPv6 address

ARP Table
Max. 192 ARP entries

IPv4 Static Route
Max. 63 entries

IPv6 Static Route
Max. 21 entries

Temperature Range
Operating: 32 to 122° F/0 to 50° C
Storage: -4 to 158° F/-20 to 70 ° C

Humidity (Non-Condensing)
5% – 95%

ECS1528FP Device
Weight: 4.7 Kg
Width: 260 mm
Length: 440 mm
Height: 44 mm
