Cloud Managed Switch 8-port GbE PoE.af 55W 2GbE smart+ DT Prikaži uvećano
Prije Dalje

Engenius Networks

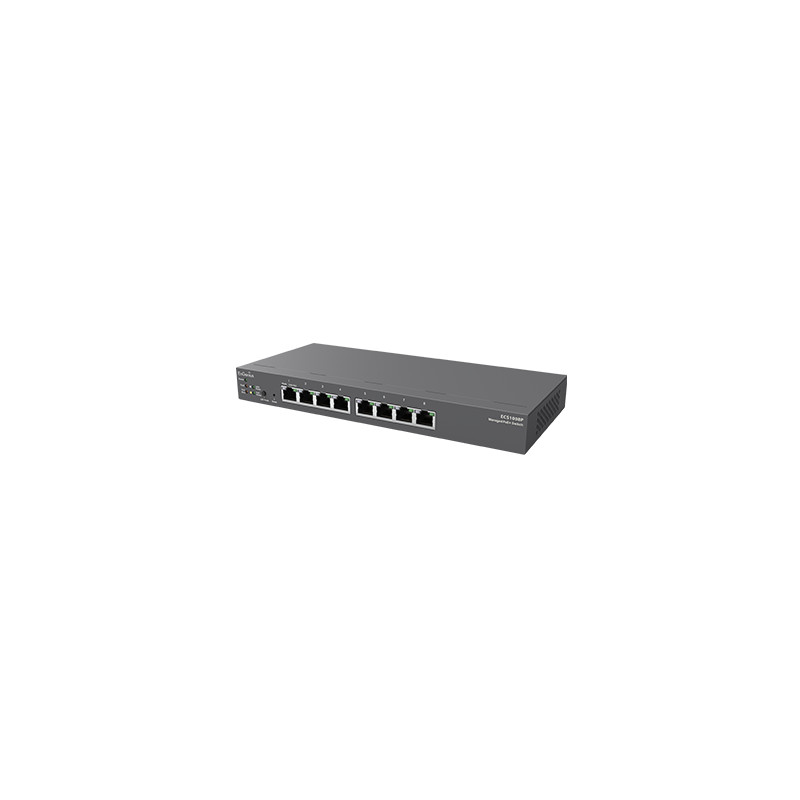

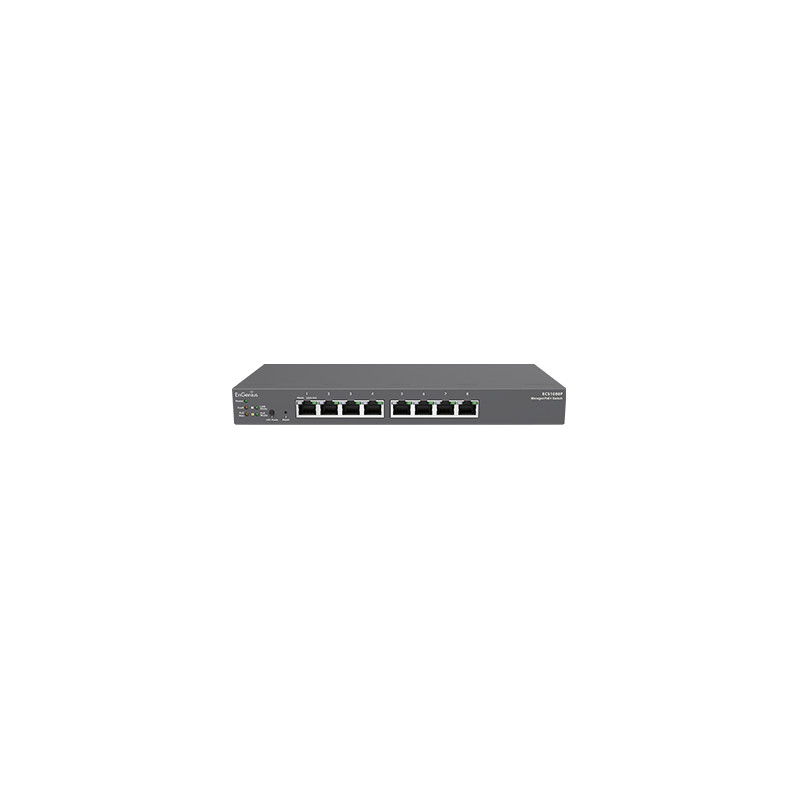

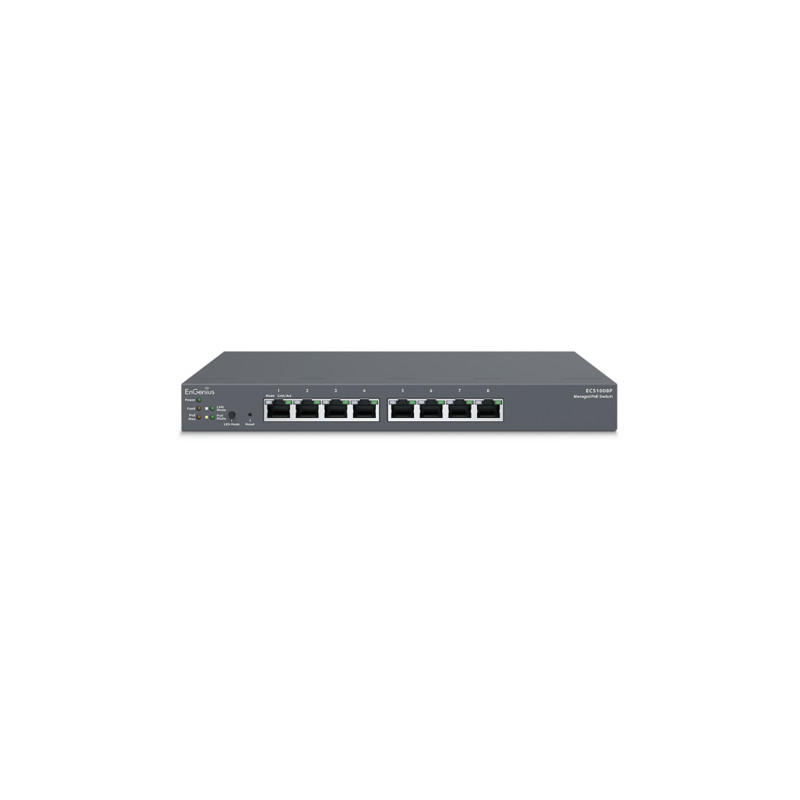

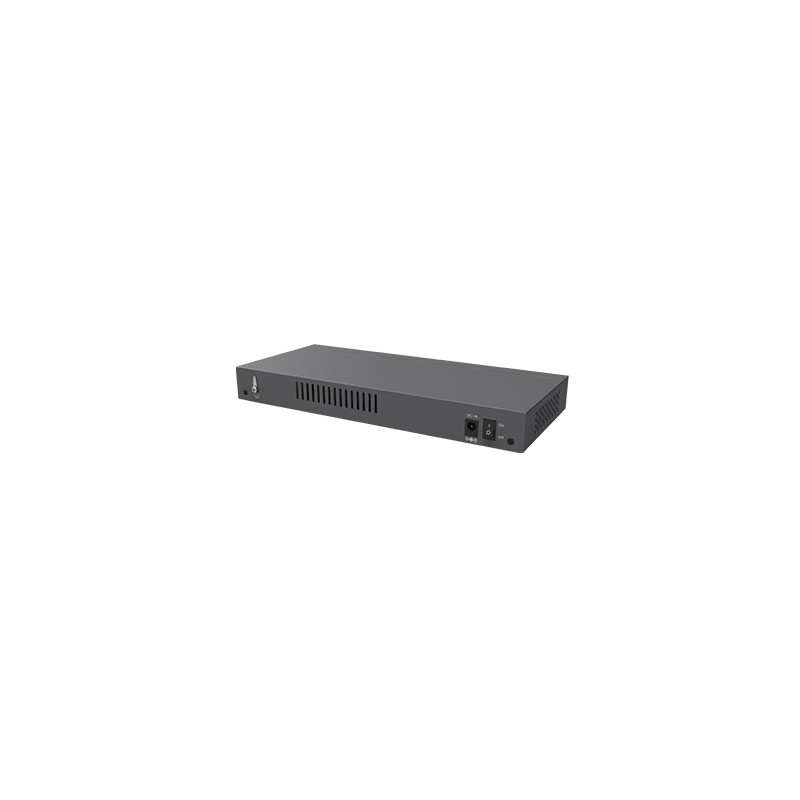

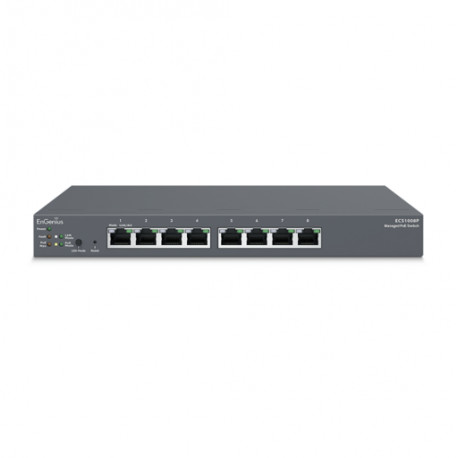

Cloud Managed Switch 8-port GbE PoE.af 55W 2GbE smart+ DT

ECS1008P

Novi proizvod

Dobavljivo 2 kom kod dobavljača

Isporuka: 3 - 5 radnih dana

  • Jamstvo: 2 god.

Vaša prava iz zakonskog jamstva

Uplata na račun

171,88 €s PDV-omCijena na 10.9.2026.: 171,88 €

Plaćanje karticama

189,07 €

Cijena na 10.9.2026.: 189,07 €
12 × 15,76 € 6 × 31,51 € 3 × 63,02 €

Okvirna cijena po ratama karticama, s PDV-om

Isporuka: 3 - 5 radnih dana

Besplatno preuzimanje u Zagrebu: Mail Boxes Etc., Radnička cesta 20

Dodaj u listu želja

  • Diners Club International
  • Discover
  • Dinacard
  • WSPay
  • Google Pay
  • Visa
  • Mastercard
  • Maestro
  • Diners
  • Discover
  • DinaCard
  • KEKS Pay
  • PayPal
  • Google Pay
  • Bitcoin

Specifikacije

Flash memory
32 MB
Power Source
100 ~ 240VAC, 50-60Hz
Port Standards
802.3 10Base-T Ethernet, 802.3u 100Base-TX Ethernet, 802.3ab 1000Base-T Ethernet, 802.3x Full-Duplex Flow Control
Network Ports
8xGE
Switching Capacity
16 Gbps
SDRAM
256 MB
PoE Capable Ports
Ports 1-8 (802.3af/at)
Total PoE Budget
55 W
System Indicators
Power LED, Fault LED, PoE Max LED, LAN Mode LED, PoE Mode LED
Port Indicators
Link/Activity/Speed (per Ethernet port)
Network Management
EnGenius Cloud, Local Web GUI
MAC Address Table
8K
Jumbo frame size
10K
Multicast Group
Max 256 groups
MLD Snooping
MLD Snooping: v1
QoS Trust Mode
Cos/802.1p, DSCP, CoS/802.1p-DSCP
Scheduling Mechanism
Strict / WRR/ Strict + WRR
Bandwidth Control
Port-based bandwidth control (Ingress/Egress)
Port Security
Max. 256 Entries
Access Control List
MAC Based ACL, IPv4/IPv6 Based ACL, ACL Binding
Web Graphical User Interface (GUI)
HTTP IPv4 / IPv6, HTTPS IPv4 / IPv6
SNMP
v1, v2c, v3
RMON
RMON 1,2,3,9
System Time
Time Setting/Daylight saving
Common L2 Features
802.1D Spanning Tree, 802.1w Rapid Spanning Tree, 802.1S Rapid Spanning Tree, Loopback Detection, Multicast Filitering, IGMP Snooping, 802.1Q VLAN tagging, 802.3x flow control, 802.3ad Link Aggregation, IPv4 DHCP Relay, IPv4 DHCP Snooping, IPv4 DHCP Snooping Source MAC Address Check-up, ARP Packet Validation (additional validation checks), Voice VLAN, Port-based VLAN, CoS Mapping, 802. 1X Radius Authentication Protocol, IPv4 Settings/ IPv6 Settings, Command Line Interface (CLI), SSH Server, Telnet Server, TFTP Client, Configuration Upgrade/ Backup, Simple Network Time Protocol (SNTP), SYSLOG, Broadcast/Unknown Multicast/Unknown Unicast Storm Control
Multiple IP Interface
20 IPv6 address
IPv4 Static Route
Max. 63 entries
IPv6 Static Route
Max. 21 entries
Fiscalization 2.0 Article
G46.50.21

Opis

Port standards
802.3 10Base-T Ethernet 802.3u 100Base-TX Ethernet 802.3ab 1000Base-T Ethernet 802.3x Full Duplex Flow Control

Network Port – Multi-Gigabit Ethernet
Ports 8 ports 10/100/1000 Mbps

Switching capacity
16 Gbps


256 MB SDRAM

Flash memory
32 MB

PoE-enabled ports
Ports 1-8 (802.3af/at)

f General PoE budget
55 Watts

Power supply
From 100 to 240 VAC, 50/60 Hz

System indicators
Power indicator Fault indicator Maximum PoE value indicator LAN mode indicator PoE mode indicator

Port indicators
Channel/Activity/Speed (for each Ethernet port)

Network management
EnGenius Cloud Local Web Interface

MAC Address Table
8K

Jumbo Frame Size
10 thousand .

Multicast group
Max. 256 groups

MLD Tracking
MLD Tracking: v1

QoS-the number of priority queues supported
Turn 8

QoS Trust Mode
Cos/802.1p DSCP CoS/802.1p-DSCP

The planning mechanism
Strict / WRR/ Strict + WRR

Bandwidth control
Port-based bandwidth management (inbound/outbound)

Port security
Max. 256 entries

The Access Control List (ACL)
is a MAC-based ACL. IPv4/IPv6-based ACL binding.

Web-based Graphical User Interface (GUI)
HTTP IPv4/IPv6 HTTPS IPv4/IPv6

SNMP
Support for SNMP v1/v2c/v3

RMON
RMON 1,2,3,9

System time
Setting the time/Summer time

General L2 functions
Spanning Tree 802.1D 802.1w Rapid Spanning Tree 802.1S Rapid Spanning Tree Ring Check Detection Multicast Filtering IGMP 802.1Q VLAN Tagging 802.3x 802.3ad Flow Control IPv4 Channel Aggregation DHCP Relay IPv4 DHCP Snooping IPv4 DHCP Snooping MAC Address Source ARP Packet Verification (additional checks) Voice VLAN VLAN Mapping based on CoS 802.1X Ports Radius Authentication Protocol IPv4 Settings/IPv6 Settings IEEE 802.3az Energy Efficient Ethernet (EEE) Command Line Interface (CLI) SSH Server Telnet Server TFTP Server Client Configuration Update/Backup Simple Network Time Protocol (SNTP) SYSLOG

Multiple IP interface
20 IPv6 address

ARP table
Max. 192 ARP entries

Static IPv4 route
Max. 63 entries

Static IPv6 route
Max. 21 entries

Temperature range
In working condition: 32°F to 104°F (0°C to 40°C)

Humidity (non-condensing)
Operation: 5% – 95%
