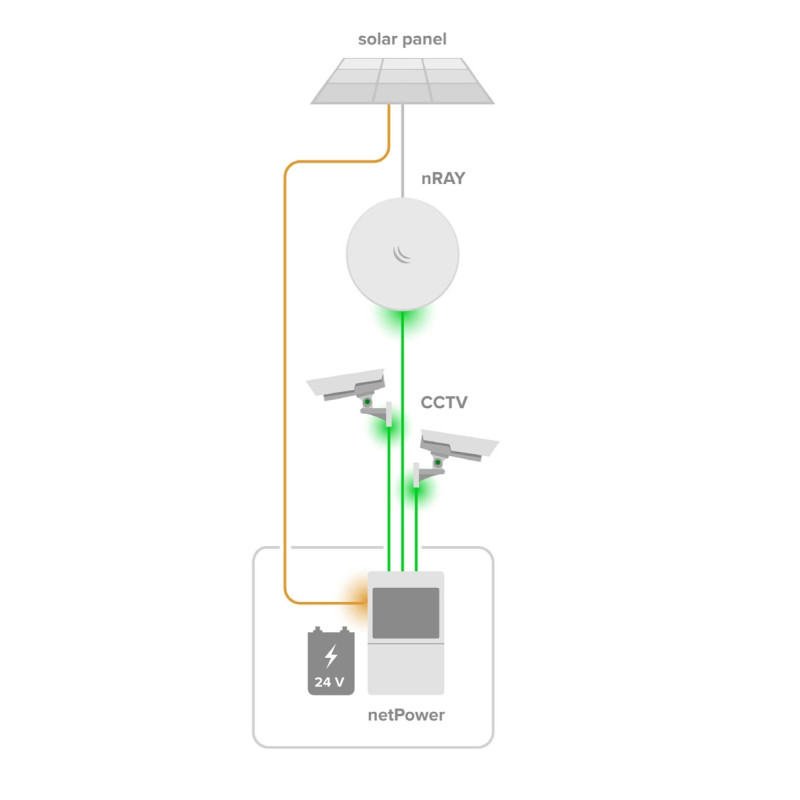

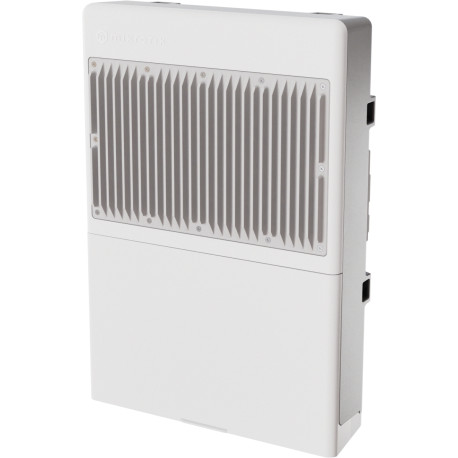

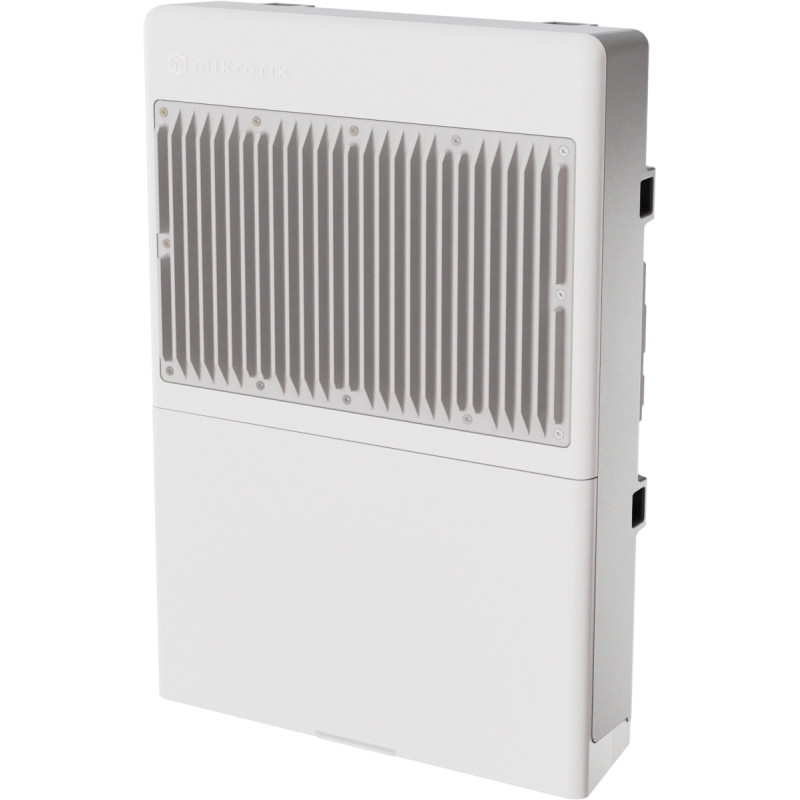

Low-cost. Tough. And always ON! Compact PoE switch with built-in UPS and smart battery charger – because your CCTV cameras and access points deserve true off-the-grid resilience.
Features: - Operating System: SwOS Lite - Storage size: 64 KB - Storage type: FLASH - MTBF: Approximately 200'000 hours at 25C - Tested ambient temperature: -40°C to 70°C
POWERING - Number of DC inputs: 3 (2-pin terminal) - 2-pin terminal input Voltage: 24-57 V (Battery 22-30 V) - Max power consumption: 208 W - Max power consumption without attachments: 9 W - Cooling type: Passive
PoE-OUT - PoE-out ports: Ether1-Ether8 - PoE out: 802.3af/at - Low voltage PoE-Out current limit: 1.0 A - High voltage PoE-Out current limit: 0.64 A - Total output power: 120

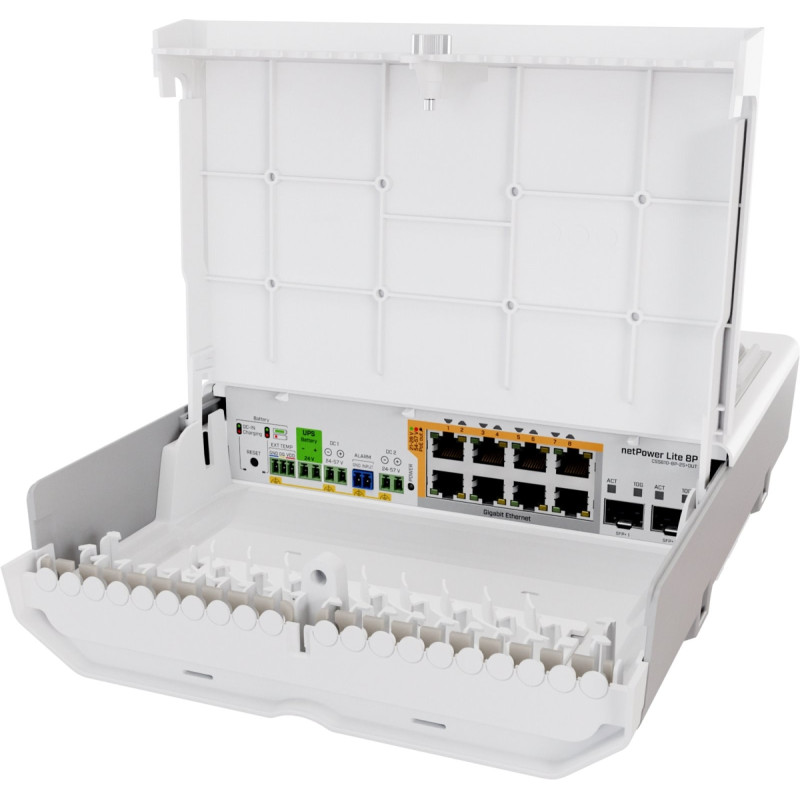

ETHERNET - 10/100/1000 Ethernet ports: 8 - Number of 1G Ethernet ports with PoE-out: 8
FIBER - SFP+ ports: 2
OTHER - CPU temperature monitor: Yes - Voltage Monitor: Yes - Current Monitor: Yes
