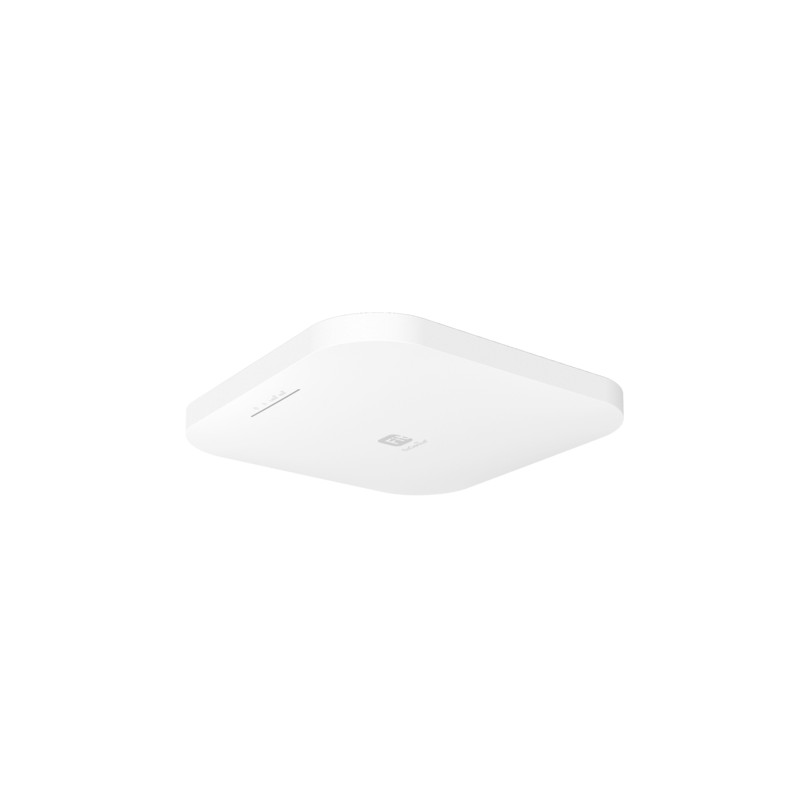

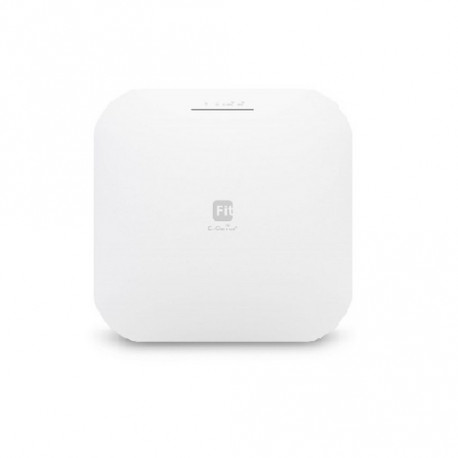

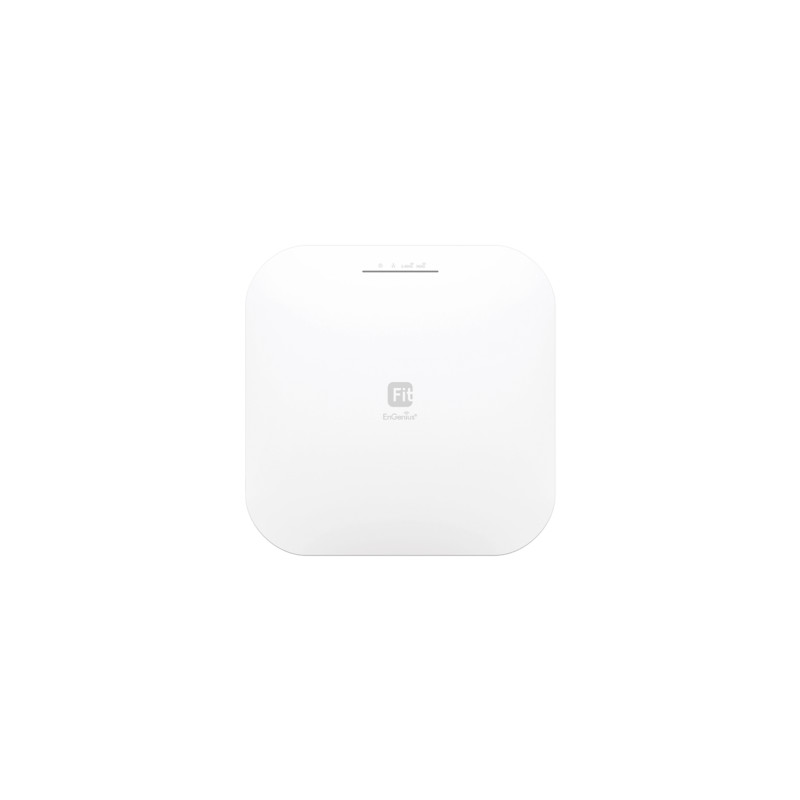

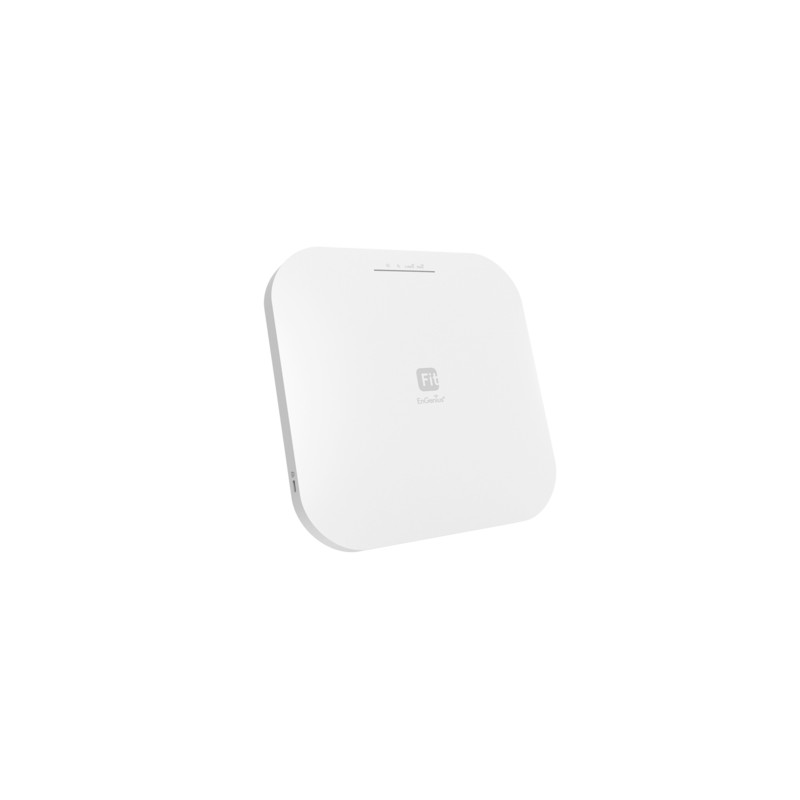

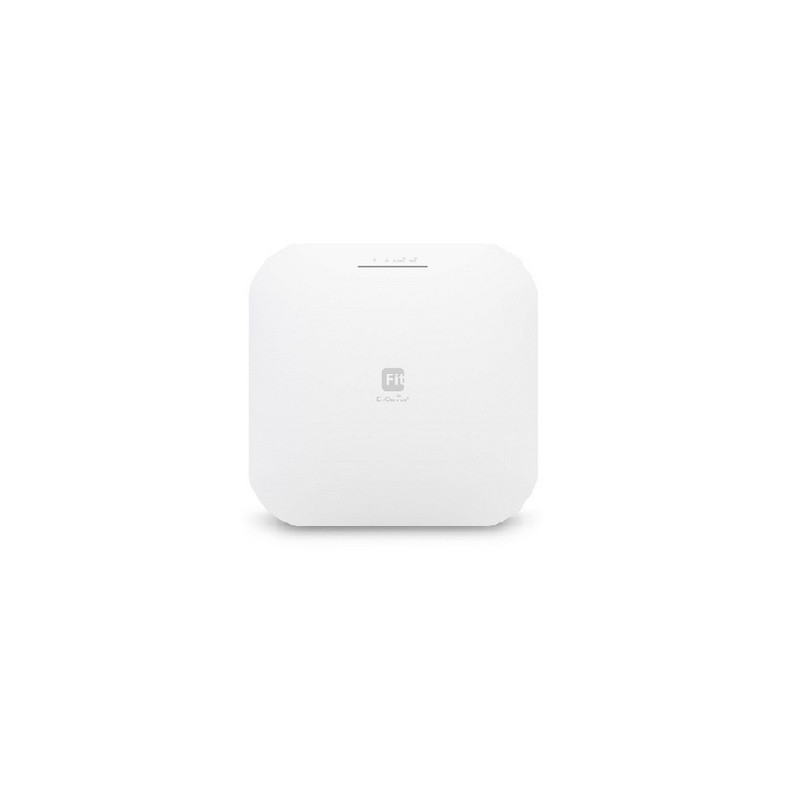

Managed AP Indoor Dual Band 11ax 1148+2400Mbps 4T4R 2.5GbE PoE.at(+) 8x3dBi ia

Standards
IEEE 802.11ax at 2.4GHz
IEEE 802.11ax at 5 GHz

Backward compatible with 802.11a/b/g/n/ac

Processor
2.0GHz Quad-core Qualcomm® ARM Cortex A53s Processor

The antenna
4 x 2.4GHz: 5 dBi
4 x 5 GHz: 6 dBi
Integrated omnidirectional antenna

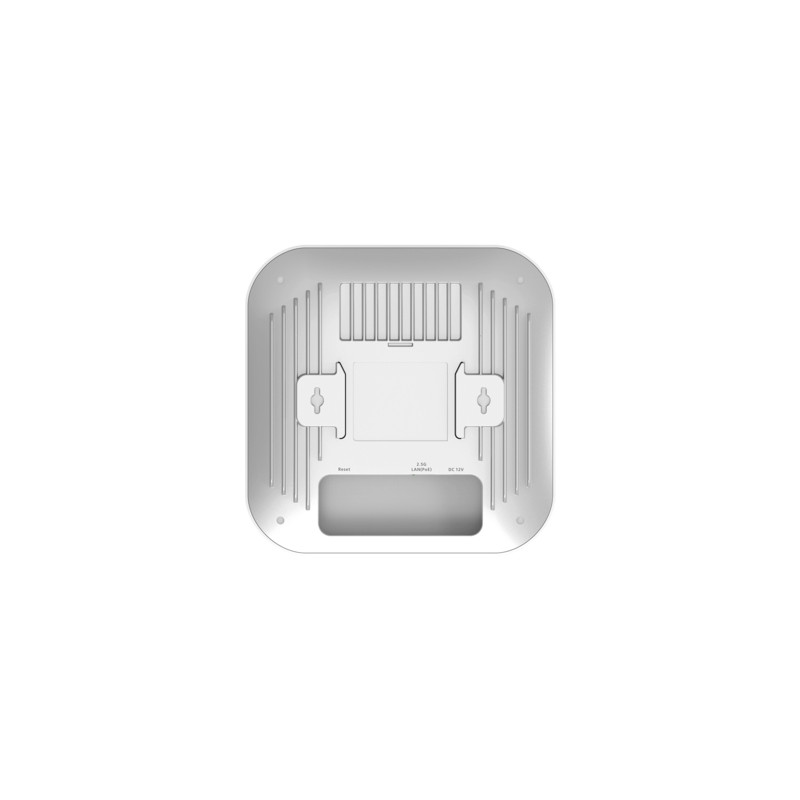

Physical interface
1 Ethernet port 10/100/1000/2500 N-BASE-T, RJ-45
1 DC connector
1 x Reset Button

LED indicators
1 x Power
1 x LAN
1 x 2.4GHz
1 x 5 GHz

Power supply
Power supply via Ethernet: 802.3at input
12 V DC / 2 A

The maximum power consumption
is 19.5 watts

Operating frequency
Simultaneous use of two 2.4GHz and 5 GHz radio modules

Operating modes
AP, grid

Frequency radio
2.4GHz: 2400-2482 MHz
5 GHz: 5150-5250 MHz, 5250-5350 MHz, 5470-5725 MHz, 5725-5850 MHz

Transmission power
Up to 23 dBm at 2.4GHz
Up to 23 dBm at 5 GHz
(Maximum power is limited by regulatory requirements)

Tx Beam Shaping (TxBF)

Radio circuits/spatial stream
4x4:4

SU-BY
Four (4) spatial SU-MIMO streams for 2.4GHz and four spatial SU-MIMO streams for 5 GHz with wireless data transfer speeds up to 3548 Mbps per wireless client device with 2.4GHz and 5 GHz radio modules.

MOO-BY
Four (4) spatial Multiple (MU)-MIMO streams with wireless data transfer speeds up to 2400 Mbit/s for simultaneous transmission of two (2) two streams of MU-MIMO 11ax-enabled wireless client devices at frequencies below 5 GHz.

Four (4) multiple (MU)-MIMOS with wireless data transfer speeds up to 1148 Mbit/s for simultaneous transmission of two streams of wireless client devices with support for MUMIMO 11ax at a frequency below 2.4 GHz.

Supported data transfer rates (Mbps):
802.11ax:
2.4GHz: 9 to 1148 (MCS0 to MCS11, NSS = 1 to 4)
5 GHz: 18 to 2400 (MCS0 to MSC11, NSS = 1 to 4)
802.11b: 1, 2, 5.5, 11
802.11a/g: 6, 9, 12, 18, 36, 48, 54
802.11 n: 6.5 to 600 Mbps (MCS0 to MCS31)
802.11ac: 6.5 to 1733 Mbps (MCS0 to MCS9, NSS = 1 to 4)

Supported radio technologies
802.11ax: Orthogonal Frequency Division Multiple Access (OFDMA)
802.11b: Direct Sequence Spectrum Extension (DSSS)
802.11ac/a/g/n: Multiple Orthogonal Frequency division (OFDM)

Sewage system
802.11ax supports high efficiency (HE) — HE 20/40/80MHz.
802.11ac supports Very high bandwidth (VHT) — VHT 20/40/80MHz.
802.11n supports high bandwidth (HT) — HT 20/40MHz.
802.11n supports very high bandwidth in the 2.4GHz band – VHT40 MHz (256-QAM).
802.11n/ac/ax packet Aggregation: A-MPDU, A-SPDU

Supported modulation
802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM
802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
802.11b: BPSK, QPSK, CCK

Multiple BSSID
8 SSIDs for 2.4GHz and 5 GHz radio modules.

VLAN marking
Supports SSID-VLAN 802.1q tagging.
Cross-band end-to-end VLAN access
VLAN Management

The spanning tree
Supports the 802.1d spanning tree protocol.

QoS (Quality of Service)
Complies with the IEEE 802.11e
VMM standard

SNMP
v1, v2c, v3

IIB
I/II, private MIB

Wireless security
WPA3
WPA2 Corporate (AES)
WPA2 AES-PSK
Hide the SSID in beacons
MAC address filtering, up to 32 MAC addresses per SSID
List of connected wireless STA (clients)
SSH tunnel
Client isolation

Temperature range
Working temperature: 32°F~104°F (0°C~40°C)
Storage: -40°F~176°F (-40°C~80°C)

Humidity (non-condensing)
In working condition: 90% or less
Storage: 90% or less

EWS377-FIT device
Weight: 1.70 pounds. (776 g)
Length: 8.27 inches (210 mm)
Width: 8.27 inches (210 mm)
Height: 1.31 inches (33.2mm)

Packaging
Weight: 2.36 pounds. (1072 g)
Length: 9.65 inches (245 mm)
Width: 9.65 inches (245 mm)
Height: 3.35 inches (85 mm)
