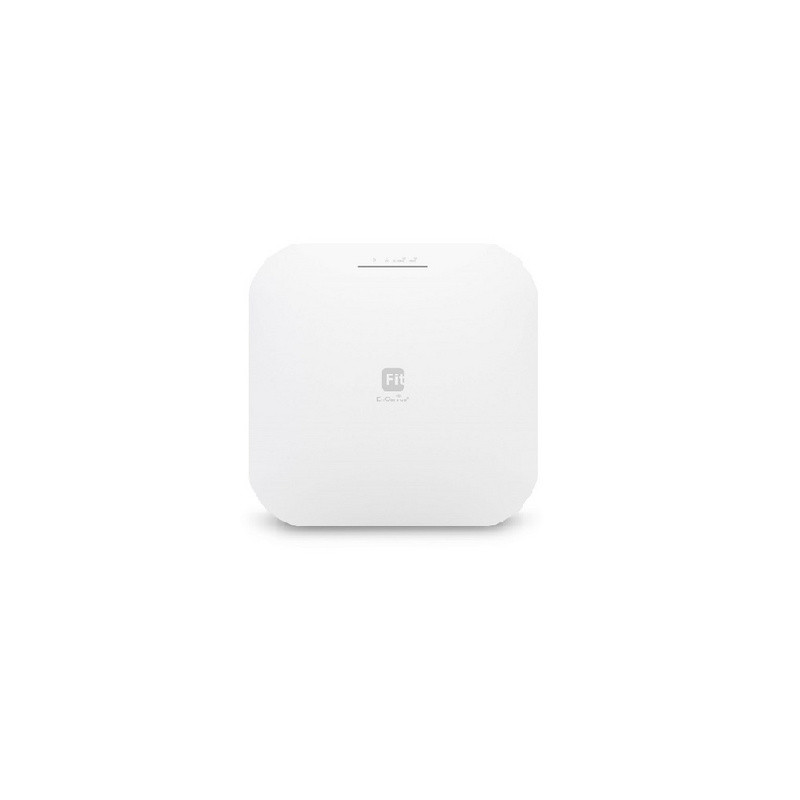

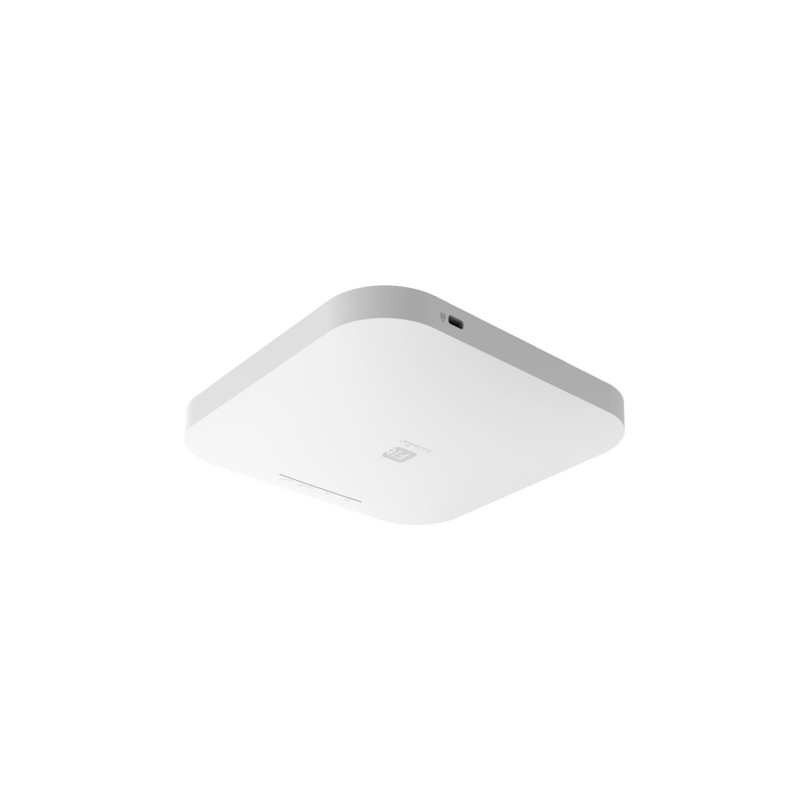

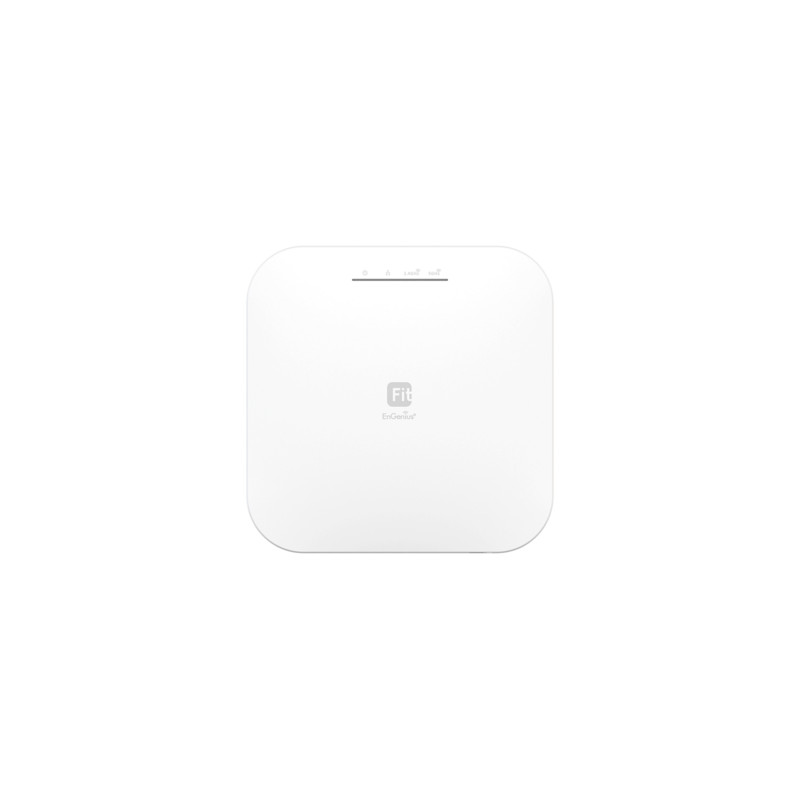

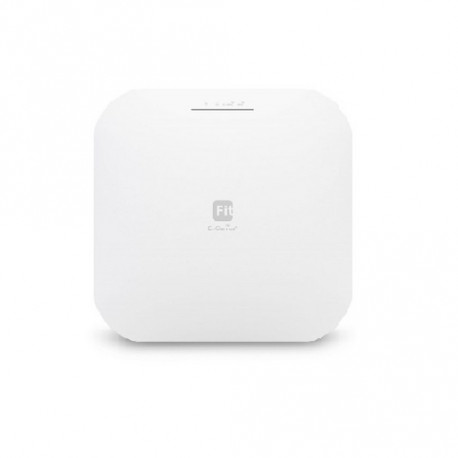

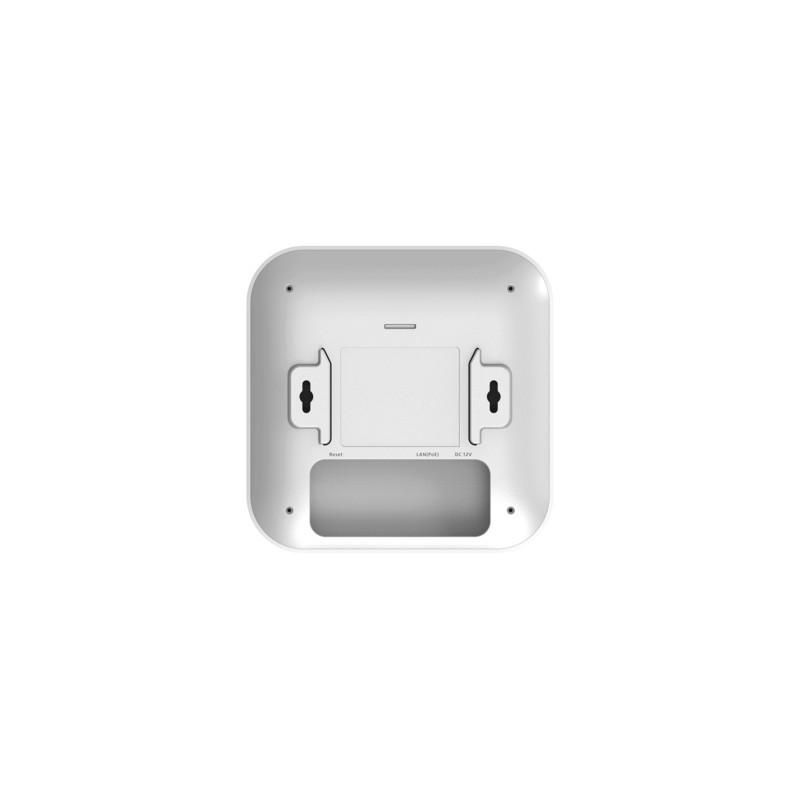

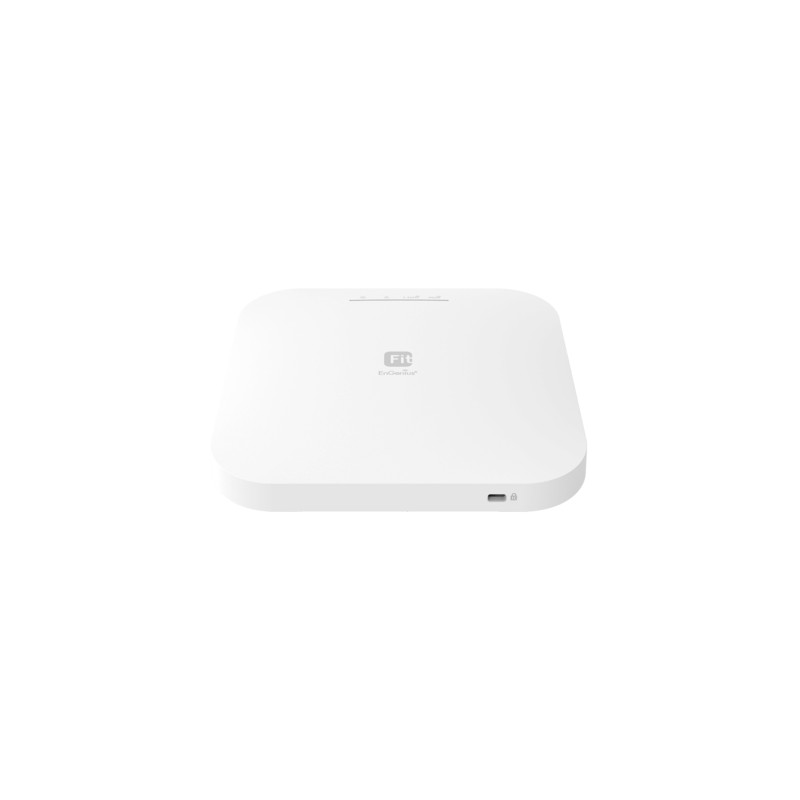

Managed AP Indoor Dual Band 11ax 574+1200Mbps 2T2R GbE PoE.af 4x3dBi ia

Specifikacije

Processor

Qualcomm Quad-Core CPU ARM Cortex A53s @ 1.8 GHz

Maximum Power Consumption

12.5 W

Antenna

2 x 2.4 GHz: 3 dBi; 2 x 5 GHz: 3 dBi; Integrated Omni-Directional Antenna

Power Source

PoE: 802.3af Input; 12VDC /1.25A Power Adapter

MU-MIMO

Two(2) Multiple (MU)-MIMO for up to 574 Mbps wireless data rate to transmit to one(1) two streams MU-MIMO 11AX capable wireless client devices under 2.4GHz simultaneously.

Operating Frequency

Dual-Radio Concurrent 2.4 GHz & 5 GHz

Wireless Standards

IEEE 802.11ax on 2.4 GHz IEEE; 802.11ax on 5 GHz

LED Indicators

1 x Power, 1 x LAN, 1 x 2.4 GHz, 1 x 5 GHz

SNMP

v1, v2c, v3

Deployment Options

Stand-Alone (Individually Managed); Managed Mode (with Neutron Series Switch/ezMaster); MESH

Stand-Alone Management Features

Auto Channel Selection; Auto Transmit Power; Wireless STA (Client); Connected List; Guest Network; Fast Roaming (802.11k & 802.11r); Pre-Authentication (802.11i, 802.11x); PMK Caching (802.11i); Band Steering per SSID; Traffic Shaping per SSID/per user; VLAN Per SSID; Backup/Restore Settings; Auto Reboot; E-Mail Alert; Site Survey; Save Configuration as Users’ Default.

Wireless Management Features

AP Auto Discovery & Provisioning; AP Auto IP Assignment; AP Group Management; Auto AP Rebooting; AP Device Name Editing; AP Radio Settings; Band Steering Per SSID; Traffic Shaping Per SSID/User; Fast Roaming (802.11k & 802.11r); Pre-Authentication (802.11i, 802.11x); PMK Caching (802.11i); AP Client Limiting; Client Fingerprinting; AP VLAN Management; VLAN Per SSID; Captive Portal Per SSID (Guest Networking); Multi-Tenant Account; AP Traffic Log; Access Point Status Monitoring; Wireless Client Monitoring; Email Alert; Wireless Traffic & Usage Statistics; Real-Time Throughput Monitoring; Visual Topology View; Floor Plan View; Map View; Wireless Coverage Display; Secure Control Messaging (SSL Certificate); Local MAC Address Database; Remote MAC Address Database (RADIUS); Unified Configuration Import/Export; Bulk Firmware Upgrade Capability; One-Click Update; Intelligent Diagnostics; Kick/Ban Clients; Wi-Fi Scheduler; Schedule reboot.

Control Features

Managed Mode (w/Neutron Switch/ezMaster); Distance Control (ACK Timeout); Multicast Supported; Wi-Fi Scheduler; Client Traffic Status; RADIUS Accounting (802.1x); Power Save Mode (U-APSD Support); CLI Support; HTTPS

Physical Interface

1 x 10/100/1000 BASE-T, RJ-45 Gigabit Ethernet Port; 1x DC Jack; 1 x Reset Button

PoE support

Yes

Operation Modes

Managed mode: AP, Mesh. Stand alone: AP, Mesh, WDS AP, WDS BR, WDS STA

Frequency Radio

2.4 GHz: 2400 MHz ~ 2835 MHz; 5 GHz: 5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz, 5725 MHz ~ 5850 MHz

Transmit Power

Up to 22* dBm on 2.4 GHz; Up to 22* dBm on 5 GHz. (The data is for EWS357AP hardware v3 only. For hardware v1 & v2, the Tx-power is 20 dBm.)

Radio Chains/Spatial Stream

2 × 2

SU-MIMO

Two (2) spatial streams SU-MIMO for 2.4 GHz and two (2) spatial streams SU-MIMO for 5 GHz up to 1,774Mbps wireless data rate to a single 11ax wireless client device under both 2.4 G Hz and 5 GHz radio.

Supported Data Rates (Mbps)

802.11ax: 2.4 GHz: 9 to 287 (MCS0 to MCS11, NSS = 1 to 2); 5 GHz: 18 to 1200 (MCS0 to MSC11, NSS = 1 to 2); 802.11b: 1, 2, 5.5, 11; 802.11a/g: 6, 9, 12, 18, 36, 48, 54; 802.11n: 6.5 to 300 Mbps (MCS0 to MCS15); 802.11ac: 6.5 to 867 Mbps (MCS0 to MCS9, NSS = 1 to 2)

Supported Radio Technologies

802.11ax: Orthogonal Frequency Division Multiple Access (OFDMA); 802.11b: Direct-sequence spread-spectrum (DSSS); 802.11ac/a/g/n: Orthogonal Frequency Division Multiple (OFDM)

Channelization

802.11ax supports very high throughput (VHT) —VHT 20/40/80 MHz; 802.11ac supports very high throughput (VHT) —VHT 20/40/80 MHz; 802.11n supports high throughput (HT) —HT 20/40 MHz; 802.11n supports very high throughput under the 2.4GHz radio –VHT40 MHz (256-QAM); 802.11n/ac/ax packet aggregation: A-MPDU, A-SPDU

Supported Modulation

802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM; 802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM; 802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM; 802.11b: BPSK, QPSK, CCK

Multiple BSSID

8 SSIDs for both 2.4GHz and 5GHz radios.

VLAN Tagging

Supports 802.1q SSID-to-VLAN Tagging, Cross-Band VLAN Pass-Through, Management VLAN

Spanning Tree

Supports 802.1d Spanning Tree Protocol

QoS (Quality of Service)

Compliant with IEEE 802.11e Standard; WMM

MIB

I/II, Private MIB

Wireless Security

WPA3; WPA2 Enterprise (AES); Hide SSID in Beacons; Wireless STA (Client) Connected List; Client Isolation
