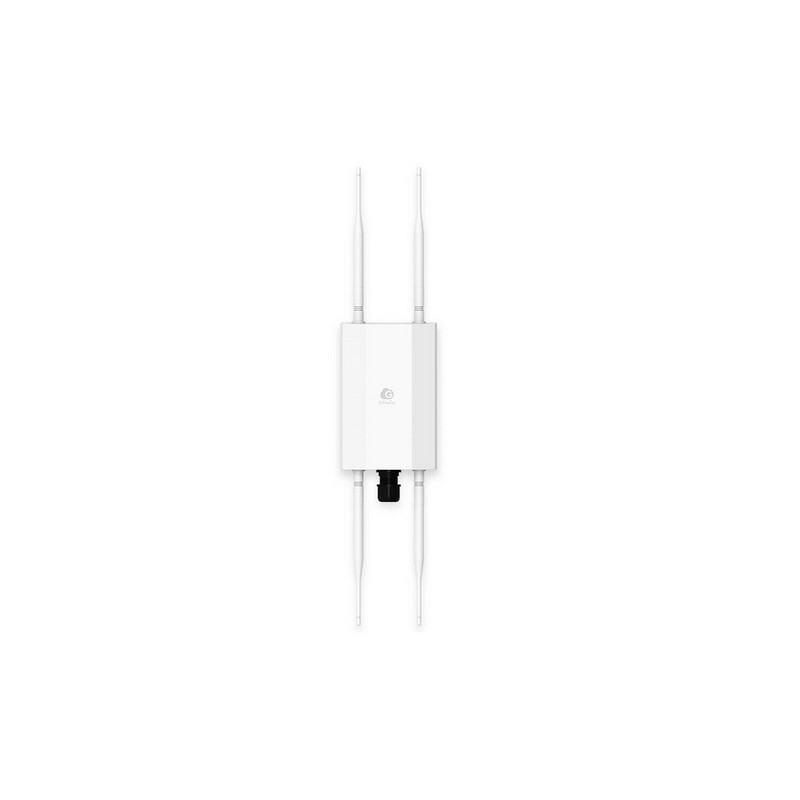

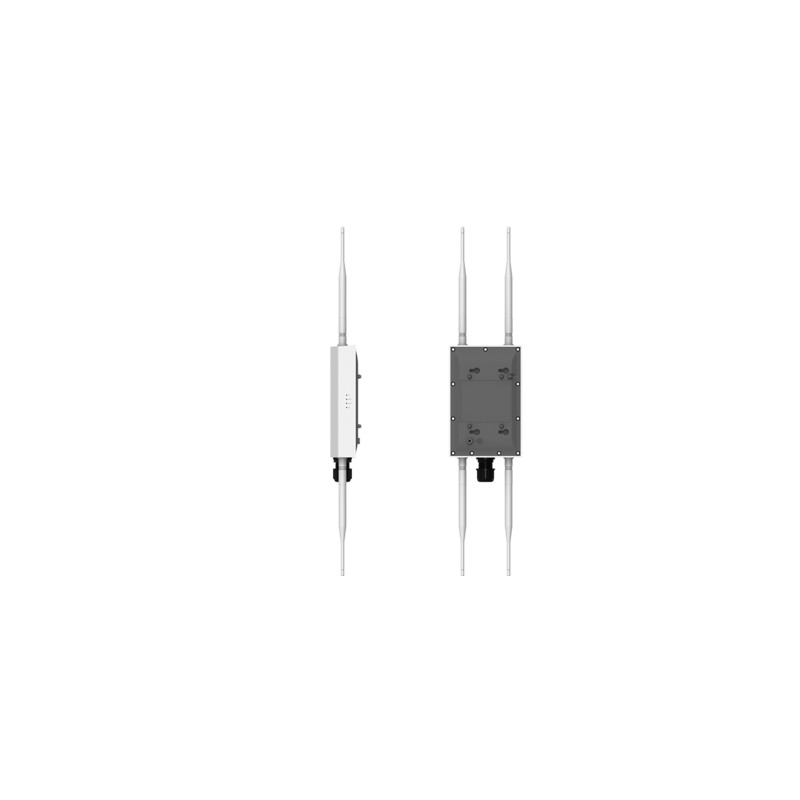

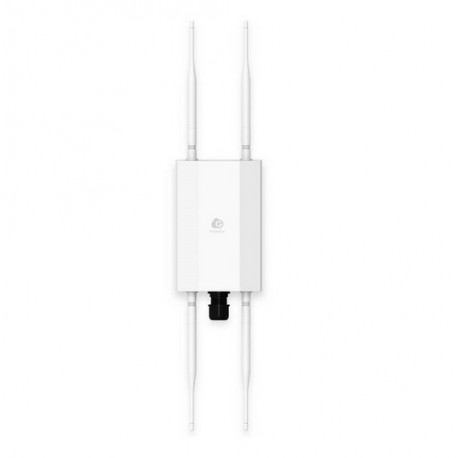

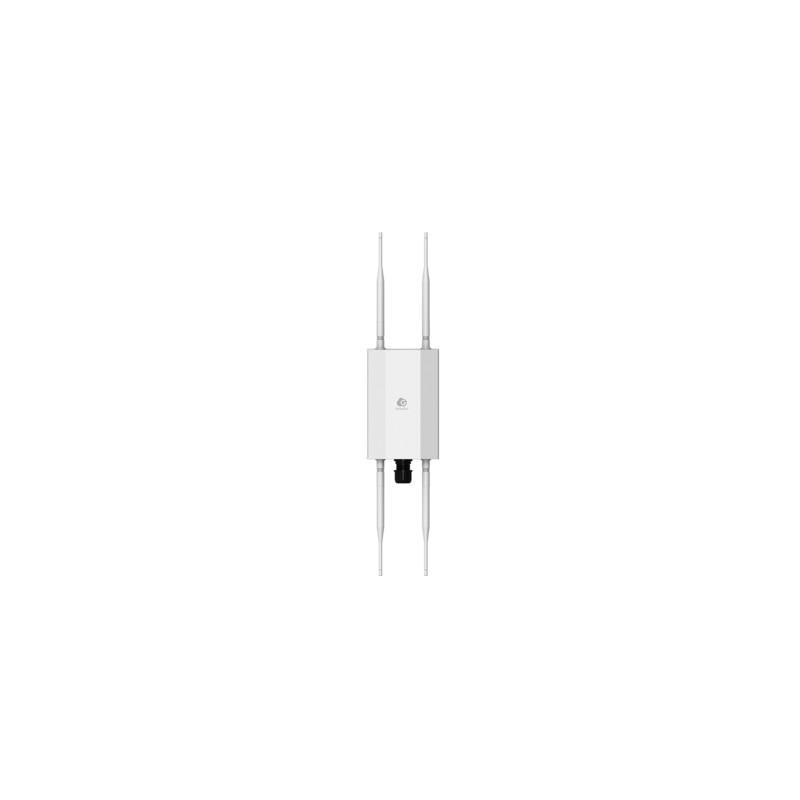

Cloud Managed Outdoor AP Dual Band 11ax 574+1200Mbps 2.5 2T2R GbE PoE.at(+) 4x5dBi RP-SMA IP67

Specifikacije

Processor

Qualcomm Quad-Core CPU ARM Cortex A53s @ 1.8 GHz

Maximum Power Consumption

15.90 W

Antenna

Four (4) External 5 dBi Dual-Concurrent Omni-Directional Antenna; SMA-Type

Power Source

PoE: 802.3af/at; Proprietary 48V – 54V; IEEE 802.11e Compliant Source; Active Ethernet (PoE)

MU-MIMO

Two (2) spatial streams Multiple (MU)-MIMO for up to 1200 Mbps wireless data rate to transmit to one (1) two streams MU-MIMO 11ax capable wireless client devices under 5 GHz simultaneously Two (2) Multiple (MU)-MIMO for up to 574 Mbps wireless data rate to transmit to one (1) two streams MU-MIMO 11ax capable wireless client devices under 2.4 GHz simultaneously.

Operating Frequency

Dual-Radio Concurrent 2.4 GHz & 5 GHz

Wireless Standards

IEEE 802.11b/g/n/ax on 2.4 GHz; IEEE802.11a/n/ac/ax on 5 GHz

LED Indicators

1 x Power, 1 x LAN, 1 x 2.4 GHz, 1 x 5 GHz

Physical Interface

1x 10/100/1000/2500 BASE-T, RJ-45 Ethernet Port

PoE support

Yes

Operation Modes

AP, Mesh

Frequency Radio

2.4 GHz: 2400 MHz ~ 2482 MHz, 5 GHz: 5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz, 5725 MHz ~ 5850 MHz

Transmit Power

Up to 23 dBm on 2.4 GHz, Up to 25 dBm on 5 GHz

Radio Chains/Spatial Stream

2 × 2:2

SU-MIMO

Two (2) spatial streams SU-MIMO for 2.4 GHz and two (2) spatial streams SU-MIMO for 5 GHz up to 1,774Mbps wireless data rate to a single 11ax wireless client device under both 2.4 G Hz and 5 GHz radio.

Supported Data Rates (Mbps)

802.11ax: 2.4 GHz: 9 to 574 (MCS0 to MCS11, NSS = 1 to 2); 5 GHz: 18 to 1200 (MCS0 to MSC11, NSS = 1 to 2); 802.11b: 1, 2, 5.5, 11; 802.11a/g: 6, 9, 12, 18, 36, 48, 54; 802.11n: 6.5 to 300 Mbps (MCS0 to MCS15); 802.11ac: 6.5 to 867 Mbps (MCS0 to MCS9, NSS = 1 to 2)

Supported Radio Technologies

802.11ax: Orthogonal Frequency Division Multiple Access (OFDMA); 802.11b: Direct-sequence spread-spectrum (DSSS); 802.11ac/a/g/n: Orthogonal Frequency Division Multiple (OFDM)

Channelization

802.11ax supports high efficiency throughput (HE) —HE 20/40/80 MHz; 802.11ac supports very high throughput (VHT) —VHT 20/40/80 MHz; 802.11n supports high throughput (HT) —HT 20/40 MHz; 802.11n supports very high throughput under the 2.4GHz radio –VHT40 MHz (256-QAM); 802.11n/ac/ax packet aggregation: A-MPDU, A-SPDU

Supported Modulation

802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM; 802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM; 802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM; 802.11b: BPSK, QPSK, CCK

Multiple BSSID

8 SSIDs for both 2.4GHz and 5GHz radios.

VLAN Tagging

Supports 802.1q SSID-to-VLAN Tagging, Cross-Band VLAN Pass-Through, Management VLAN

Spanning Tree

Supports 802.1d Spanning Tree Protocol

QoS (Quality of Service)

Compliant with IEEE 802.11e Standard; WMM

Wireless Security

WPA3-PSK (SAE); WPA3 Enterprise; WPA2 Enterprise (AES); WPA2 AES-PSK; OWE; Hide SSID in Beacons; Wireless STA (Client) Connected List; Client Isolation
