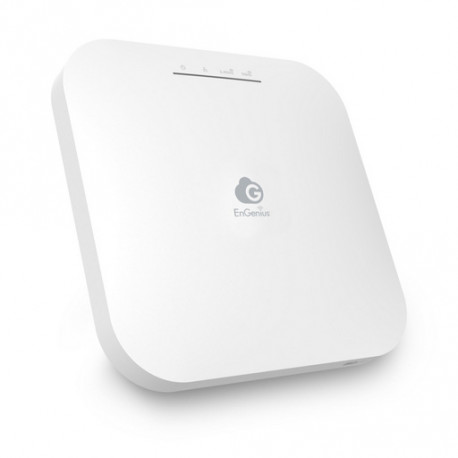

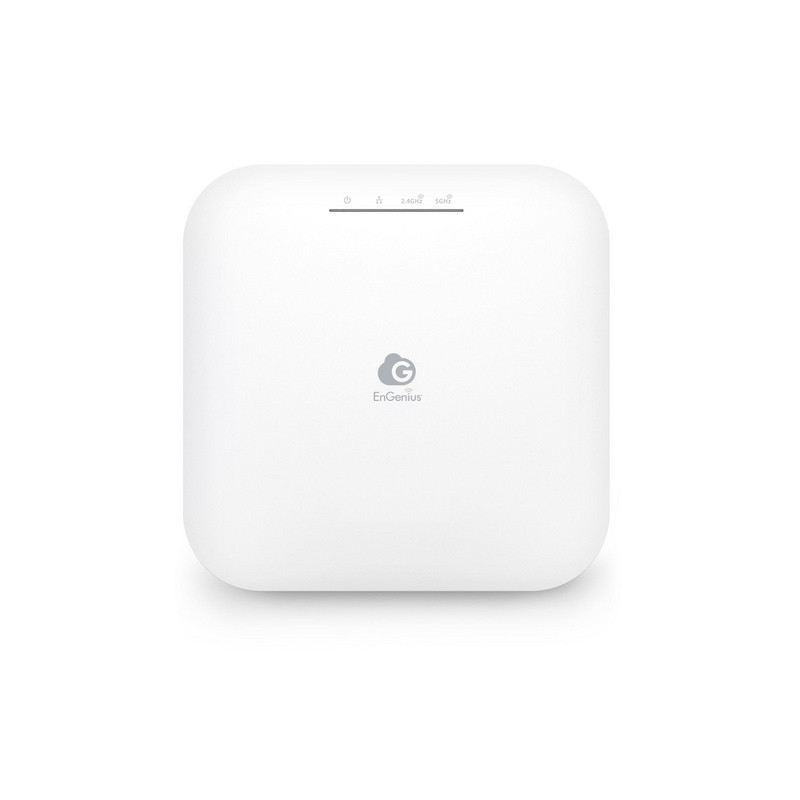

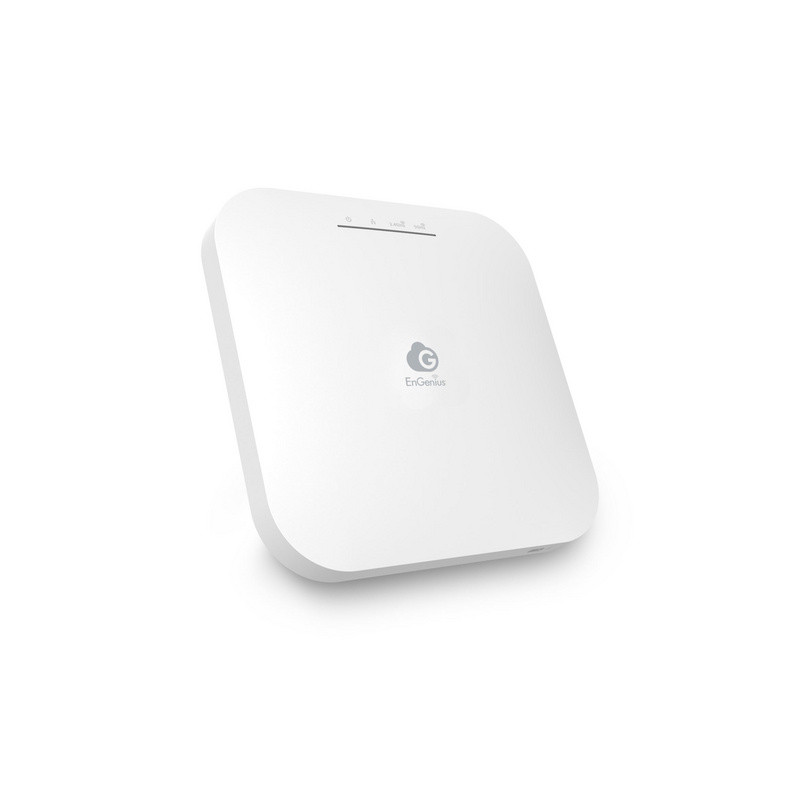

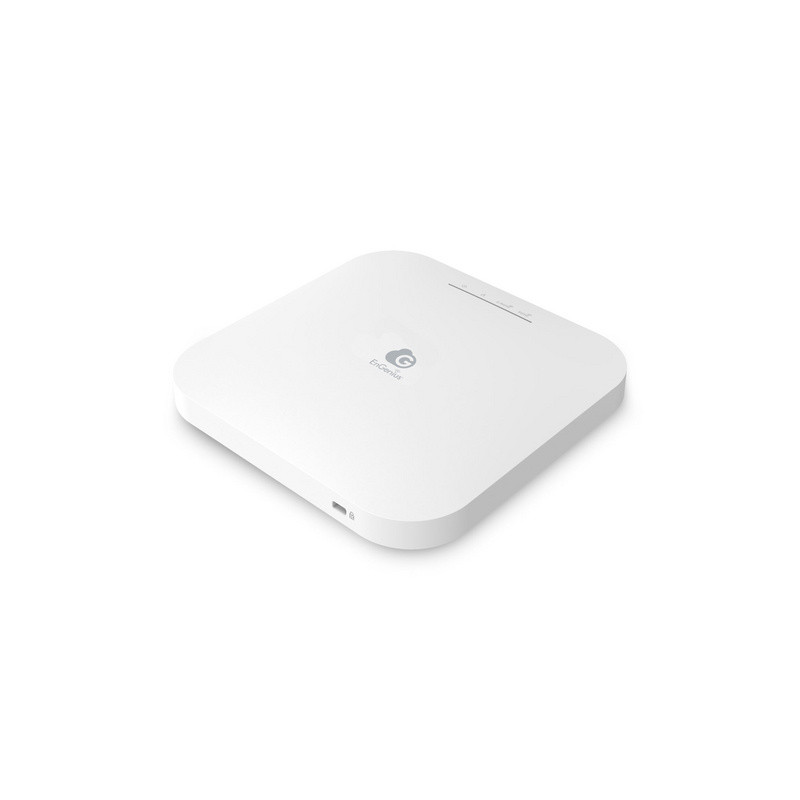

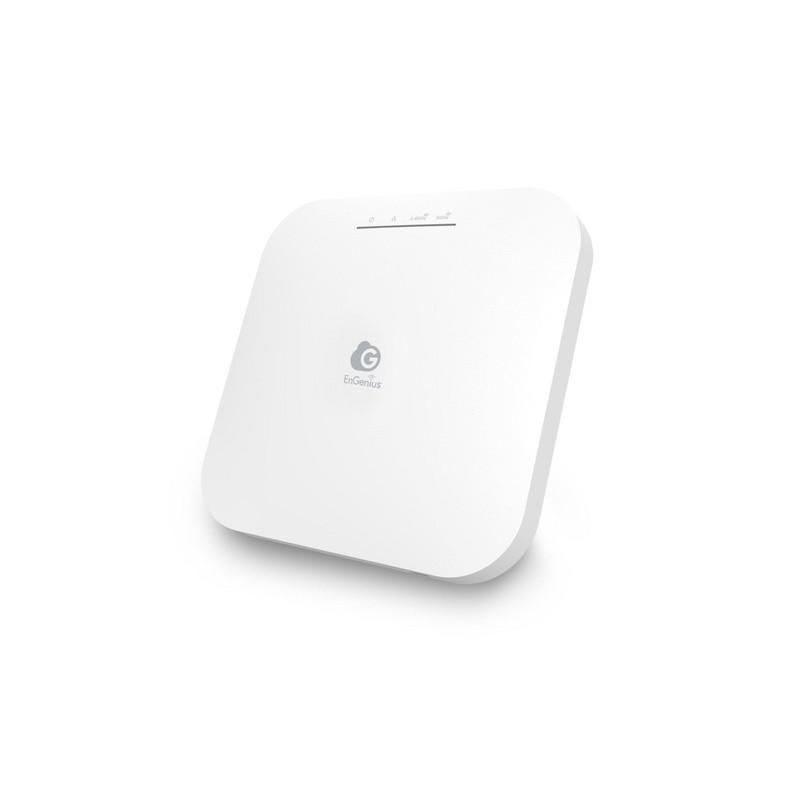

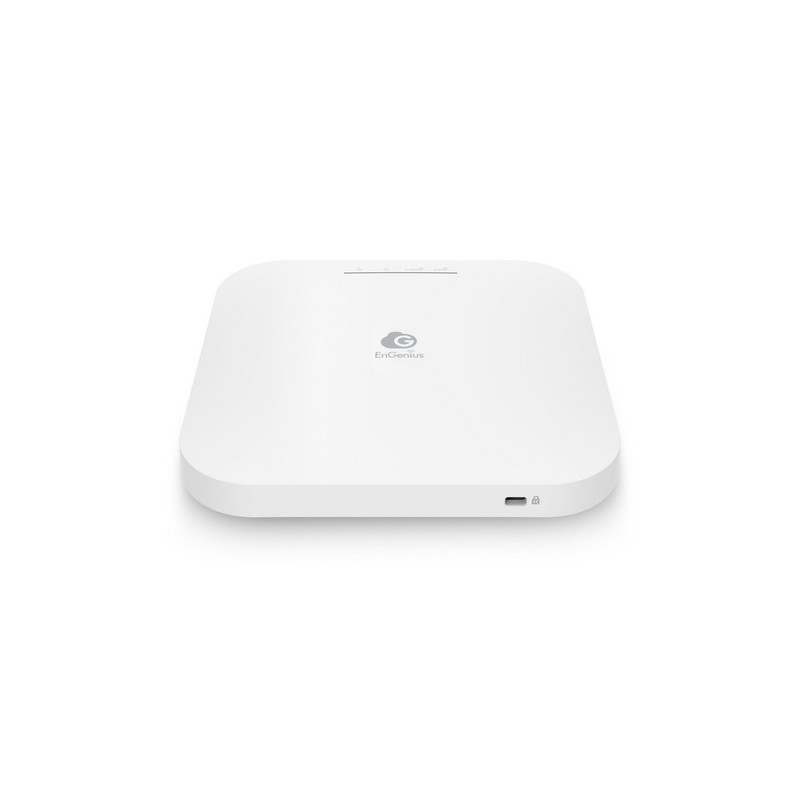

Cloud Managed AP Indoor Dual Band 11ax 1148+2400Mbps 4T4R BLE 2.5 GbE PoE.at 3dBi ia

Specifikacije

Maximum Power Consumption

19.50 W

Antenna

4 x 2.4 GHz: 3 dBi, 4 x 5 GHz: 3 dBi, Integrated Omni-Directional Antenna

Power Source

PoE: 802.3at Input, IEEE 802.11e Compliant Source, 12VDC /2A Power Adapter (optional)

MU-MIMO

Four (4) spatial streams Multiple (MU)-MIMO up to 2,400 Mbps wireless data rate for transmitting to four (4) streams MU-MIMO 11ax capable wireless client devices under 5 GHz simultaneously. Four (4) spatial streams Multiple (MU)-MIMO up to 1,148 Mbps wireless data rate for transmitting to four (4) streams MU-MIMO 11ax capable wireless client devices under 2.4 GHz simultaneously

Operating Frequency

Dual-Radio Concurrent 2.4 GHz & 5 GHz

Wireless Standards

IEEE 802.11ax on 2.4 GHz, IEEE 802.11ax on 5 GHz, Backward compatible with 802.11a/b/g/n/ac

LED Indicators

1 x Power, 1 x LAN, 1 x 2.4 GHz, 1 x 5 GHz

SNMP

v1, v2c, v3

Physical Interface

1 x 10/100/1000/2500 Ethernet Port (PoE+), 1 x DC Jack, 1 x Reset Button

PoE support

Yes

Operation Modes

AP, Mesh, AP Mesh

Frequency Radio

2.4 GHz: 2400 MHz ~ 2482 MHz, 5 GHz: 5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz, 5725 MHz ~ 5850 MHz

Transmit Power

Up to 23 dBm on 2.4 GHz, Up to 23 dBm on 5 GHz

SU-MIMO

Four (4) spatial stream Single User (SU) MIMO for up to 1,148 Mbps wireless data rate with HE40 bandwidth to a 4×4 wireless client device under the 2.4 GHz radio. Four (4) spatial stream Single User (SU) MIMO for up to 2,400 Mbps wireless data rate with HE80 to a 4×4 wireless device under the 5 GHz radio.

Supported Data Rates (Mbps)

802.11ax: 2.4 GHz: 9 to 1,148 (MCS0 to MCS11, NSS = 1 to 4); 5 GHz: 18 to 2,400 (MCS0 to MSC11, NSS = 1 to 4); 802.11b: 1, 2, 5.5, 11; 802.11a/g: 6, 9, 12, 18, 36, 48, 54; 802.11n: 6.5 to 600 (MCS0 to MCS31); 802.11ac: 6.5 to 1,733 (MCS0 to MCS9, NSS = 1 to 4)

Supported Radio Technologies

802.11ax: Orthogonal Frequency Division Multiple Access(OFDMA); 802.11ac/a/g/n: Orthogonal Frequency Division Multiple (OFDM); 802.11b: Direct-sequence spread-spectrum (DSSS)

Channelization

802.11ax supports high efficiency throughput (HE) —HE 20/40/80 MHz; 802.11ac supports very high throughput (VHT) —VHT 20/40/80 MHz; 802.11n supports high throughput (HT) —HT 20/40 MHz; 802.11n supports very high throughput under the 2.4GHz radio –VHT40 MHz (256-QAM); 802.11n/ac/ax packet aggregation: A-MPDU, A-SPDU

Supported Modulation

802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM; 802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM; 802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM; 802.11b: BPSK, QPSK, CCK

Multiple BSSID

8 SSIDs for both 2.4GHz and 5GHz radios.

VLAN Tagging

Supports 802.1q SSID-to-VLAN Tagging, Cross-Band VLAN Pass-Through, Management VLAN

Spanning Tree

Supports 802.1d Spanning Tree Protocol

QoS (Quality of Service)

Compliant with IEEE 802.11e Standard; WMM

MIB

I/II, Private MIB

Wireless Security

WPA2-PSK; WPA2-Enterprise; Hide SSID in Beacons; Wireless STA (Client) Connected List; Client Isolation

Fast Roaming

802.11r/k
