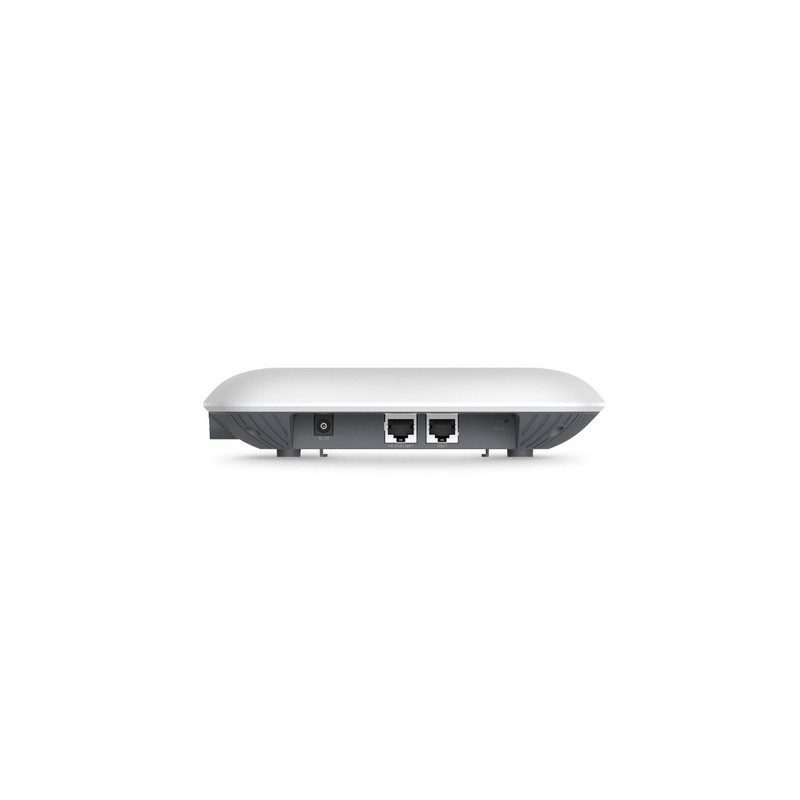

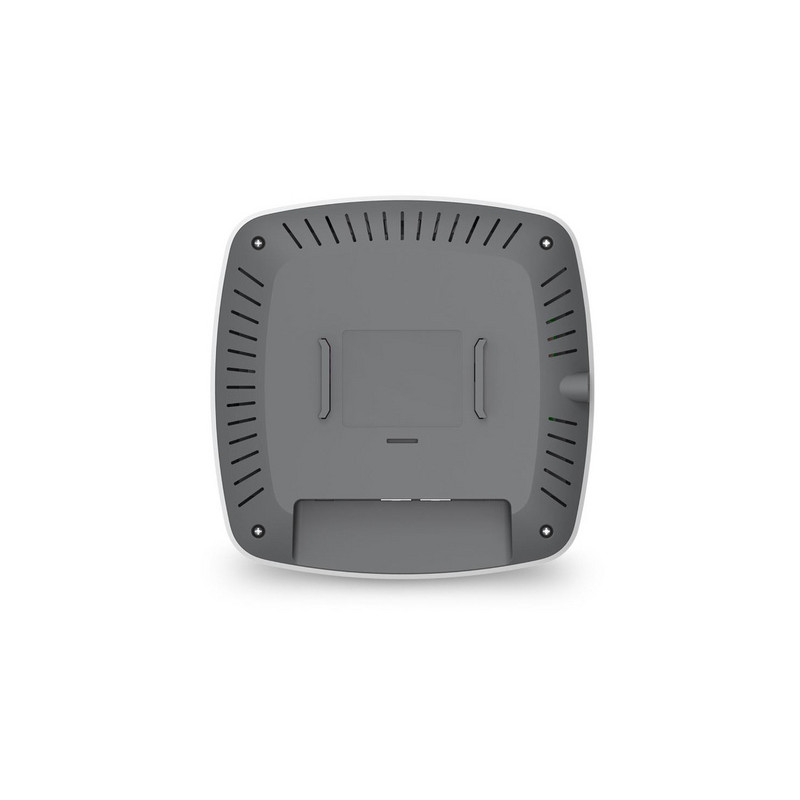

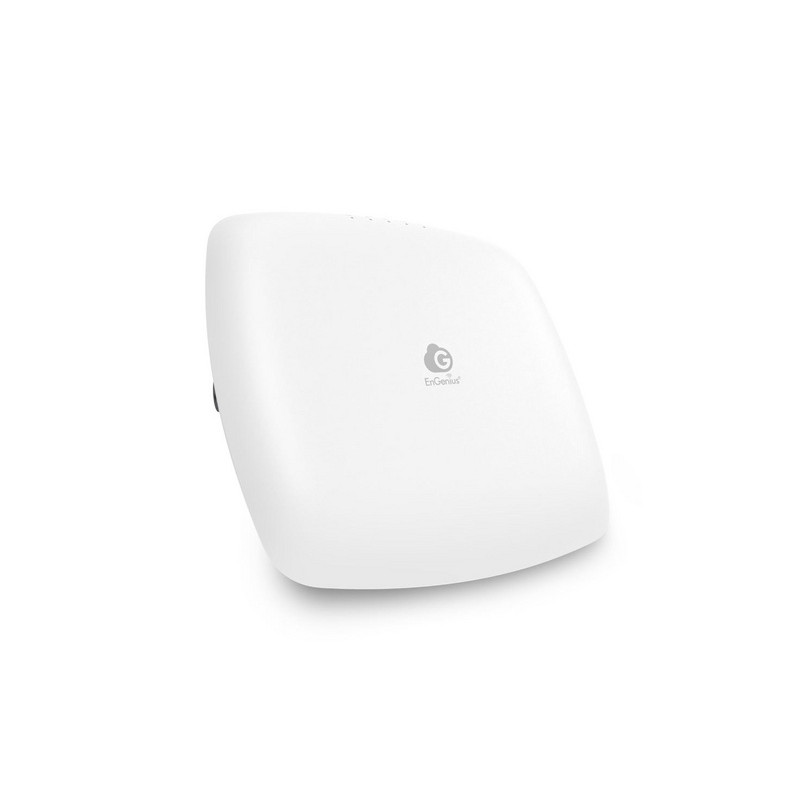

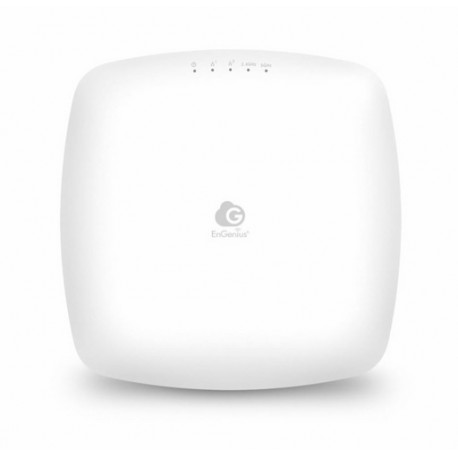

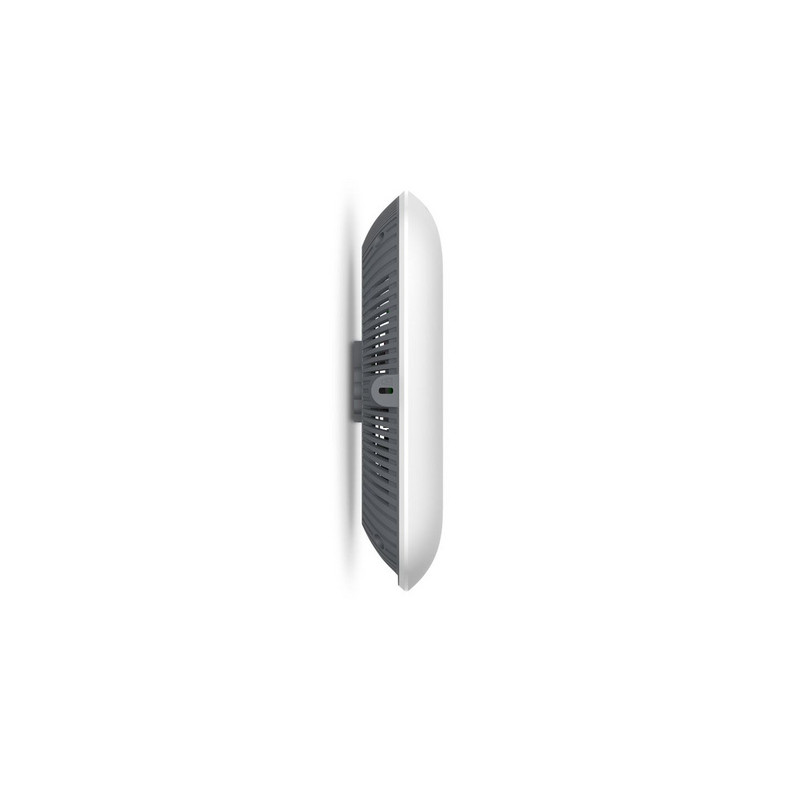

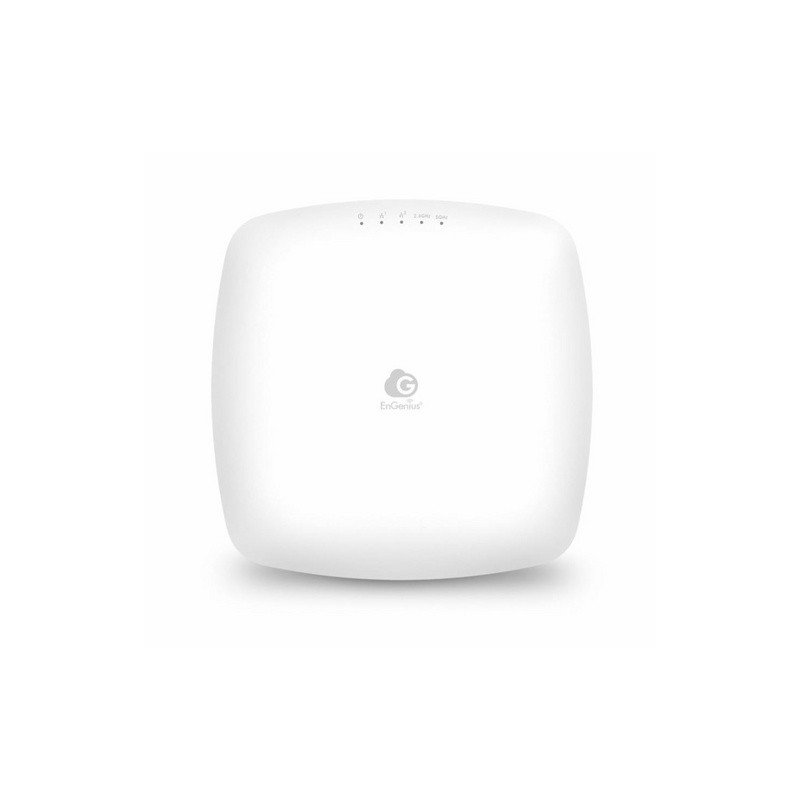

Cloud Managed AP Indoor Dual Band 11ac Wave2 800+1733Mbps 4T4R 2xGbE PoE.at(+) 8x3dBi ia

Specifikacije

Processor

Qualcomm Dual-Core Krait CPU ARM7 @ 1.4GHz

Maximum Power Consumption

19.10 W

Antenna

4 x 2.4 GHz: 4 dBi(Integrated Omni-Directional), 4 x 5 GHz: 6 dBi(Integrated Omni-Directional)

Power Source

PoE: 802.3af Input, 12VDC /1A Power Adapter

MU-MIMO

Four (4) spatial streams Multiple (MU)-MIMO for up to 2400 Mbps wireless data rate to transmit to two (2) two streams MU-MIMO 11ax capable wireless client devices under 5GHz simultaneously.

Operating Frequency

Dual-Radio Concurrent 2.4 GHz & 5 GHz

Wireless Standards

IEEE 802.11b/g/n on 2.4GHz; IEEE802.11a/n/ac on 5GHz

LED Indicators

1 x Power, 1 x LAN, 1 x 2.4 GHz, 1 x 5 GHz, 1 x Mesh

SNMP

v1, v2c, v3

Physical Interface

1 x GE Port (PoE+), 1 x GE Port, 1 x DC Jack, 1 x Reset Button

PoE support

Yes

Operation Modes

AP, Mesh, AP Mesh

Frequency Radio

2.4 GHz: 2400 MHz ~ 2482 MHz, 5 GHz: 5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz, 5725 MHz ~ 5850 MHz

Transmit Power

Up to 25 dBm on 2.4 GHz, Up to 24 dBm on 5 GHz

Radio Chains/Spatial Stream

4x4:4

SU-MIMO

Four (4) spatial stream SU-MIMO for 2.4GHz and four spatial stream SU-MIMO for 5GHz up to 3,548 Mbps wireless data rate to a single wireless client device under both the 2.4 GHz and 5GHz radios.

Supported Data Rates (Mbps)

2.4 GHz: Max 400 (MCS0 to MCS11, NSS = 1 to 2) 5 GHz: Max 867 (MCS0 to MSC11, NSS = 1 to 2) 802.11b: 1, 2, 5.5, 11, 802.11a/g: 6, 9, 12, 18, 36, 48, 54 802.11n: 6.5 to 300 Mbps (MCS0 to MCS15) (Additional 25% bandwidth when enabling 256-QAM uner HT40), 802.11ac: 6.5 to 867 Mbps (MCS0 to MCS9, NSS = 1 to 2)

Supported Radio Technologies

802.11a/g/n/ac: Orthogonal Frequency-Division Multiplexing (OFDM), 802.11b: Direct-Sequence Spread Spectrum (DSSS), 802.11n/ac: 2×2 MIMO with 2 Streams

Channelization

802.11ac Supports Very High Throughput (VHT)—VHT 20/40/80 MHz, 802.11n Supports High Throughput (HT)—HT 20/40 MHz, 802.11n Supports High Throughput (HT) Under the 2.4 GHz Radio—HT 40 MHz(256-QAM), 802.11n/ac Packet Aggregation: A-MPDU, A-SPDU

Supported Modulation

802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM, 802.11b: BPSK, QPSK, CCK

Multiple BSSID

8 SSIDs for both 2.4GHz and 5GHz radios.

VLAN Tagging

Supports 802.1q SSID-to-VLAN Tagging, Cross-Band VLAN Pass-Through, Management VLAN

Spanning Tree

Supports 802.1d Spanning Tree Protocol

QoS (Quality of Service)

Compliant with IEEE 802.11e Standard; WMM

MIB

I/II, Private MIB

Wireless Security

WPA2-PSK, WPA2-Enterprise, WPA3-PSK, WPA3-Enterprise, Hide SSID in Beacons, Wireless STA (Client) Connected List, Client Isolation
