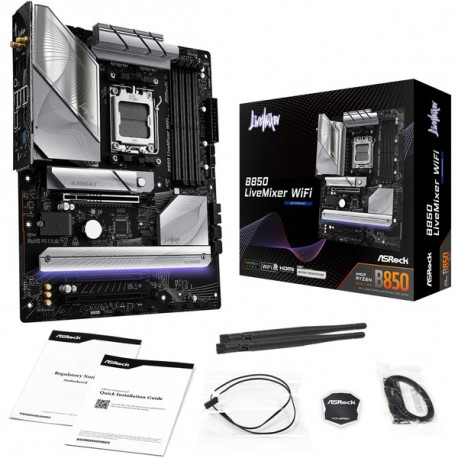

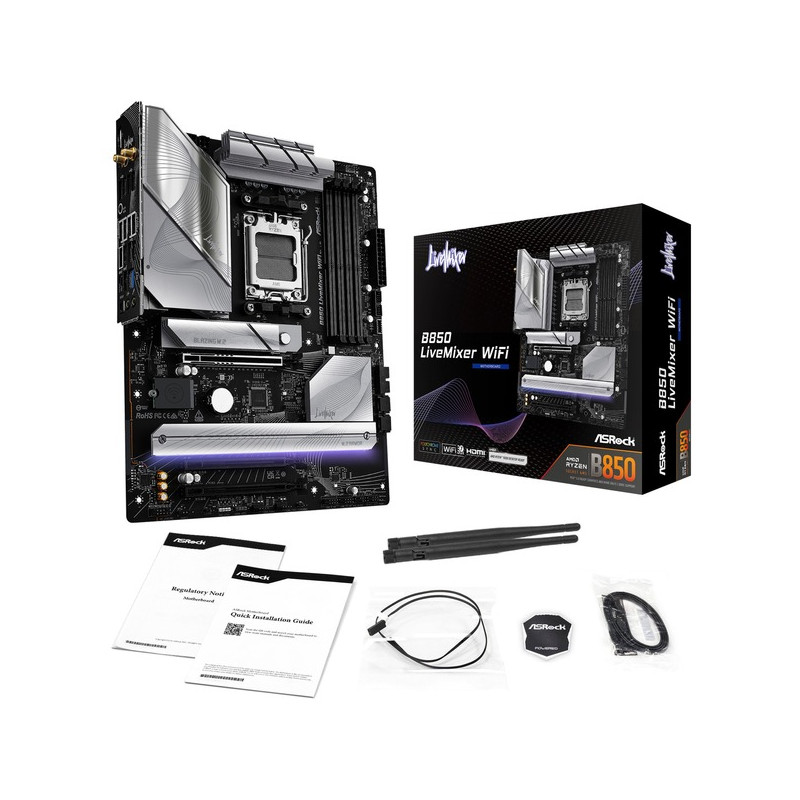

ASRock B850 LiveMixer WiFI
90-MXBQU0-A0UAYZ
Novi proizvod
10 - 12 radnih dana
The ASRock B850 LiveMixer WiFi is based on the AMD B850 chipset and supports AMD processors for the AM5 socket
Količina: 7 raspoloživa (kod dobavljača)
- Odstrani ovaj proizvod iz najdražih proizvoda
- Dodaj ovaj proizvod u najdraže proizvode
- Ispis
Podaci
| Utor za procesor | Utor AM5 |
Više informacija
Details
| Type | Mainboard | ||
| Colour | white | ||
| EAN | 4711581490154 | ||
| Manufacturer no. | 90-MXBQU0-A0UAYZ | ||
| Base | AM5 | ||
| Max. supported CPUs | 1 | ||
| Processor | Supported models | Ryzen 5 7xxx (Raphael), Ryzen 5 7xxxX (Raphael), Ryzen 5 7xxxF (Raphael), Ryzen 5 8xxx (Phoenix), Ryzen 5 8xxx (Phoenix), Ryzen 5 9xxx (Granite Ridge), Ryzen 5 9x9x (Granite Ridge), Ryzen 7xxx (Raphael), Ryzen 7xxx (Raphael), 7xxx | |
| Chipset | AMD B850 | ||
| Slots | PCIe x16 | 3x (thereof: 1x PCIe x16, 2x PCIe x4) | |
| BIOS | 256Mb AMI UEFI Legal BIOS | ||
| Form factor | ATX | ||
| Use | PC | ||
| Power supply | ATX12V (24-pin + 8-pin + 4-pin) | ||
| Memory | maximum | 256 GB | |
| Number of plinths | 4x DDR5 | ||
| Supported standards | Up to DDR5-8000+ (OC) | ||
| Channels | 2 | ||
| Maximum memory storage space | 8th | ||
| Memory controller in CPU | Yes | ||

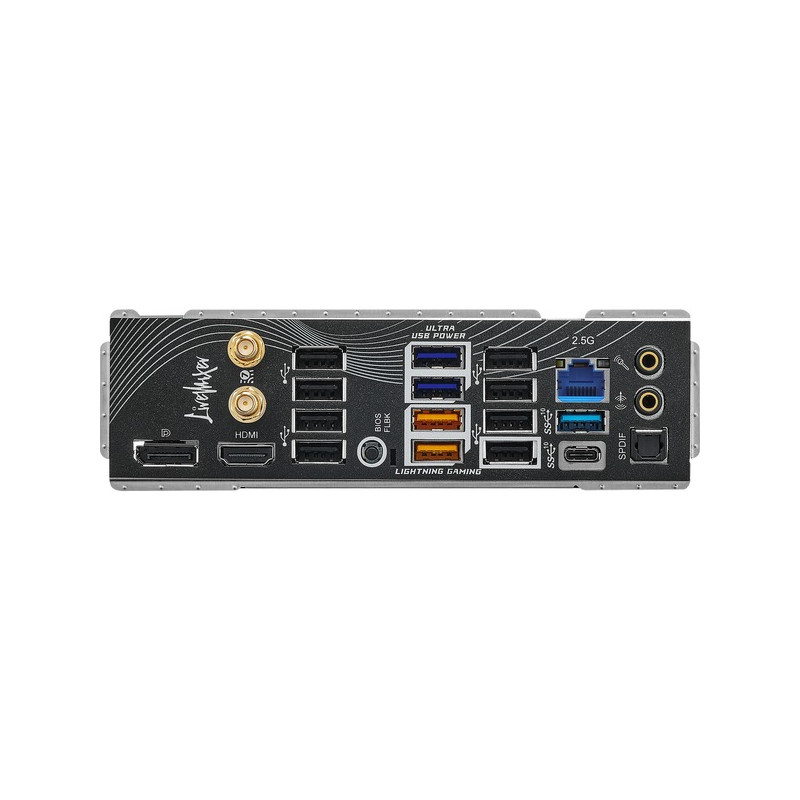

| Connections (external) | USB-C 3.2 Gen 2 (10 Gbit/s) | 1 | |
| USB-A 3.2 Gen 2 (10 Gbit/s) | 1 | ||
| USB-A 3.2 Gen 1 (5 Gbit/s) | 4 | ||
| Note: | The designation USB 3.2 Gen 1 corresponds to the earlier descriptions USB 3.1 Gen 1 or USB 3.0. The designation USB 3.2 Gen 2 corresponds to the earlier names USB 3.1 Gen 2 respectively. USB 3.1. |
||
| USB-A 2.0 | 8th | ||
| HDMI | 1 | ||
| DisplayPort-Out | 1 | ||
| Microphone | 1 | ||
| Line-out | 1 | ||
| S/PDIF-Out (optical) | 1 | ||
| RJ-45 | 1 | ||
| Bluetooth | Yes | ||
| Wi-Fi | Yes | ||
| Connections (internal) | SATA | 2 | |
| M.2 | 3 | ||
| M.2 Module Key | M | ||
| M.2 Wi-Fi | 1 | ||
| M.2 interface | PCIe | ||
| M.2 length | 30 - 80 mm | ||
| RGB LED Header | 1 | ||
| addressable RGB LED Header | 3 | ||
| 4-pole PWM fan | 6 6 | ||
| Connections (optional) | USB 3.2 Gen 1 (5 Gbit/s) | 4 | |
| USB 2.0 | 4 | ||
| TPM | Yes | ||
| SATA controller | AMD B850 | ||
| directly usable RAID level | 0, 1, 10 | ||
| USB controller | AMD B850 | ||
| Onboard graphics | The graphic connections of the motherboard can only be used when using a CPU with an integrated graphic chip. | ||
| Sound | Realtek ALC1220 | ||
| LAN | Dragon RTL8125BG 2.5 Gbit/s | ||
| Wi-Fi 7 | |||
| Note | To support the latest processor cores, a BIOS update may be required. | ||
WEEE number 54978142
