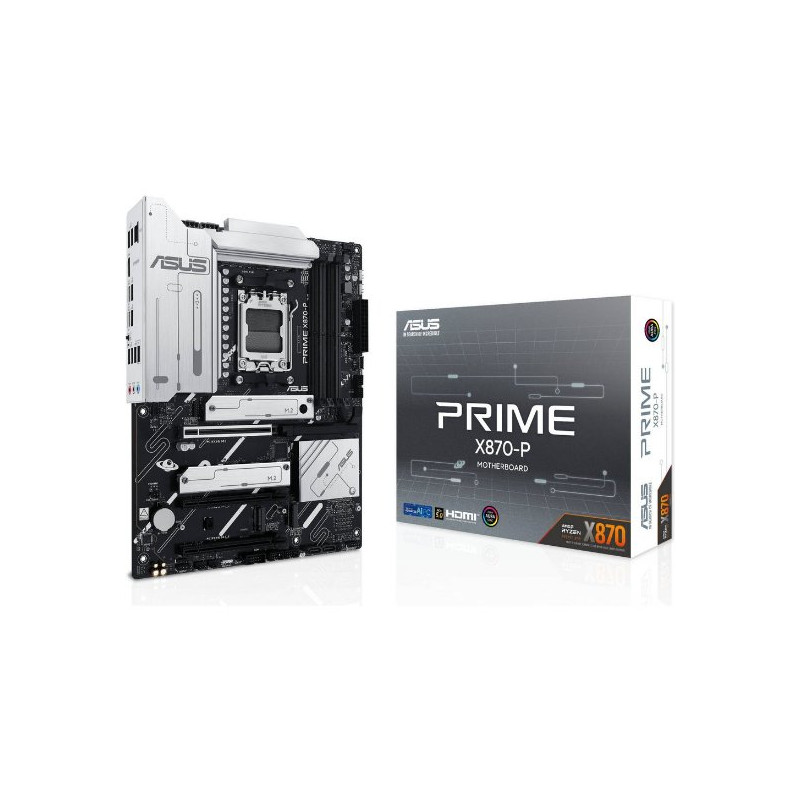

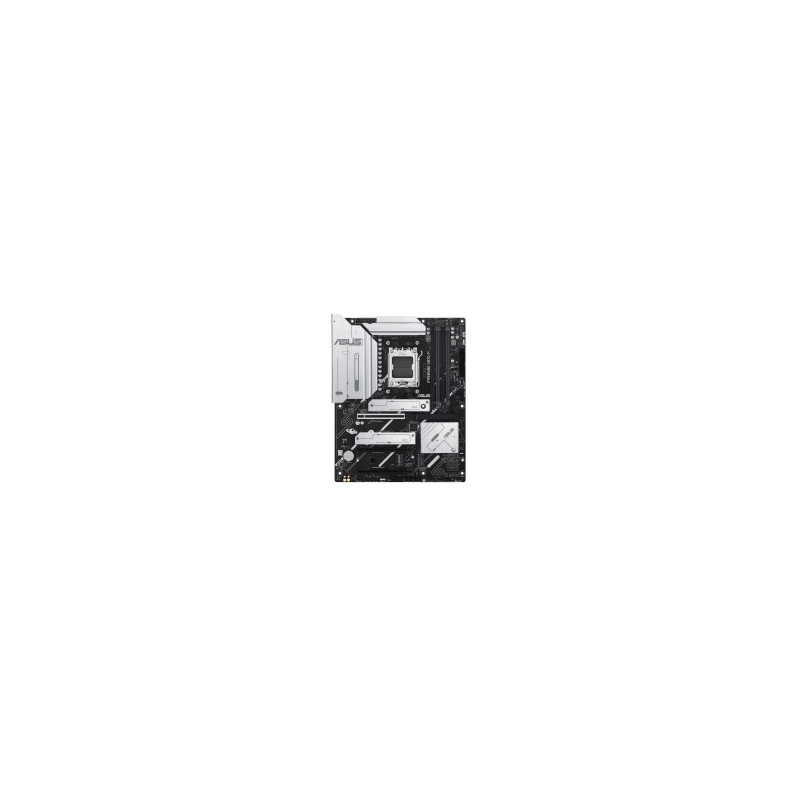

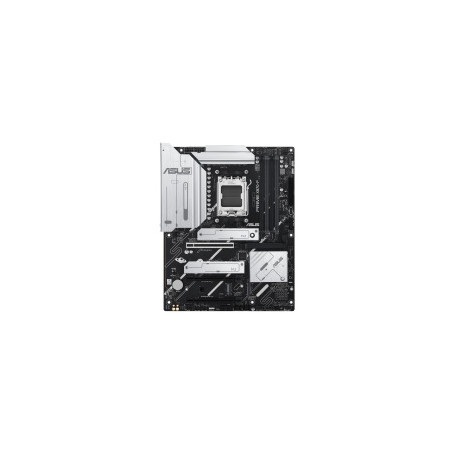

Asus MB Prime X870-P, S.AM5, 4xDDR5/8000(OC), PCIe 5.0, 2.5 G-LAN, USB4, HDMI, ATX

Specifikacije
- Format: ATX
- Socket: AM5
- Čipset: AMD X870
- Procesori: AMD Ryzen 7000 / 8000 / 9000
- Memorija: 4× DDR5 DIMM, do 256 GB, dual-channel, EXPO, AEMP, ECC/Non-ECC, do 8000+ MT/s (OC)
- Grafički izlazi: 1× HDMI 2.1 (4K@60), 2× USB4 (Type-C, 40 Gbps, DP 1.4a, 4K@60)
- PCIe utori: 1× PCIe 5.0 x16 (Ryzen 7000/9000), 1× PCIe 4.0 x16 (Ryzen 8000), 2× PCIe 4.0 x16 (x1, dijele linije)
- Pohrana: 4× M.2 (1× PCIe 5.0, 2× PCIe 4.0, 1× PCIe 3.0), 2× SATA 6 Gb/s
- RAID: PCIe/SATA RAID (RAIDXpert2; ovisno o CPU-u)
- Mreža: Realtek 2.5 Gb Ethernet, ASUS LANGuard
- USB (stražnji): 2× USB4 40 Gbps (Type-C), 1× USB 10 Gbps (Type-A), 3× USB 5 Gbps (Type-A), 4× USB 2.0
- USB (prednji): 1× USB-C 10 Gbps, 2× USB 5 Gbps, 4× USB 2.0
- Audio: Realtek 7.1 HD Audio (24-bit/192 kHz)
- Ventilatori: 1× CPU fan, 1× CPU OPT fan, 1× AIO Pump, 4× system fan
- Napajanje: 24-pin ATX, 2× 8-pin +12V CPU
- Interni priključci: 3× ARGB Gen2, Clear CMOS, COM, Front Panel Audio, S/PDIF Out, SPI TPM, System Panel
- Posebno: BIOS FlashBack, PCIe Q-Release, M.2 Q-Latch, fleksibilni M.2 heatsink, VRM heatsink, ProCool, pre-mounted I/O shield
- BIOS: UEFI AMI, 256 Mb
- Operativni sustav: Windows 10 / 11 (64-bit)
