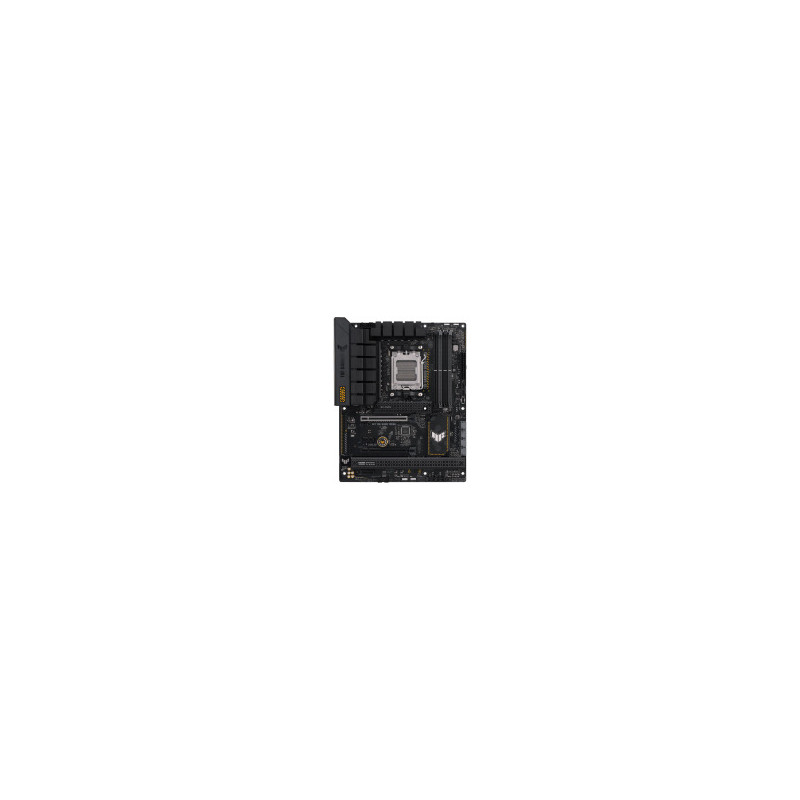

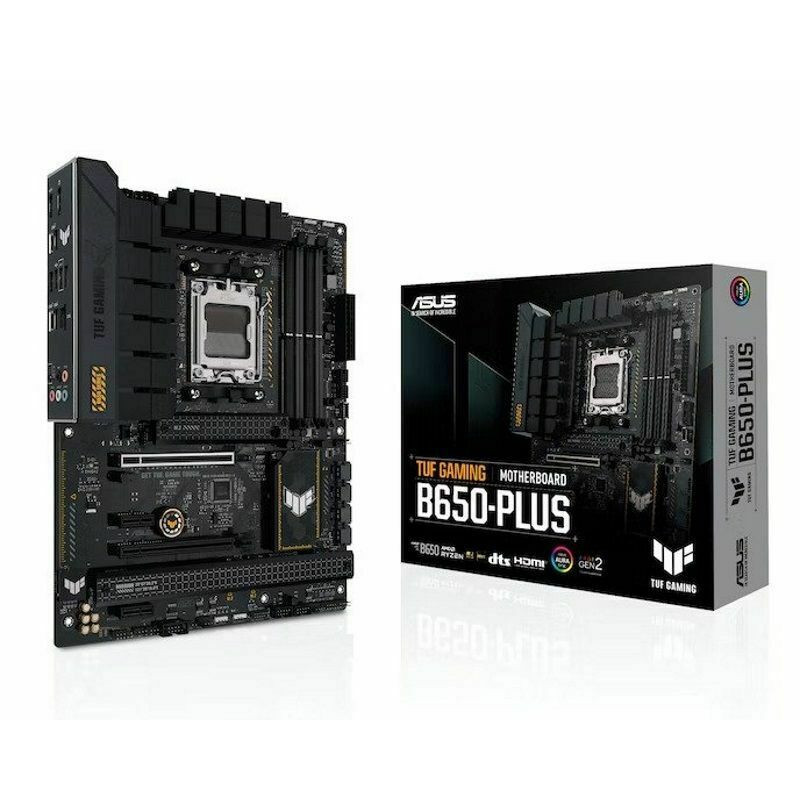

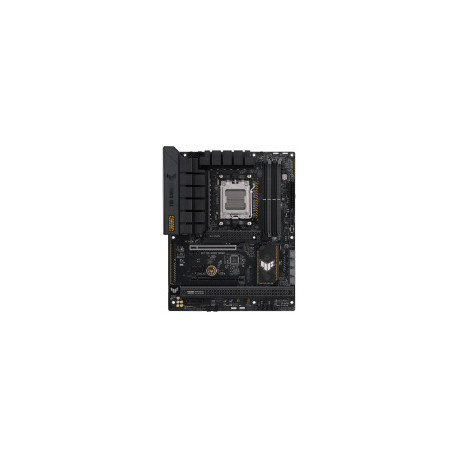

Asus MB TUF GAMING B650-PLUS, S.AM5, 4xDDR5/7600(OC), PCIe 4.0, 2.5 G-LAN, USB-C, HDMI/DP, ATX

Specifikacije
- Format: ATX
- Socket: AM5
- Čipset: AMD B650
- Procesori: AMD Ryzen 7000 / 8000 / 9000
- Memorija: 4× DDR5 DIMM, do 256 GB, dual-channel, EXPO, 4800–7600+ (OC)
- Grafički izlazi: 1× DisplayPort 1.4 (8K@60), 1× HDMI 2.1 (4K@60)
- PCIe utori: 1× PCIe 4.0/3.0 x16, 1× PCIe 4.0/3.0 x16 (x4), 2× PCIe 4.0/3.0 x1
- Pohrana: 3× M.2 (PCIe 5.0 / PCIe 4.0 – ovisno o CPU-u), 4× SATA 6 Gb/s
- RAID: PCIe/SATA RAID 0/1/10 (RAIDXpert2)
- Mreža: Realtek 2.5 Gb Ethernet, TUF LANGuard
- USB (stražnji): 1× USB 3.2 Gen 2x2 (Type-C), 3× USB 3.2 Gen 2 (2× Type-A + 1× Type-C), 4× USB 2.0
- USB (prednji): 1× USB 3.2 Gen 1 (Type-C), 2× USB 3.2 Gen 1, 4× USB 2.0
- Audio: Realtek 7.1 HD Audio
- Ventilatori: 1× CPU fan, 1× CPU OPT fan, 1× AIO Pump, 4× system fan
- Napajanje: 24-pin ATX, 8-pin +12V, 4-pin +12V
- Interni priključci: 3× ARGB Gen 2, 1× Aura RGB, Clear CMOS, COM, Front Panel Audio, 20-3 pin System Panel, 1× Thunderbolt header
- Posebno: BIOS FlashBack, M.2 heatsink, SafeSlot Core+, ProCool, SafeDIMM, pre-mounted I/O shield
- BIOS: UEFI AMI, 256 Mb
- Operativni sustav: Windows 10 / 11 (64-bit)
