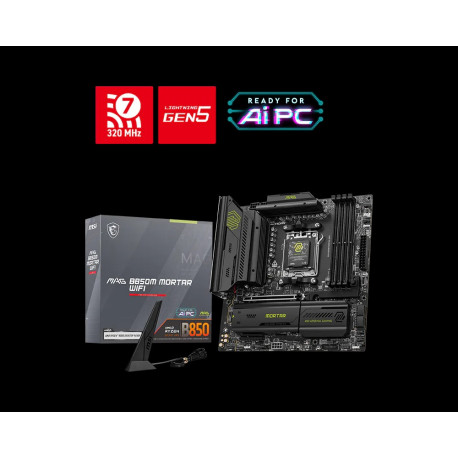

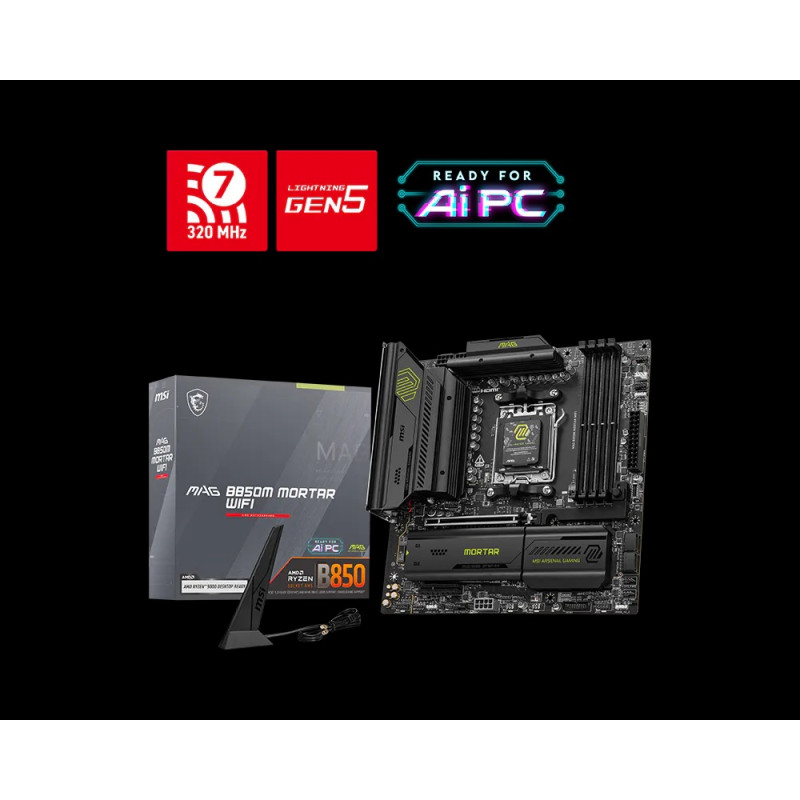

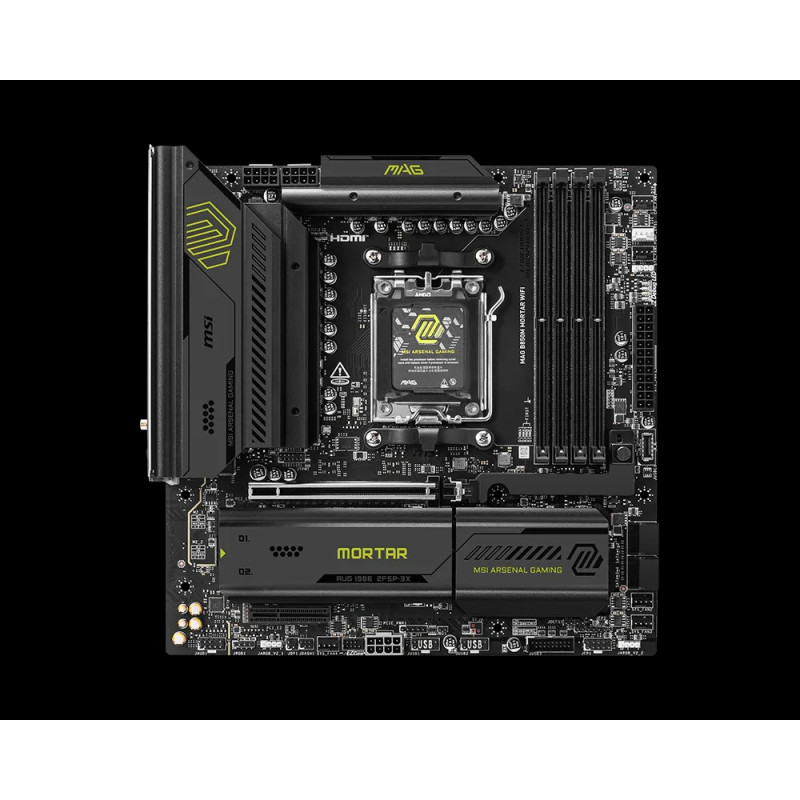

MSI MAG B850M MORTAR WIFI

Specifikacije

HDMI

1 (HDMI (Type A))

Bluetooth

Bluetooth 5.4

Wi-Fi

IEEE 802.11be Wi-Fi 7, 2.4/5/6GHz

Brzina memorije

4800MHz(PC5-38400), 5600MHz(PC5-44800), 6400MHz(PC5-51200), 8200MHz

Audio izlaz

7.1 Channel Surround, 2 (3.5-mm minijack)

Vrsta memorije

DDR5 SDRAM

Količina u pakiranju

1

Format memorije

DIMM 288-pin

CPU podnožje

Socket AM5

Chipset

AMD B850, Realtek ALC4080

LAN

1 (RJ-45)

WLAN

M.2

Power Connectors Type

2x8 pin

LAN Chipset

Realtek RTL8126VB

Mainboard Features

RGB Mystic Light, AMD MULTI-GPU

Antenna

2

Plug-in-card

Wi-Fi Controller: 1 x M.2 (Key E)

S/PDIF-out Optical

1 (TOSLINK)

USB 3.2 Gen 1

4 (USB 3.2 (type A))

USB 3.2 Gen 2

3 (USB 3.2 (type A)); 1 (USB 3.2 (type C))

Format

Micro ATX

Vrsta

Integriran

Softver

MSI Center

Podržani operativni sustavi

Microsoft Windows 11 64-bit

BIOS

MSI CLICK BIOS X

Dodaci

Dokumentacija, WiFi antenna, 1 x Screw for M.2 SSD, Sticker, 2 x M.2 Clip II, M.2 Clip II Remover

USB 3.2 Gen 2 x2

1 (USB 3.2 (type C))

PCI Express 5.0 x16

1

PCI Express 4.0 x1

1

Širina (mm)

243.84 mm, 272 mm

Visina (mm)

243.84 mm, 70 mm

CPU Max. količina

1

Max. kapacitet memorije

256 GB

Količina utora

4

Značajke memorije

Two DDR Channels, Unbuffered, Dual Rank, Single Rank, XMP, AMD EXPO

Audio standard

HD audio, Audio Boost 5

Podržana brzina

5 Gbps

Jamstvo u Hrvatskoj

Da

Jamstveni rok (mjeseci)

36 mjeseci(a)

Validacija jamstva

Serijski broj

Dužina (mm)

280 mm

Bruto težina (kg)

1.87 kg

Neto težina (kg)

1.365 kg

Bruto težina kutije (kg)

1.87 kg

Količina u kutiji

1

Vrsta pakiranja

Maloprodajno

EAN kod

4711377321150

CPU podrška

AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series

Provjera pogrešaka

Non-ECC

Integrirani audio

Da

Integrirani LAN

Da

Ugrađeni uređaji

Clear CMOS Button

Kabeli

SATA Cable, 1 to 2 EZ Conn-Cable (V1), EZ Front Panel Cable

Integriran

Storage Controller: Supports: Level 0, Level 1, PCI Express 5.0 x4 (2 x M.2), Storage Controller: Supports: Level 0, Level 1, PCI Express 4.0 x2 (1 x M.2), Storage Controller: Supports: Level 0, Level 1, Level 10, SATA III-600 (4)

Širina audio podataka

32-bit
