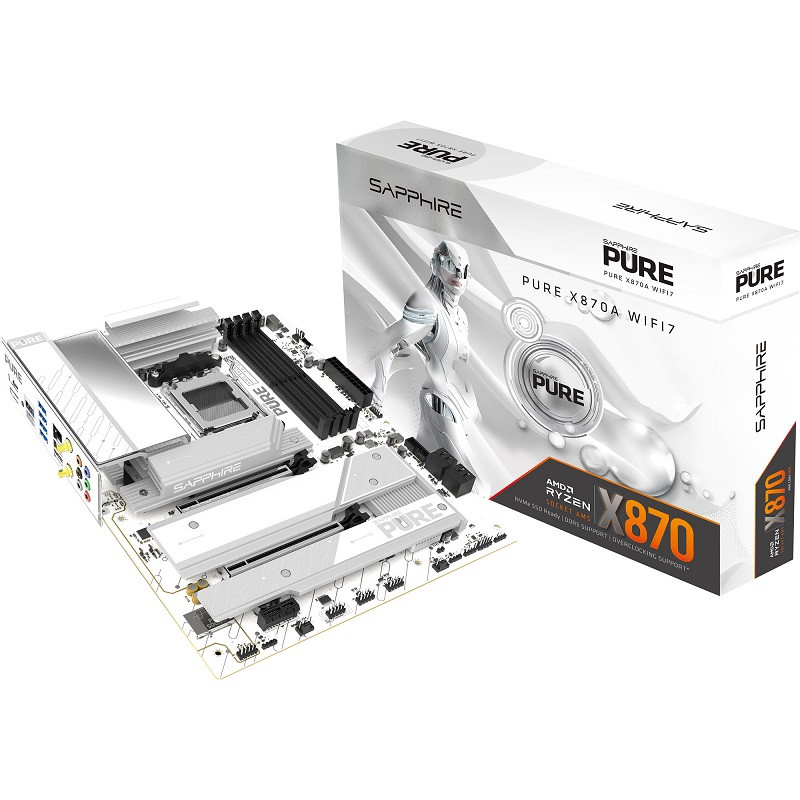

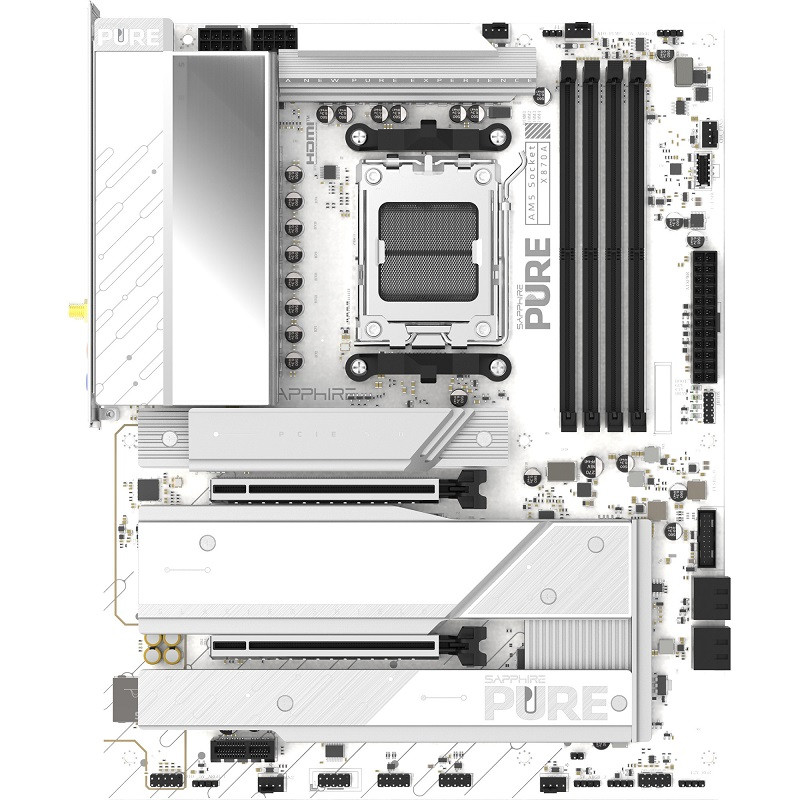

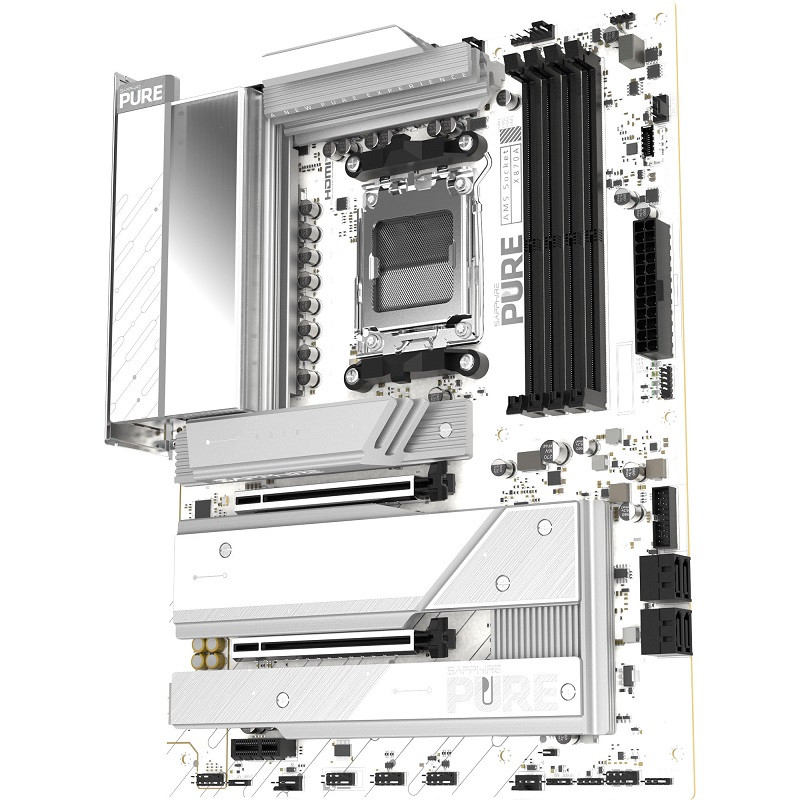

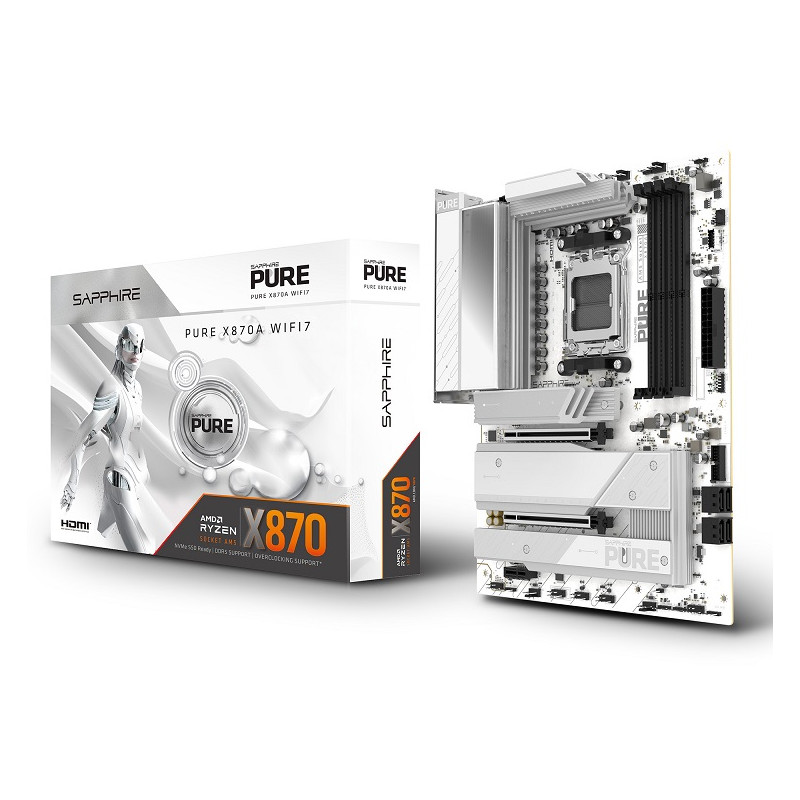

SAPPHIRE PURE X870A WIFI 7
Dobavljivo 26 kom kod dobavljača
Isporuka: 10 - 12 radnih dana
The SAPPHIRE PURE X870A WIFI 7 is based on the AMD X870 chipset and supports AMD processors for socket AM5. It features four DDR5 slots for up to 256 GB of RAM. features of the SAPPHIRE PURE X870A WIFI 7 include one PCIe 5.0 x16 slot, one PCIe 4.0 x16 slot (x4 lanes), and one PCIe 3.0 x1 slot
- Jamstvo: više informacija
Vaša prava iz zakonskog jamstva
- Odstrani ovaj proizvod iz najdražih proizvoda
- Dodaj ovaj proizvod u najdraže proizvode
- Ispis
Opis
Details
| Type | Mainboard | ||
| Color | white | ||
| EAN | 4895106296909 | ||
| Manufacturer's No. | 52122-02-40G | ||
| base | AM5 | ||
| Supported Maximum CPUs | 1 | ||
| operating system | Support | Windows 10 ready, Windows 11 ready | |
| processor | Supported models | Ryzen 5 7xxx (Raphael), Ryzen 5 7xxxX (Raphael), Ryzen 5 7xxxF (Raphael), Ryzen 5 7xxxX3D (Raphael), Ryzen 5 8xxxF (Phoenix), Ryzen 5 8xxxG (Phoenix), Ryzen 5 9xxx (Granite Ridge), Ryzen 5 9xxxX (Granite Ridge), Ryzen 5 9xxx | |
| Chipset | AMD X870 | ||
| Slots | PCIe x16 | 2x (of which: 1x PCIe x16, 1x PCIe x4) | |
| PCIe x1 | 1 | ||
| BIOS | EFI BIOS | Yeah, yeah | |
| Form factor | ATX | ||
| Use | PC | ||
| Power supply | ATX12V (24-pin + 2x 8-pin) | ||
| Memory | Maximum maximum | 256 GB | |
| Number of sockets | 4x DDR5 | ||
| Supported standards | DDR5 up to 8400 MT/s | ||
| Channels | 2 | ||
| Maximum storage ranks | 8 | ||
| Memory controller in CPU | Yeah, yeah | ||
| Maximum data density | 8192 Mbit | ||
| Connections (external) | USB-A 3.2 Gen 2 (10 Gbit/s) | 1 | |
| USB-A 3.2 Gen 1 (5 Gbit/s) | 4 | ||
| USB4 | 1 | ||
| Note: | The designation USB 3.2 Gen 1 corresponds to the earlier designations USB 3.1 Gen 1 or USB 3.0. The designation USB 3.2 Gen 2 corresponds to the earlier designations USB 3.1 Gen 2 or USB 3.1. |
||
| USB-A 2.0 | 2 | ||
| HDMI | 1 | ||
| DisplayPort-Out | 1 | ||
| Microphone | 1 | ||
| Line-In | 1 | ||
| Line-Out | 4 | ||
| RJ-45 | 1 | ||
| Bluetooth | Yeah, yeah | ||
| WLAN | Yeah, yeah | ||
| Connections (internal) | HOURS | 4 | |
| M.2 | 3 | ||
| M.2 Module Key | M | ||
| M.2 Interface | PCIe | ||
| Connections (optional) | USB 3.2 Gen 1 (5 Gbit/s) | 2 | |
| USB-C 3.2 Gen 1 (5 Gbit/s | 1 | ||
| USB 2.0 | 4 | ||
| TPM | Yeah, yeah | ||
| SATA Controller | AMD X870 | ||
| Directly usable RAID levels | 0, 1, 10 | ||
| USB Controller | AMD X870 | ||
| Onboard Graphics | The graphics ports of the motherboard can only be used when using a CPU with an integrated graphics chip. | ||
| Sound | Realtek ALC897 | ||
| AND | Realtek RTL8126G 5G LAN | ||
| WiFi 7 + Bluetooth 5.4 | |||
| Further information | To support the latest processor cores, a BIOS update may be required. | ||
| Dimensions | Width: 245 mm x Height: 305 mm | ||
| Warning and safety instructions | Warnings: Attention: Product contains a button cell or battery coin. |
||
