Specifikacije
- Storage
- 8 GB
- Networking Features
- Static Route Multiple WANs USB Cellular User Authentication PPPoE VLAN Tagging Captive Portal Custom Splash Page Bandwidth Limit Traffic Load Balancing DHCP client/server/relay Dynamic DNS support
- Power Source
- PoE 802.3af/at
- System Memory
- 4GB
- 2.5 Gigabit Ethernet Port
- 4
- PoE support
- Yes
- Operation Modes
- Routed/Passthrough
- PoE Ports
- 1
- I/O Interfaces
- 1 x RJ-45 console/1 x USB 3.0
- Firewall (SPI throughput)
- 4 Gbps
- VPN Throughput
- 970 Mbps
- Max. Concurrent VPN Tunnels
- 200
- Max. Concurrent VPN Users
- 250
- Max VLAN
- 96
- Firewall Features
- Stateful Packet Inspection Policy Rules Port Forwarding 1:1 NAT Allow Inbound Services
- Site-to-Site VPN
- Mesh VPN/Hub-and-Spoke
- Encryption
- 3DES, AES (256/192/128-bit)
- Authentication
- MD5, SHA1, SHA2 (256-bit)
- Key Management
- IKEv1 (x-auth, mode-config) IKEv2 (EAP, configuration payload)
- VPN Features
- Site-to-Site VPN Client VPN(IPsec/SecuPoint SSL) Policy-based VPN IPSec NAT traversal (NAT-T) Dead Peer Detection (DPD) Auto-VPN Connection Auto NAT traversal
- Multiple WANs
- Dual
- Bandwidth Limit
- Per client/Per Interface
- Traffic Load Balancing
- WAN load balancing with WRR
- Fiscalization 2.0 Article
- G46.50.21
Opis

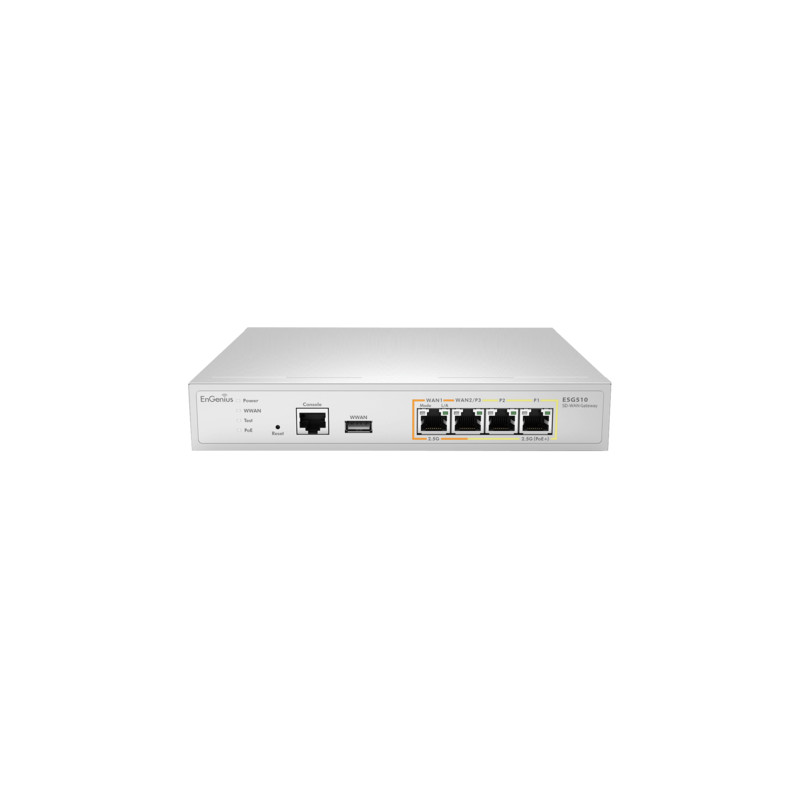

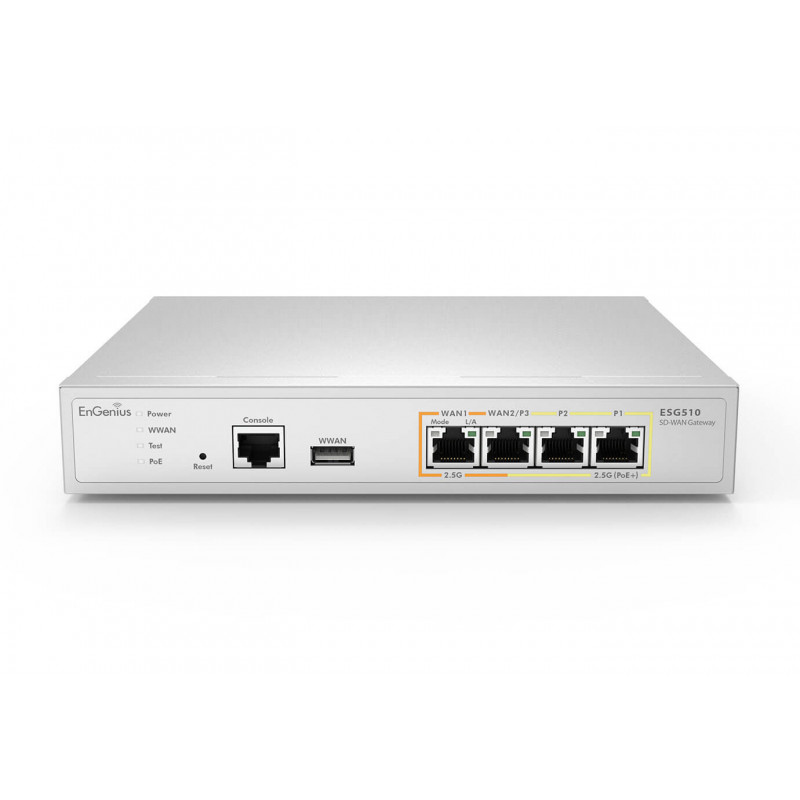

The EnGenius ESG510 Cloud SD-WAN gateway unifies your network perfectly, providing your IT team with an incredibly easy setup, enterprise-level security, and an end-to-end network solution cloud-managed from absolutely anywhere.
Simple, unified cloud management for any size business
Intuitive and centralized device visibility from anywhere
Dual 2.5 GbE WAN and Dual 2.5 GbE LAN for maximum performance
Quad-core 1.6 GHz processor for greater speed and power
Built-in load balancing and safeguards with dual-WAN and cellular failover
2.5 GbE PoE+ to power up a Wi-Fi 6E AP, IP camera or IP phone
Stateful firewall with high-efficiency filtering and inspection to enhance security
High-speed and secure site-to-site VPN and client VPN
Quick self-healing VPN and VLAN setup for faster and easier deployments
Touchless system maintenance and automatic updates
Multiple passthrough and routing options
Captive portal with external radius capabilities
