ASRock B860 Pro-A WiFi Prikaži uvećano

ASRock B860 Pro-A WiFi

90-MXBRL0-A0UAYZ

Novi proizvod

6 - 10 radnih dana

(više informacija)

The ASRock B860 Pro-A WiFi is based on the Intel® B860 chipset and supports Intel® processors for the socket 1851

Više detalja

Količina: 10 raspoloživa (kod dobavljača)

Cijena za gotovinu (uplatu na račun):

181,80 € s PDV-om

Cijena za kartice:

199,98 € s PDV-om

Okvirna cijena po ratama:
12 * 16,67 € s PDV-om
6 * 33,33 € s PDV-om
3 * 66,66 € s PDV-om

Dodaj u listu želja

  • Diners Club International
  • Discover
  • Dinacard
  • WSPay
  • Google Pay

Podaci

Utor za procesor LGA 1851 (Socket V1)

Više informacija

Details

Type Mainboard
EAN 4711581490253
Manufacturer no. 90-MXBRL0-A0UAYZ
Base 1851
Max. supported CPUs 1
Processor Supported models Core Ultra 3 2xx (Arrow Lake), Core Ultra 5 2xx (Arrow Lake), Core Ultra 5 2xxF (Arrow Lake), Core Ultra 5 2xxK (Arrow Lake), Core Ultra 5 2xxKF (Arrow Lake), Core Ultra 5 2xxT (Arrow Lake), Core Ultra 7 2xx (Arrow Lake), Core Ultra 7 2xxF (Arrow Lake), Core Ultra 7 2xxK (Arrow Lake), Core Ultra 7
Chipset Intel® B860
Slots PCIe x16 2x (thereof: 1x PCIe x16, 1x PCIe x4)
BIOS 256 Mb Flash ROM, UEFI AMI BIOS
Form factor ATX
Use PC
Power supply ATX12V (24-pin + 2x 8-pin)
Memory maximum 256 GB
Number of plinths 4x DDR5
Supported standards DDR5 - 8933 (OC.) / 6400 / 6200 / 6000 / 5800 / 5600 / 5400 / 5200 / 5000 / 4800 / 4400
Channels 2
Maximum memory storage space 8th
Memory controller in CPU Yes

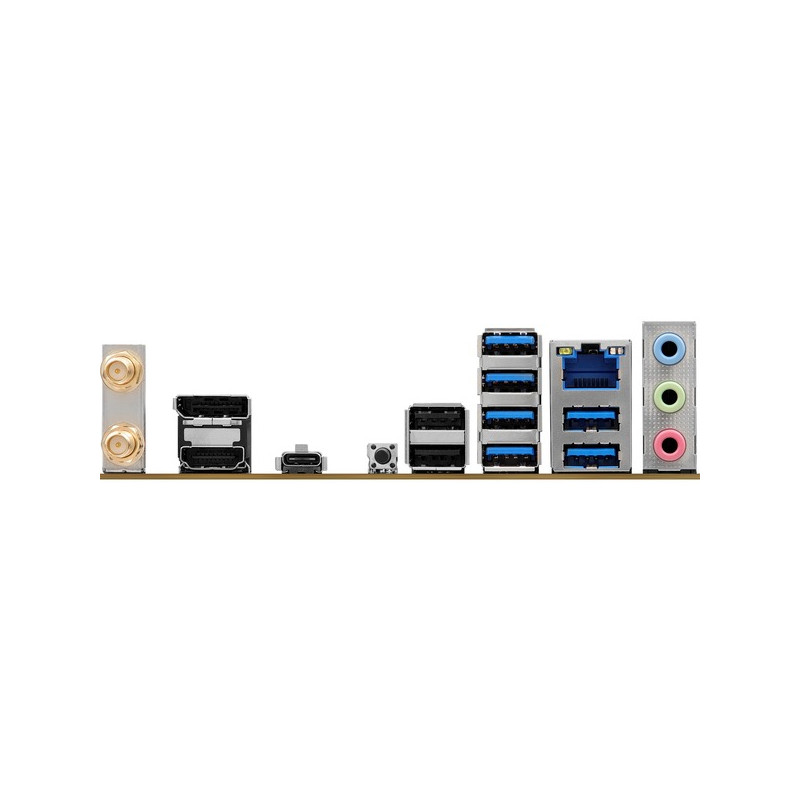

Connections (external) USB-C 3.2 Gen 2x2 (20 Gbit/s) 1
USB-A 3.2 Gen 1 (5 Gbit/s) 6 6
Note: The designation USB 3.2 Gen 1 corresponds to the earlier descriptions USB 3.1 Gen 1 or USB 3.0.
The designation USB 3.2 Gen 2 corresponds to the earlier names USB 3.1 Gen 2 respectively. USB 3.1.
USB-A 2.0 2
HDMI 1
DisplayPort-Out 1
Microphone 1
Line-out 1
S/PDIF-Out (optical) 1
RJ-45 1
Bluetooth Yes
Wi-Fi Yes
Connections (internal) SATA 4
M.2 3
M.2 Module Key M
M.2 interface PCIe
M.2 length 30 - 80 mm
RGB LED Header 1
addressable RGB LED Header 3
4-pole PWM fan 7
Connections (optional) USB 3.2 Gen 1 (5 Gbit/s) 2
USB-C 3.2 Gen 1 (5 Gbit/s 1
USB 2.0 4
TPM Yes
SATA controller Intel® B860
directly usable RAID level 0, 1, 10, 5
USB controller Intel® B860
Sound Realtek ALC897 7.1 Surround Sound
LAN Dragon RTL8125BG 2.5Gb Ethernet
802.11axe Wi-Fi 6E + Bluetooth 5.3
Further information To support the latest processor cores, a BIOS update may be required.

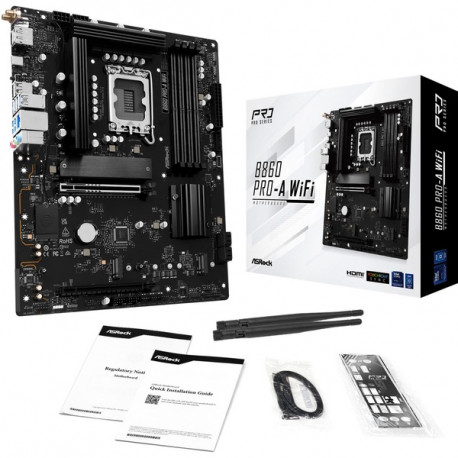

Accessories available 2 x SATA cable, 1 x I/O Shield, 2 x WiFi antennas
Warning and safety instructions Warnings:
Attention: Product contains a button cell or coin battery.

WEEE number 54978142
