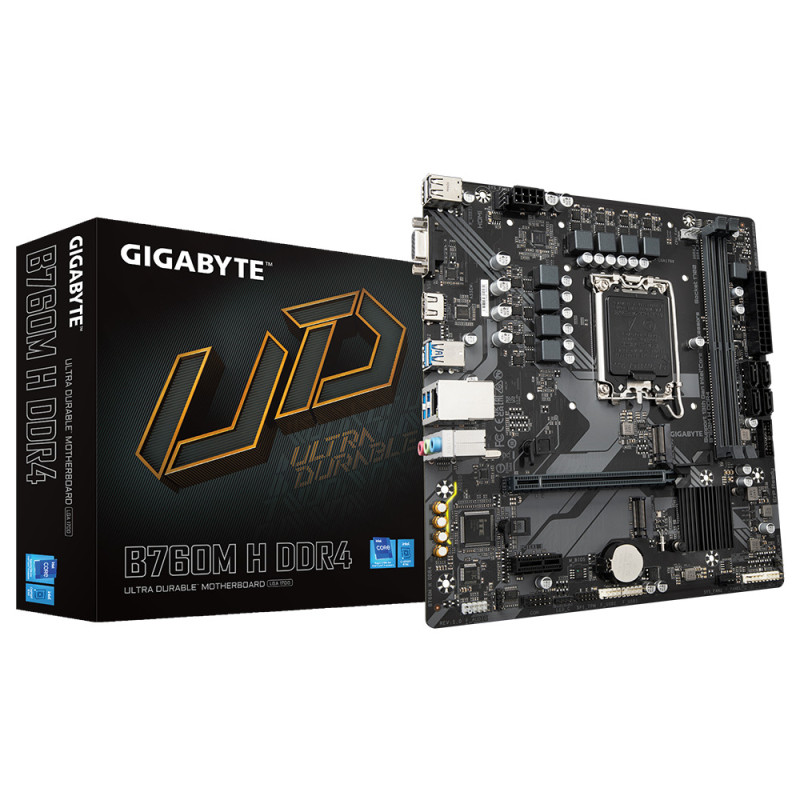

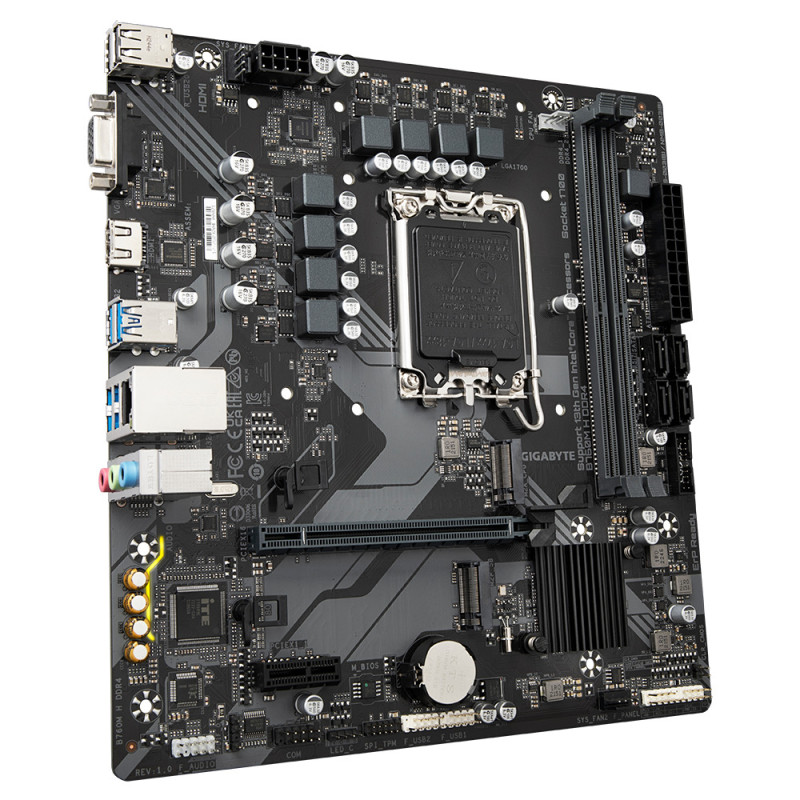

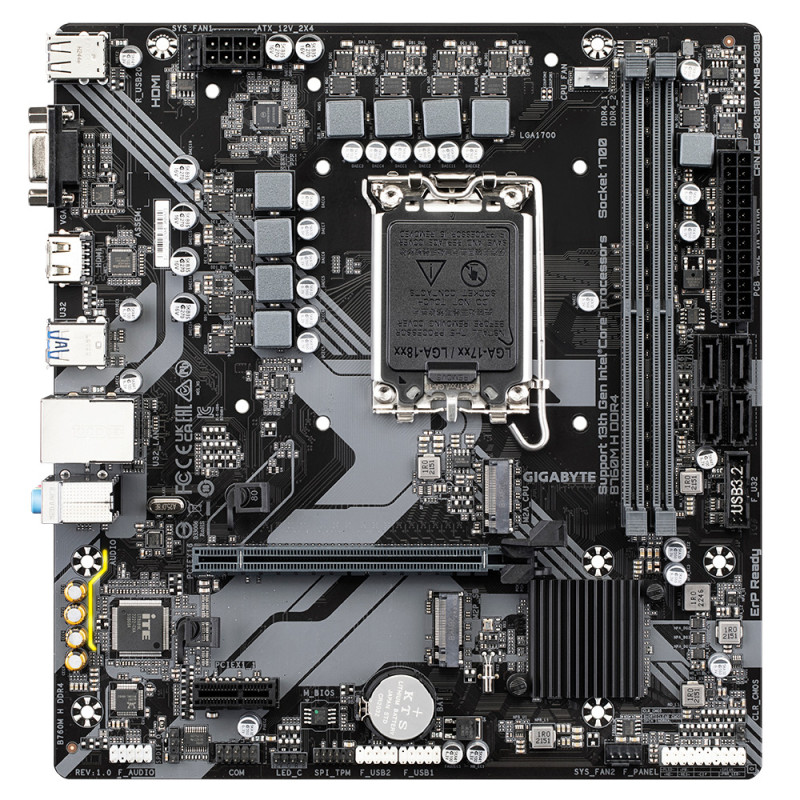

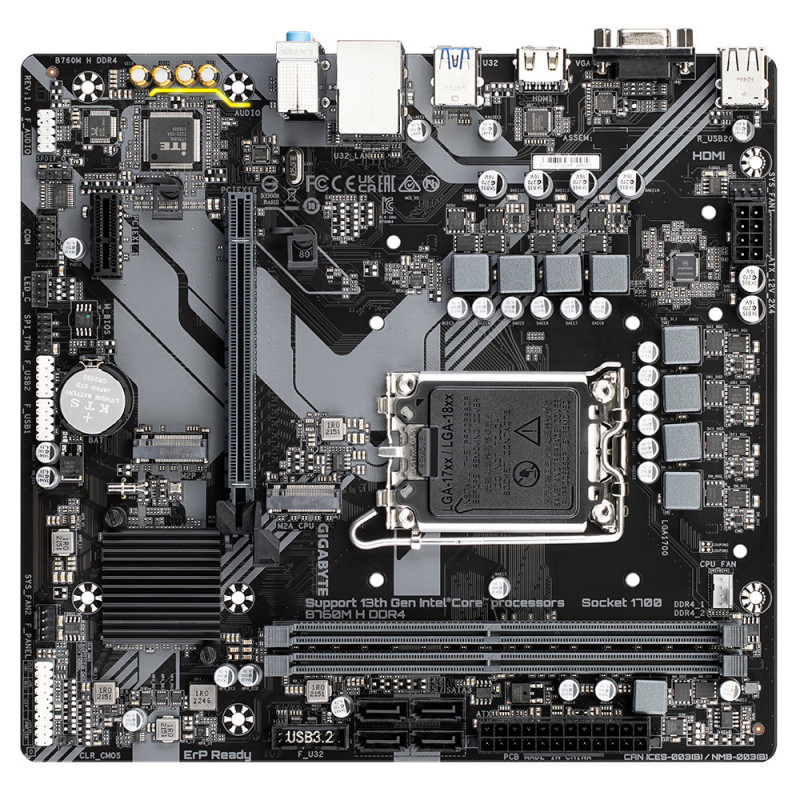

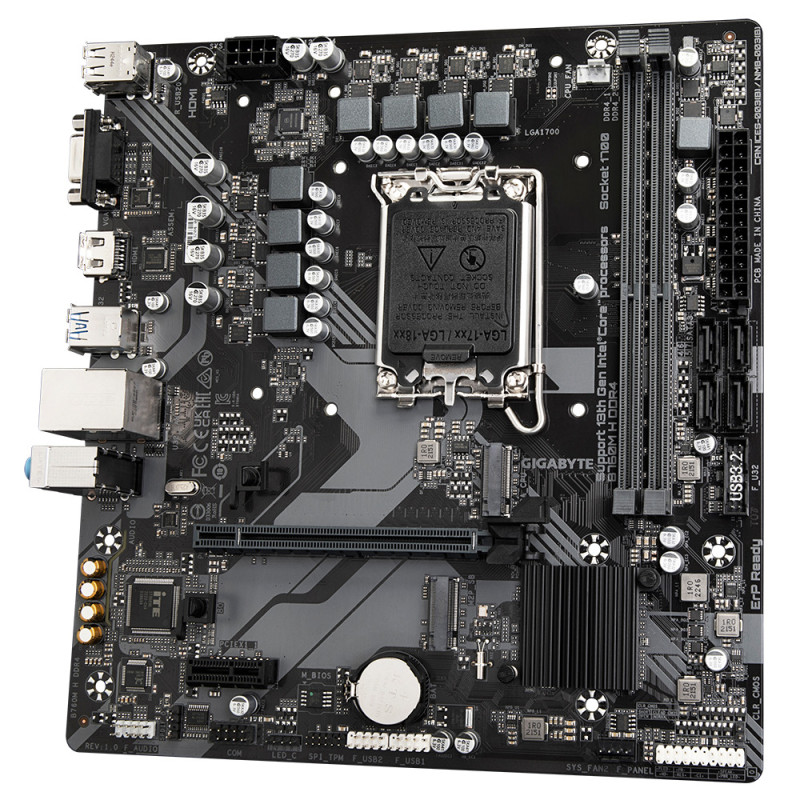

Gigabyte MB B760M H DDR4, S.1700, 2xDDR4/3200, PCIe 4.0, G-LAN, VGA/HDMI, mATX

Specifikacije
- Procesor: Intel LGA1700 (14th / 13th / 12th Gen Core™, Pentium® Gold, Celeron®)
- Čipset: Intel® B760 Express
- Memorija: 4× DDR4 DIMM, do 128 GB, dvokanalna, ECC Un-buffered (radi u non-ECC), non-ECC, XMP
- Brzina memorije: DDR4 2133 – 5333 MT/s (OC)
- Grafika: Integrirana Intel® HD Graphics (ovisno o CPU-u)
- Video izlazi: HDMI 2.1 (4096×2160@60 Hz), 2× DisplayPort 1.2 (4096×2304@60 Hz)
- Podrška za više zaslona: do 4
- Zvuk: Realtek® HD Audio, 2/4/5.1/7.1-kanalni, S/PDIF Out
- Mreža: Realtek® 2.5GbE LAN
- Utori za proširenje: 1× PCIe 4.0 x16 (CPU), 2× PCIe 3.0 x1 (Chipset)
- Pohrana: 2× M.2 (PCIe 4.0 x4/x2), 4× SATA 6 Gb/s
- RAID podrška: RAID 0 / 1 / 5 / 10 (SATA)
- USB priključci: USB Type-C (USB 3.2 Gen 2), USB 3.2 Gen 1, USB 2.0/1.1
- Interni konektori: 24-pin ATX, 8-pin ATX 12V, CPU fan, 3× system fan, RGB i ARGB, 2× M.2, 4× SATA, front panel, audio, USB 3.2 Gen 1, USB 2.0, TPM, serijski i paralelni port, S/PDIF, Q-Flash Plus, reset, Clear CMOS
- Stražnji panel: PS/2, D-Sub, HDMI, 2× DisplayPort, USB Type-C, USB 3.2 Gen 1, USB 2.0, RJ-45, audio priključci
- BIOS: AMI UEFI, 128 Mbit
- Posebne značajke: GIGABYTE Control Center, Q-Flash, Q-Flash Plus, H/W monitoring
- Softver: Norton® Internet Security (OEM), LAN bandwidth management
- Podrška za operativne sustave: Windows 10 / 11 (64-bit)
- Format: Micro ATX (24.4 × 24.4 cm)
