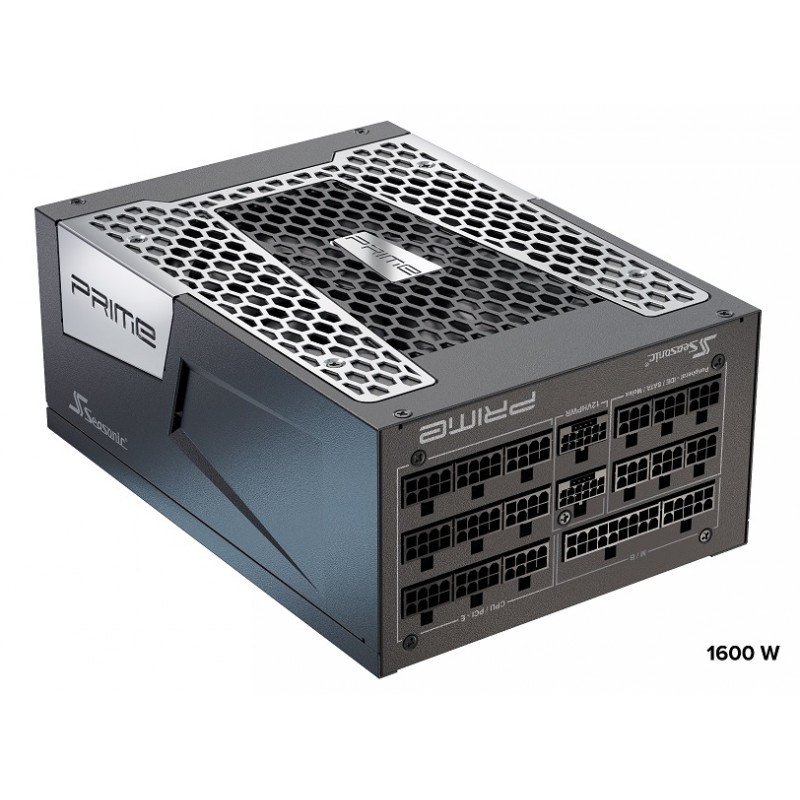

Seasonic PRIME TX-1600 1600W 80 PLUS Titanium
PRIME-TX-1600-ATX30
Novi proizvod
6 - 10 radnih dana
The Seasonic PRIME TX 3.0 Series is built on top of all the great features of PRIME TX platform with added ATX 3.0 and PCIe 5.0 compatibility
Količina: 9 raspoloživa (kod dobavljača)
- Odstrani ovaj proizvod iz najdražih proizvoda
- Dodaj ovaj proizvod u najdraže proizvode
- Ispis
Više informacija
ATX3-PRIME-TX-1600
| Technical Specifications | ||
|---|---|---|
| 80PLUS® | Titanium | |
| Cybenetics Efficiency Level | Titanium (See report) | |
| Cybenetics Noise Level | Lambda A (See report) | |
| Form Factor | Intel ATX 12 V | |
| Dimensions | 210 mm (L) x 150 mm (W) x 86 mm (H) | |
| Fan Information | Fan Size | 135 mm |
| Fan Control | Digital Hybrid Fan Control | |
| Fan Bearing | Fluid Dynamic Bearing | |
| Life Expectancy | 50,000 hours at 40 °C, 15 % - 65 % RH | |
| Cable Information | Modularity | Fully Modular |
| Cable type | Individual Black Cables with Braided Pattern | |
| Electrical Features | Operating Temperature | 0 - 50 °C |
| MTBF @ 25 °C, excl. fan | 100,000 hours | |
| AC Input | Full Range | |
| Protection | OPP, OVP, UVP, OCP, OTP, SCP | |
| Safety and Environmental | Safety and EMC | cTUVus, TUV, CB, CCC, BSMI, EAC, CE |
| Environmental Compliance | Energy Star, RoHS, WEEE, ErP Lot 6, REACH | |
| Warranty | 12 Years | |
| Power Output | ||||||
|---|---|---|---|---|---|---|
| AC Input | Voltage: 100 V - 240 V | |||||
| Current: 15 - 10 A | ||||||
| Frequency: 50 Hz - 60 Hz | ||||||
| DC Output | Rail | +3.3 V | +5 V | +12 V | -12 V | +5 VSB |
| Maximum Power | 25 A | 25 A | 133.3 A | 0.5 A | 3 A | |
| 125 W | 1600 W | 6 W | 15 W | |||
| Total Continuous Power | 1600 W 115—240Vac, 1300 W 100-240 Vac | |||||

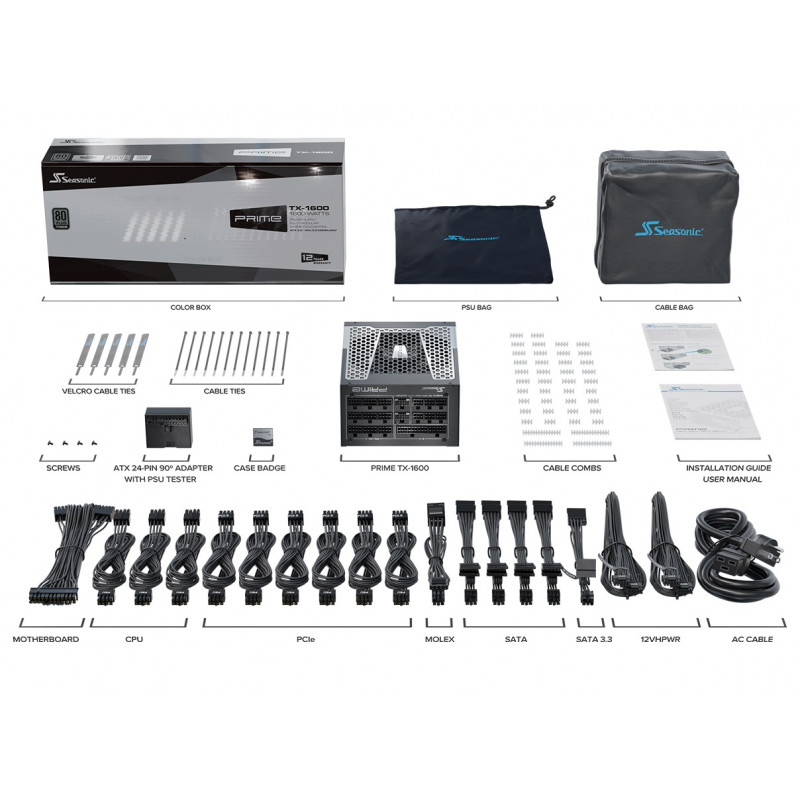

Cables
PRIME-TX-1600
| Cable type | Connector(s) per cable | Total Length (mm) | Number(s) of cable(s) included |
|---|---|---|---|
| MB (24/20 pins) | 1 | 610 | 1 |
| CPU (8/4 pins) | 1 | 700 | 3 |
| PCIe (8/6 pins) | 2 | 750 | 0 |
| PCIe (8/6 pins) | 1 | 750 | 6 |
| SATA | 4 | 950 | 4 |
| SATA | 4 | 860 | 0 |
| SATA | 4 | 760 | 0 |
| SATA 3.3 V | 2 | 550 | 1 |
| SATA | 2 | 570 | 0 |
| SATA | 2 | 470 | 0 |
| SATA | 2 | 450 | 0 |
| Molex | 3 | 690 | 1 |
| Molex | 2 | 470 | 0 |
| 12VHPWR | 1 (12+4 Pins to 12+4 Pins) | 750 | 2 |
