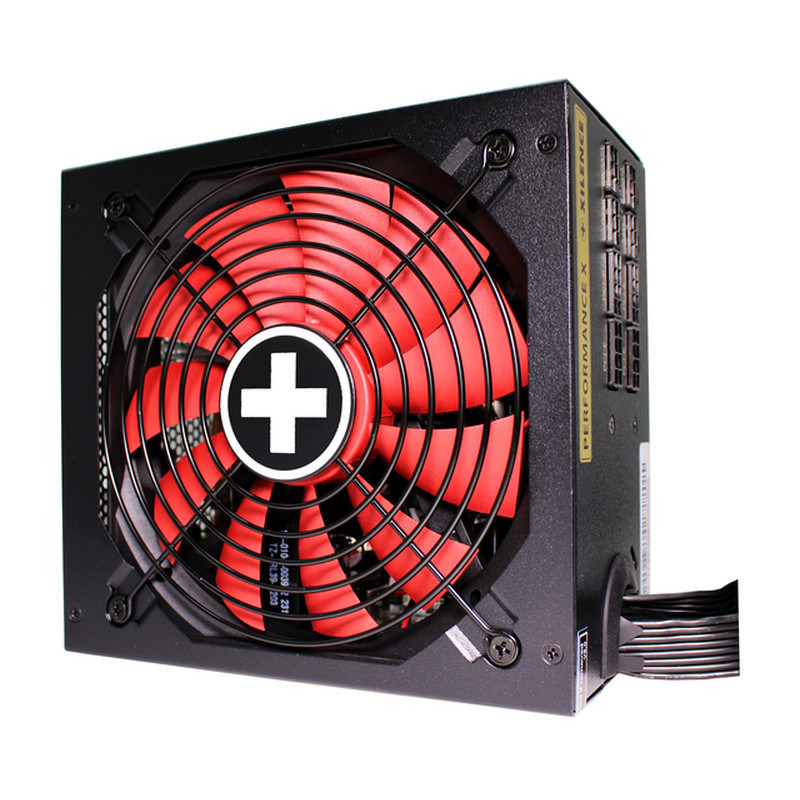

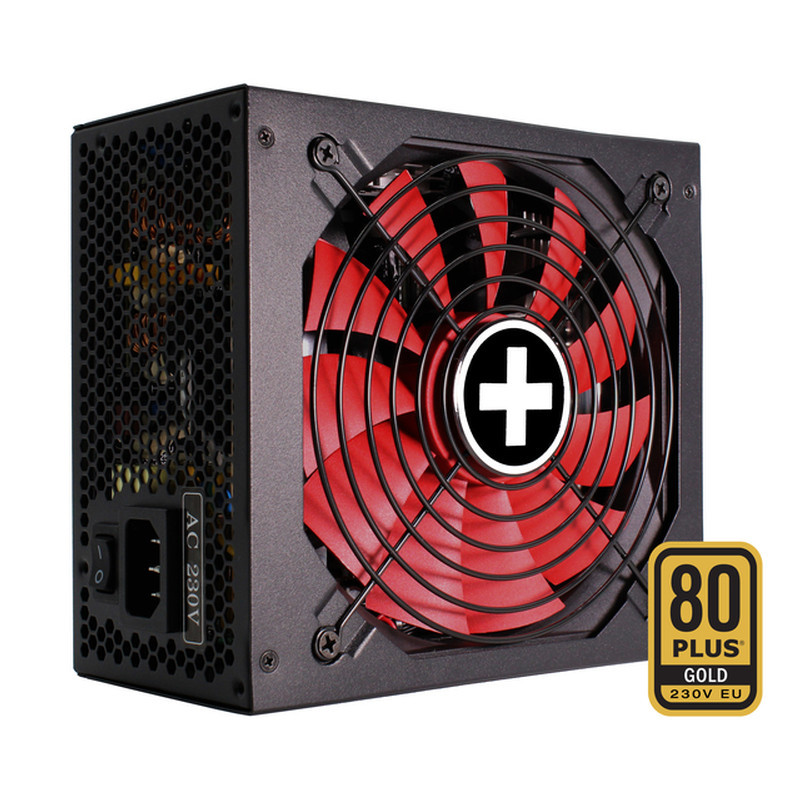

XILENCE napajanje 850W 80PLUS Gold Performance Xplus

XILENCE napajanje 850W 80PLUS Gold Performance X+

- The semi-modular power supplies of the X+ series are capable of absorbing high load peaks above the normal rated power in the shortest possible time and comply with Intel's Design Guide 3.0.

- Thus, the power supplies are ideally suited for driving the latest and most powerful gaming graphics cards with PCI Express 5 specifications

- An 80+ Gold certification confirms a high efficiency and energy efficiency of this power supply series

- Six different protection circuits (OCP, OVP, UVP, SCP, OPP, OTP) ensure safe operation even in heated gaming sessions

- The fans of the ATX 3.0 power supplies run with Fluid Dynamic Bearing technology and are very quiet

- In addition, they convince with an extremely long durability and their excellent cooling performance

- All of these specifications make the affordable Performance X+ series ideal for use with the latest gaming PC systems

Features

- 12VHPWR (PCIe Gen 5.0)

- Extremely silent cooling: large 140mm fan

- Excellent air flow design for a better heat dissipation

- Modular cable management

- Following safety design:

* OVP (Over Voltage Protection)

* UVP (Under Voltage Protection)

* OCP (Over Current Protection)

* OTP (Over Temperature Portection)

* SCP (Short Circuit Protection)

* OLP (Over Load Protection

- Low stand-by consumption

- High energy efficiency: 80+ GOLD and EcoPSU certified (complies with ErP2014 norm)

- Active-PFC

Technical data

GENERAL

- Form factor ATX 12V: Version 3.0

- Model: Performance X+ | XP850MR9.2

- PFC: Active

OUTPUT

* +3.3V: 20.0A

* +5V: 20.0A

* +12V1: 70.8A

* -12V: 0.3A

* +5Vsb: 3.0A

FAN / COOLING TECHNOLOGY

- Fan Size: 140 mm

PROTECTION

- OCP (over current protection)

- OVP (over voltage protection)

- UVP (under voltage protection)

- SCP (short circuit protection)

- OTP (over temperature protection)

- OPP (over power protection)





ECO / EFFICIENCY

- Efficiency (%) at 230V, 20% load: 92%

- Efficiency (%) at 230V, 50% load: 93%

- Efficiency (%) at 230V, 100% load: 92%

ENVIRONMENTAL

- ErP, WEEE, RoHS

CABLE MANAGEMENT / CONNECTORS

- Modular cable management: Yes

- Cable length to mainboard: 650 mm

- Cable length to first connector: 500 mm

- Maximum cable length: 950 mm

- Sleeved cables: Yes

- ATX-Motherboard (20+4-pin): 1

- P4+4 (CPU): 1

- P8 (CPU): 1

- PCI-E 6+2-pin (GPU): 3

- SATA 15-pin (HDD, Drives): 6
