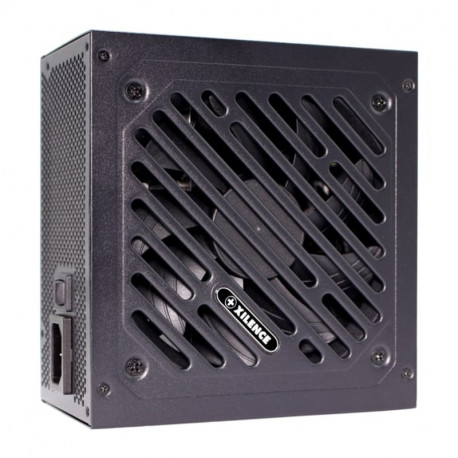

XILENCE napajanje 850W 80PLUS Gold Gaming

XILENCE napajanje 850W 80PLUS Gold Gaming

- Whisper-quiet cooling: Large 120mm fan*

- Excellent airflow design for improved heat dissipation

- With the following safety equipment:

* OVP (overvoltage protection)

* UVP (Undervoltage Protection)

* SCP (short circuit protection)

* OLP (overload protection)

* OTP (over temperature protection)

* OCP (overcurrent protection)

- Low standby power consumption

- High energy

Technical data

- Continuous power (W): 850

- Form factor ATX 12V: Version 2.52

- Voltage (Vac): 200-240V

- Mode: Gaming | XP850R12

- Frequency (Hz): 50Hz-60Hz

- Input current (A) 6.3

- PFC: active

Output

* +3.3V (A): 20A

* +5V (A): 20A

* +12V1 (A): 70.8

* -12V (A): 0.3A

* +5Vsb (A): 3A

* Max. combined power 12V (W): 850

* Max. combined power 3.3V + 5V (W): 100

* +12V2 (A): -

Fan / Cooling technology

- Bearing technology: Hydro Bearing

- Fan size (mm): 120

Protection

- OCP (over current protection): yes

- OVP (over voltage protection): yes

- UVP (under voltage protection): yes

- SCP (short circuit protection): yes

- OTP (over temperature protection): yes

- OPP (over power protection): yes

Eco / Efficiency

- 80PLUS certification: meet 80+ Gold

- Efficiency (%) at 230V, 20% load: 90

- Efficiency (%) at 230V, 50% load: 93

- Efficiency (%) at 230V, 100% load: 92

Environmental directives

- ErP: yes

- WEEE: yes

- RoHS: yes

Cable management / Connectors

- Modular cable management: -

- Cable length to mainboard (mm): 55

- Cable length to first connector (mm): -

- Maximum cable length (mm): -

- Sleeved cables: yes

- No. of cables: -

- ATX-Motherboard (20+4-pin): 1

- P4+4 (CPU): 1

- P8 (CPU): 1

- PCI-E 6-pin (GPU): -

- PCI-E 6+2-pin (GPU): 3

- PATA 4-pin: -

- SATA 15-pin (HDD, Drives): 6

- FDD (Floppy): -
