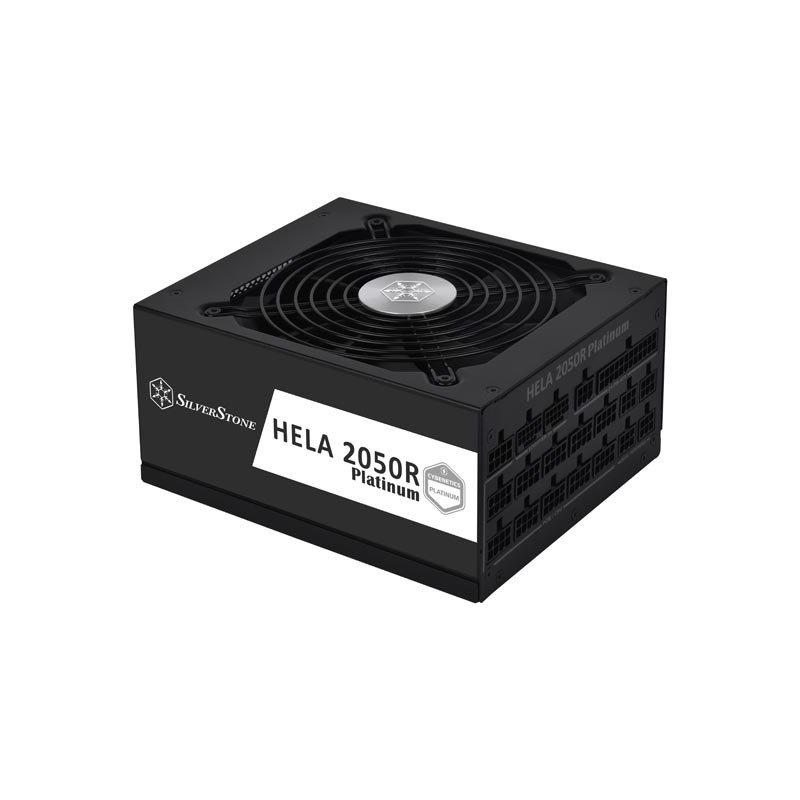

SilverStone HELA 2050R Cybenetics Platinum 2050W ATX 3.0/ATX 3.1 & PCIe 5
SST-HA2050R-PM
Novi proizvod
6 - 10 radnih dana
Supports 12VHPWR/12V-2x6 PCIe connector with ATX 3.0 / ATX 3.1 and PCIe Gen 5 standard
Količina: 2 raspoloživa (kod dobavljača)
- Odstrani ovaj proizvod iz najdražih proizvoda
- Dodaj ovaj proizvod u najdraže proizvode
- Ispis
Više informacija
Product Specifications
Product No.
SST-HA2050R-PM
Model (safety certification)
SST-AX2050MCPT-C
Color
Black (lead-free paint)
Max. DC Output
2050W
Power density
882W/L
Load Range
| Output | +3.3V | +5V | +12V | +5VSB | -12V |
|---|---|---|---|---|---|
| Max.(Amps) | 25A | 22A | 170A | 3.0A | 0.3A |
| Min.(Amps) | 0A | 0A | 0A | 0A | 0A |
| Range (%) | ±3% | ±3% | ±3% | ±5% | ±5% |
| Line Reg.(%) | ±1% | ±1% | ±1% | ±1% | ±1% |
| Ripple(mVp-p) | 30mV | 30mV | 60mV | 30mV | 60mV |
Combined +3.3V & +5V
120W
Combined +12V
2040W
Input Voltage
2050W: 200~240 Vrms
1650W: 103 ~ 264 Vrms
1350W: 90~264 Vrms
1650W: 103 ~ 264 Vrms
1350W: 90~264 Vrms
Input Frequency Range
47Hz ~ 63Hz
PFC
Active PFC（PF>0.95 at full load）
Efficiency
89% ~ 91% overall efficiency
MTBF
100,000 hours
Operating temperature
0°C ~ 50°C
Protection
Over Current Protection
Over Power Protection
Over Voltage Protection
Short Circuit Protection
Over Temperature Protection
Over Power Protection
Over Voltage Protection
Short Circuit Protection
Over Temperature Protection

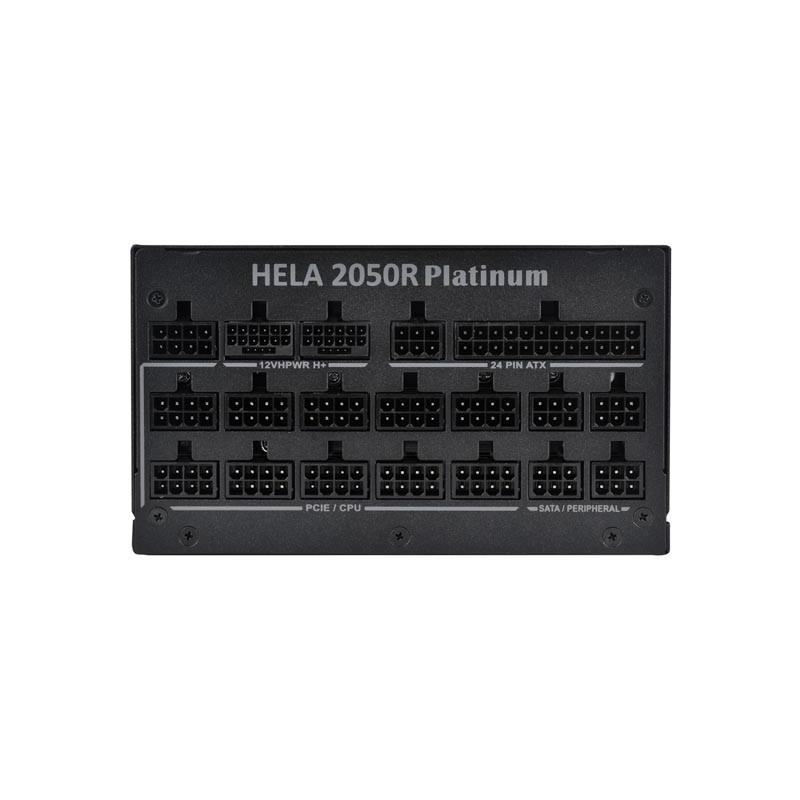

Connectors
1 x 24 / 20-Pin motherboard connector
2 x 8 / 4-Pin EPS / ATX 12V connector
14 x 8 / 6-Pin PCIe connectors
3 x 12+4-Pin 12VHPWR/12V-2x6 connector
12 x SATA connector
3 x 4-Pin Peripheral connector
1 x 4-Pin Floppy adapter connector
2 x 8 / 4-Pin EPS / ATX 12V connector
14 x 8 / 6-Pin PCIe connectors
3 x 12+4-Pin 12VHPWR/12V-2x6 connector
12 x SATA connector
3 x 4-Pin Peripheral connector
1 x 4-Pin Floppy adapter connector
Cooling System
135mm dual-ball bearing fan
Noise Level
0 dBA minimum
Certification
Cybenetics Platinum
Form factor
ATX (PS2)
Dimension
150mm (W) x 86mm (H) x 180mm (D)
5.91" (W) x 3.39" (H) x 7.09" (D)
5.91" (W) x 3.39" (H) x 7.09" (D)
Weight
4.34 kg
Other

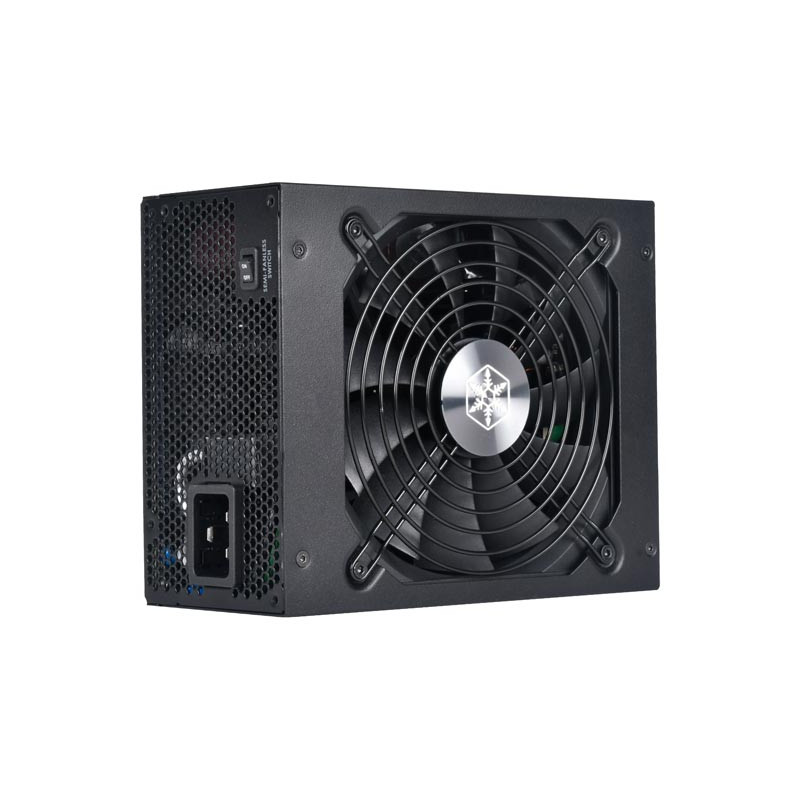

Switch on rear side to activate / de-activate semi-fanless mode
