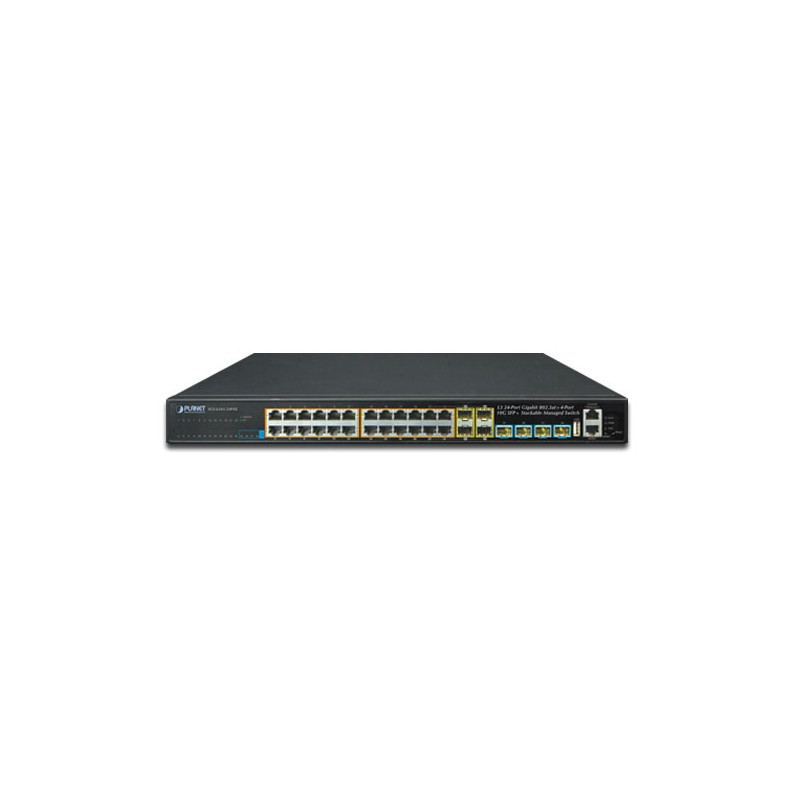

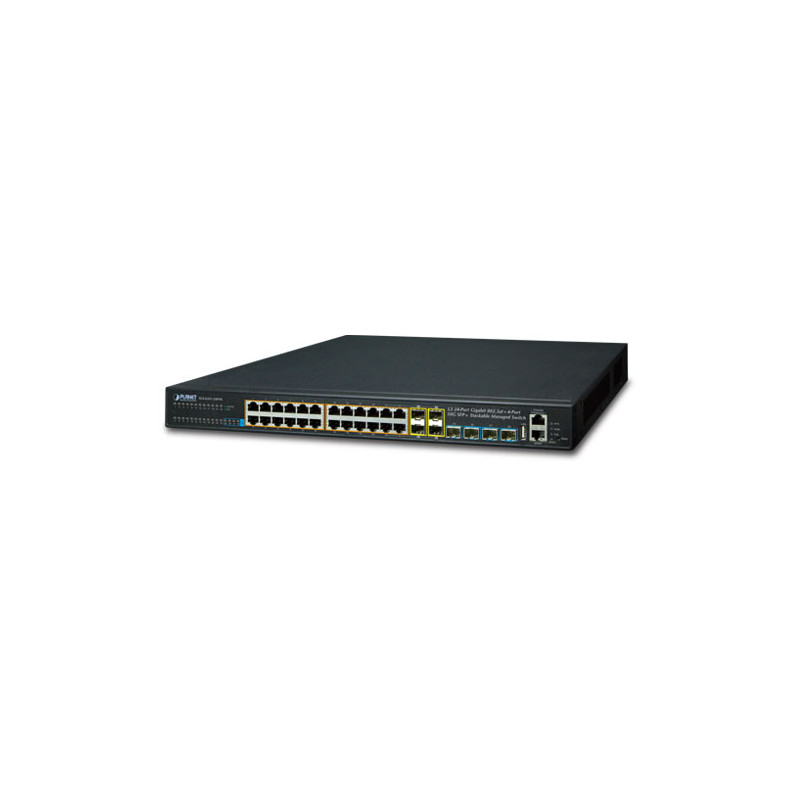

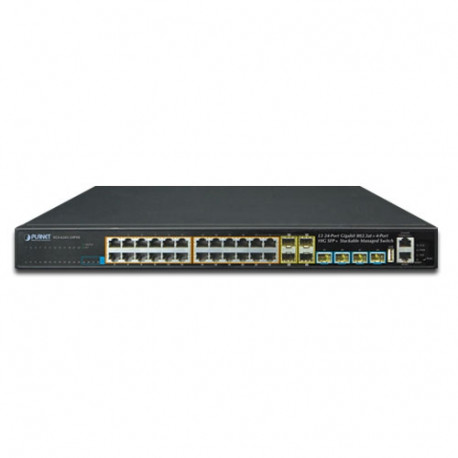

PLANET Layer 3 24-Port 10/100/1000T 802.3at PoE with 4-port shared 100/1000X SFP + 4-Port 10G SFP+ Stackable Managed Gigabit

Osnovno
- 24× Gigabit RJ45 portova
- 4× SFP (1G) combo portova
- 4× SFP+ (10G) portova
- Switch fabric: 128 Gbps, throughput: 95,23 Mpps
- MAC tablica: 16K, buffer: 1,5 MB
- Jumbo frame: 10 KB

PoE
- IEEE 802.3af/at (PoE+)
- Ukupni PoE budžet: 370 W
- Max po portu: 30,8 W
- Napajanje: AC 100–240V, potrošnja do 401,7 W

Upravljanje
- Console, Web, Telnet, SSH, SNMP v1/v2c/v3
- IPv4/IPv6 podrška
- RADIUS, TACACS+, 802.1X autentifikacija
- ACL, Syslog, DHCP server

Mrežne funkcije
- L3 routing: Static, RIP, OSPF, BGP, PBR
- WLAN: 802.1Q, Q-in-Q, do 256 VLAN-ova
- Link aggregation: 802.3ad (do 8 portova/grupa)
- QoS: 8 prioriteta, CoS/DSCP
- Multicast: IGMP/MLD snooping, MVR

Ostalo
- Dimenzije: 440×320×43,6 mm (1U)
- Težina: ~4,5 kg
- Radna temp.: 0–50 °C
- Certifikati: FCC Class A, CE
