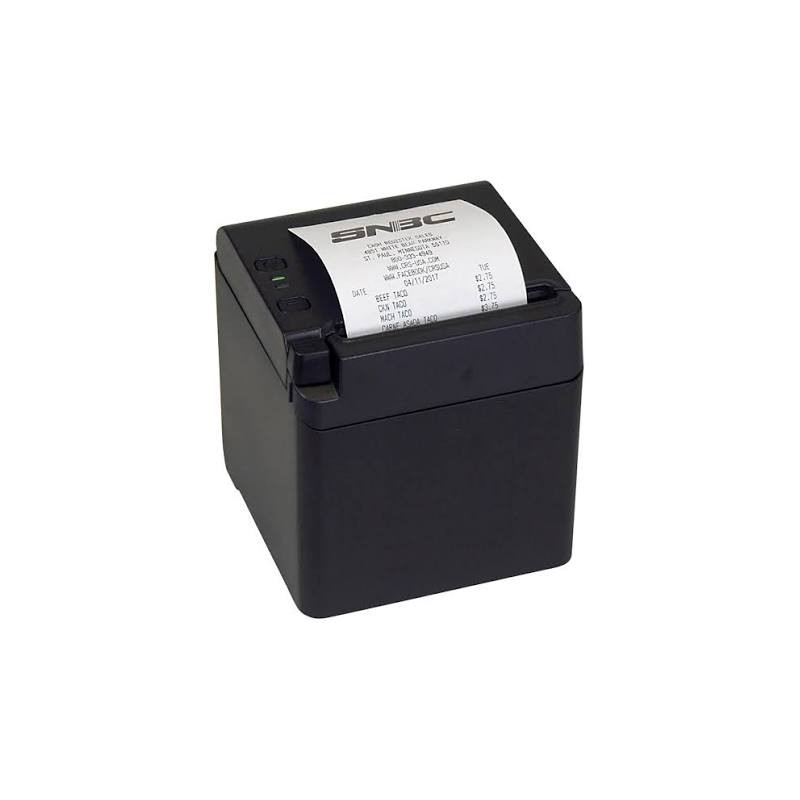

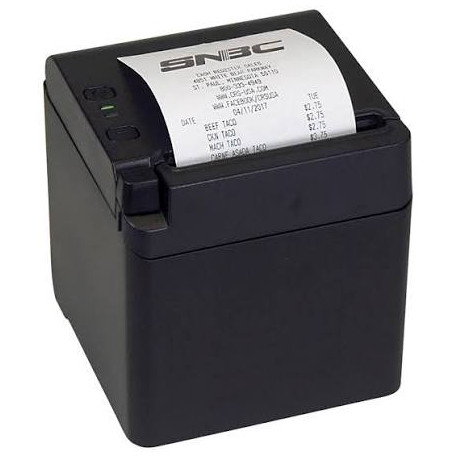

POS PRINTER SNBC BTP-S80, crni, USB+Serial+Lan

The SNBC BTP-S80 is a compact direct thermal POS printer designed for fast receipt printing in retail, hospitality and other point-of-sale environments. Its print speed of up to 250 mm/s, automatic cutter and selectable top or front paper output provide flexible installation at different checkout locations. The offered configuration features USB, RS-232 serial and Ethernet connectivity for integration with POS systems and local networks.

Specifications:

Printing method: direct thermal printing
Resolution: 203 × 203 dpi or 203 × 180 dpi, depending on configuration
Maximum print speed: 250 mm/s
Maximum print width: 80 mm
Paper widths: 57.5 mm, 80 mm or 82.5 mm
Paper thickness: 0.06–0.10 mm
Maximum roll diameter: 83 mm
Paper type: continuous thermal paper or marked paper
Paper output: top or front output
Paper cutting: full cut, partial cut or manual tear-off
Memory: 4 MB Flash and 2 MB SDRAM
Command system: ESC/POS compatible

Interfaces of the offered configuration:

1 × USB 2.0
1 × RS-232 serial port
1 × 10/100BASE-T Ethernet port
Cash drawer control for one or two cash drawers

Supported one-dimensional barcodes: UPC-A, UPC-E, EAN-8, EAN-13, Code 39, Code 93, Code 128, ITF and Codabar
Supported two-dimensional codes: QR, PDF417, MaxiCode and GS1 DataBar
Drivers: Windows, macOS and Linux
Sensors: paper end, cover opening, cutter position, printhead overheating, printhead voltage and black mark
Power input: 100–240 V AC, 50/60 Hz
Power output: 24 V DC, 2 A
Printhead life: 150 km
Cutter life: 2,000,000 cuts
Dimensions: 127 × 127 × 134 mm
Weight: approximately 1.1 kg
Colour: black
Certifications: CE and other certifications listed for the BTP-S80 model

Internal reference: 10POS953
Model: BTP-S80
