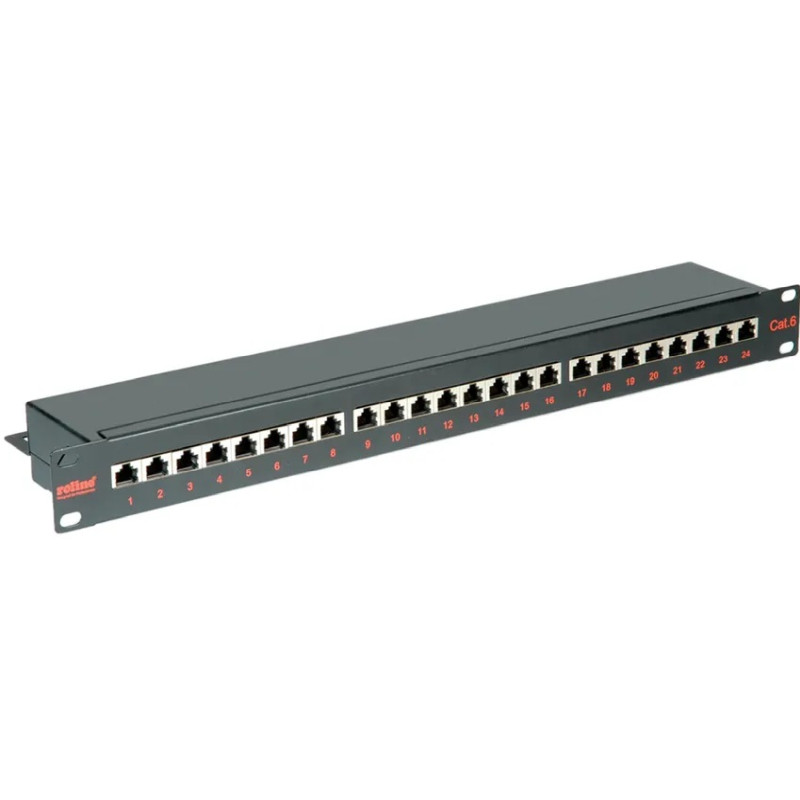

Roline Cat.6/Class E 19" Patch Panel 24-porta STP, crni

Description:

The ROLINE Cat.6/Class E 19" patch panel fulfils the Cat.6/Class E Permanent Link Standard and is ideal for Gigabit Ethernet networks
Cable assembly takes place using LSA-plus piercing terminals with colour coding on the top in accordance with EIA/TIA 568
Sheet steel housing and cover
24 ports
Colour: Black

For a structured cabling system we recommend to use the following components:
ROLINE Cat.6 S/FTP Cable, Solid Wire, AWG23: 21.15.0890 (100 m), 21.15.0891 (300 m)
ROLINE Cat.6 Flush Mount Wall Jack, shielded: 25.16.8492 (white), 25.16.8493 (ivory)
ROLINE Cat.6 Surface Mount Wall Jack, shielded: 25.16.8392 (white), 25.16.8393 (ivory)
ROLINE Cat.6 19" Patch Panel, 24 Ports, shielded: 26.11.0351 (light grey), 26.11.0361 (black)
ROLINE Cat.6 S/FTP Patch Cord, grey, 5 m: 21.15.0835

The accredited German laboratory GHMT has tested and certified this product combination, in a Channel of 100 meters, as being compliant to Class E specifications; certificate no. z2365b-10-E (with flush

Specifications:

Manufacturer: ROLINE
Product group: Connection technology TP
Product type: Patchpanel Cat.6 / Class E
Colour: black
Shield type: Screened
Transfer quality: Cat6 / Class E
Cabinet system: 19"-Technique
Quantity of ports: 24
Assembly cable connection: Krone LSAplus
Assignment: EIA/TIA 568A & 568B
Modular assembly: no
Material (casing): Metal
Shield contacts: Yes
separate strain relief: yes
Connection direction: Straight
Height units: 1 U
Height: 44 mm
Width: 482.6 mm
Depth: 109 mm
Weight: 1504.5 g
Height of packaging (single piece): 70 mm
Width of packaging (single piece): 150 mm
Depth of packaging (single piece): 560 mm
Package weight (single piece): 1.69 kg
