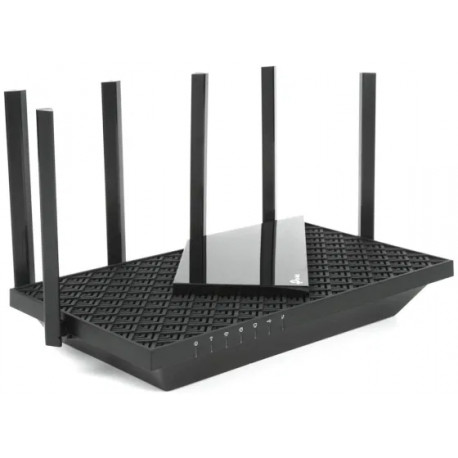

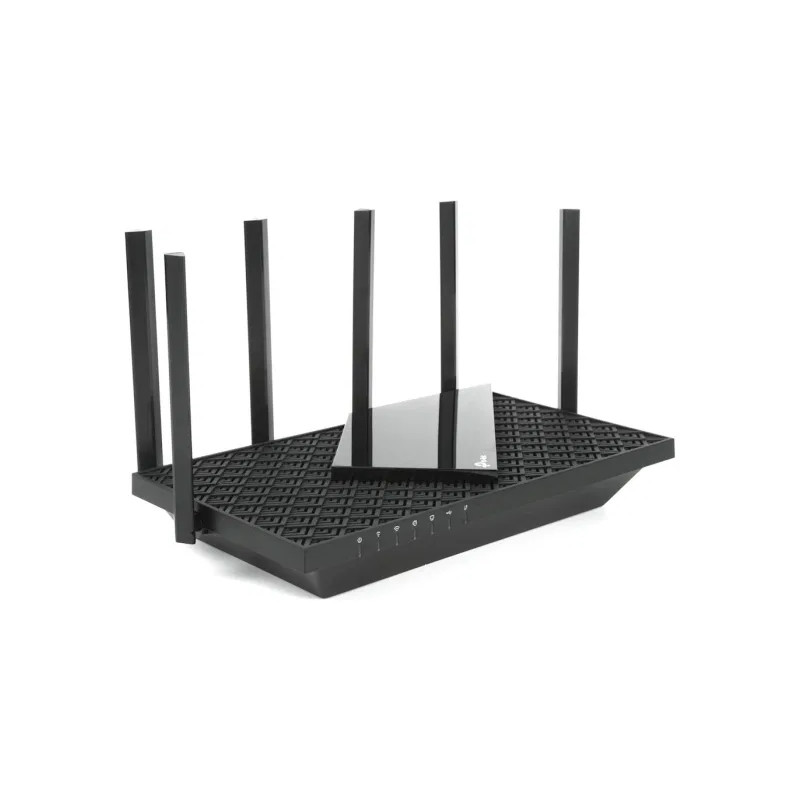

AX5400 Dual Band Wireless Gigabit Router, 1.5 GHz Tri-Core CPU, 1 GE WAN + 4 GE LAN ports, 1× USB 3.

Specifikacije

External Color

Black

Package Type

Retail

Warranty Products returnable

Yes

Warranty Term (month)

48 month(s)

Warranty validation Criteria

Serial Number

Pack Length (mm)

415 mm

Pack Width (mm)

265 mm

Pack Height (mm)

90 mm

Pack Weight Brutto (kg)

1.49 kg

Pieces in pack

1

Box Length (mm)

550 mm

Box Width (mm)

380 mm

Box Height (mm)

435 mm

Box Weight Brutto (kg)

13.12 kg

Packs in Box

8

Included Accessories

Power Adapter, Quick Start Guide

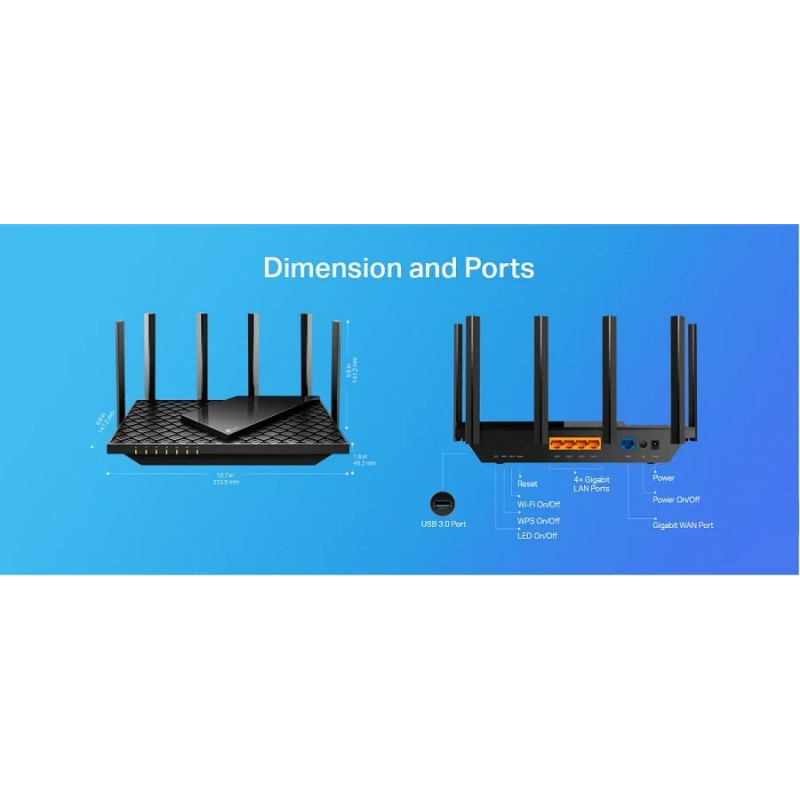

Depth (mm)

147.2 mm

Height (mm)

49.2 mm

Width (mm)

272.5 mm

Device Location

External

Retail Packaging Net Weight Carton

0.83 kg

Retail Packaging Net Weight Plastic

0.83 kg

CPU Core Quantity

3

Internal Clock Rate

1.5 GHz

LAN

4 x Gigabit Ethernet/Fast Ethernet/Ethernet (10Base-T/100Base-TX/1000Base-T, up to 1 Gbps), 4 (RJ-45)

Built-in Devices

Reset Button, WPS Button

Cable Included

LAN Cable

Power Device Location

External

Pack Weight Netto (kg)

0.66 kg

Certifications

FCC, CE, RoHS

Maximum Operating Ambient Temperature

40 °C

Minimum Operating Ambient Temperature

0 °C

Maximum Operating Humidity

90 %

Minimum Operating Humidity

10 %

Encryption Algorithm

WPA, WPA2, WPA3

Antenna

External

WAN

1 (RJ-45)

USB 3.0

1 (USB 3.0 (type A))

Network Device Type

Router/Range Extender/Access Point

Data Link Protocol Supports (New)

Wi-Fi + LAN

External Connection Type

1 x WAN (up to 1 Gbps)

Supported Networking Compliant Standards

IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n Wi-Fi 4, IEEE 802.11ac Wi-Fi 5, IEEE 802.11ax Wi-Fi 6

Router Features

Web Interface, Dual Band, Beamforming Technology, DHCP Server, 4x4 MIMO, 4T4R Mode, Airtime Fairness

Wireless LAN Antenna Quantity

6

Line Modulation Type

1024QAM, OFDMA

External Device Support

Media Server, FTP Server

Wireless Networking

IEEE 802.11ax/ac/n/a 5 GHz, up to 4804 Mbps, IEEE 802.11ax/n/b/g 2.4 GHz, up to 575 Mbps

Protocols (OSI Model)

PPPoE, IPv4, IPv6, IGMP, L2TP, PPTP, QoS

Application Layer

DHCP, DDNS, UPnP

Firewall Functions and Protocols

SPI (Stateful Packet Inspection), DMZ Support, DoS Attack Protection

Status LED Indicators

Activity Status
